DIN modulární skříňka

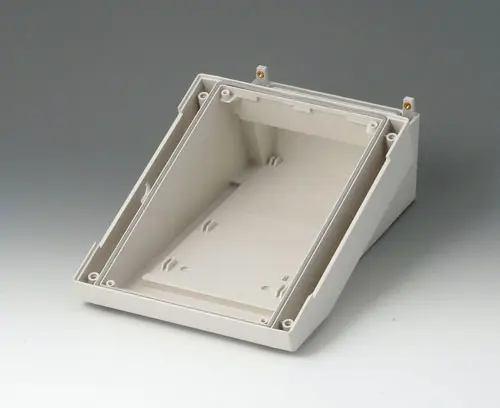

B4016317
DATEC-TERMINAL M, Vers. III
Basic enclosure with terminal compartment. Ergonomically inclined operating area can be used with a cover and the MH front panel, separate articles.

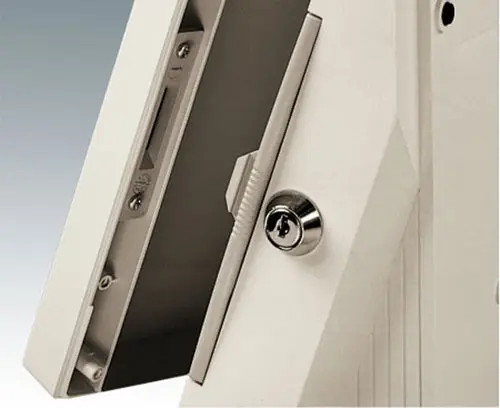

Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the keylock prevent unauthorised access to the operating and display elements. When the enclosure is opened, a hinge secures the cover and allows good accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures. All locks have identical keys.
Suitable for the installation of Eurocards 100 x 160 mm.
Machined for assembly of hinge, quick-action lock and keylock
Supply1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge, quick-action lock and keylock
Generovat PDF pro B4016317
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Accessory to complete

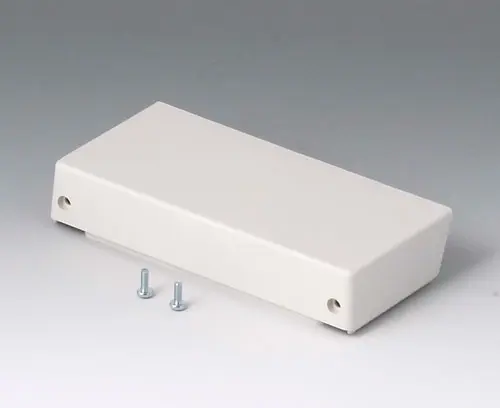

B4016417
Supply 1 lid, 2 screws M3
B4016417
Lid M closed, flatoff-white RAL 9002
134x62x24mm
B4016457
Supply 1 lid, 2 screws M3

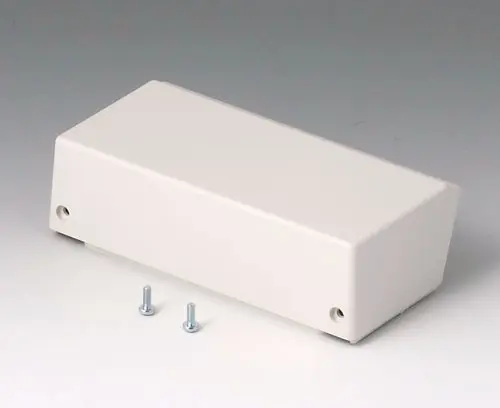

B4016457
Lid M closed, highoff-white RAL 9002
134x67x38mm

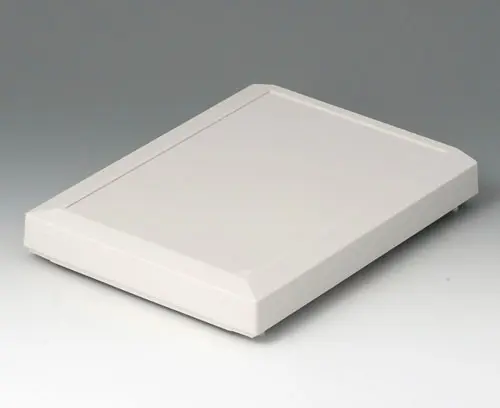

B4016617
Supply 1 cover, assembly kit
B4016617
Cover M, flatoff-white RAL 9002
168x220x29mm

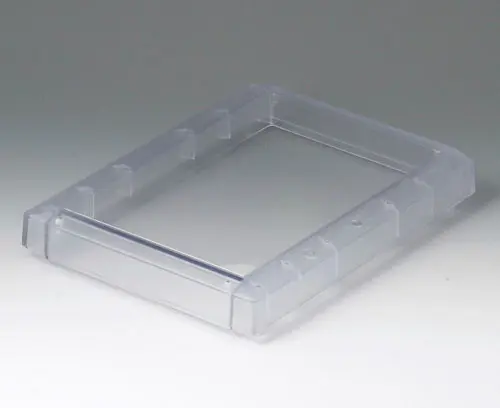

B4016621
Supply 1 cover, assembly kit
B4016621
Cover M, flattransparent
168x220x29mm
B4016631

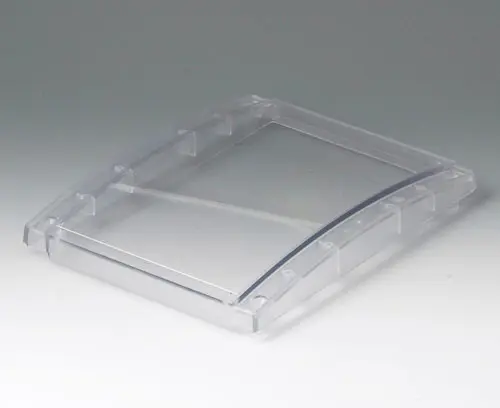

Supply 1 cover, assembly kit
B4016631
Cover M, convextransparent
168x220x29mm

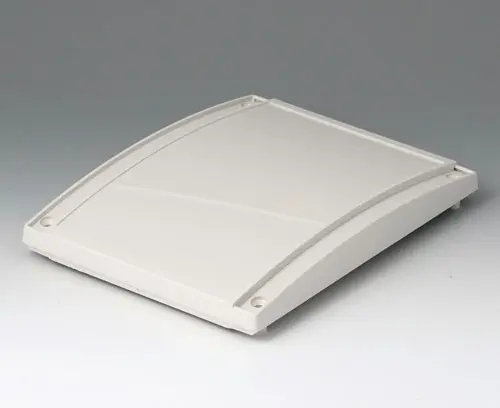

B4016637
Supply 1 cover, assembly kit
B4016637
Cover M, convexoff-white RAL 9002
168x220x29mm
B4016657

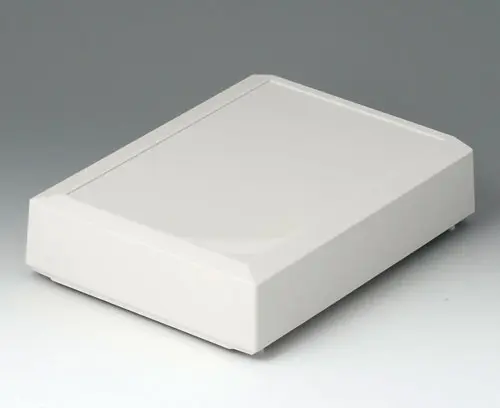

Supply 1 cover, assembly kit
B4016657
Cover M, highoff-white RAL 9002
168x220x50mm

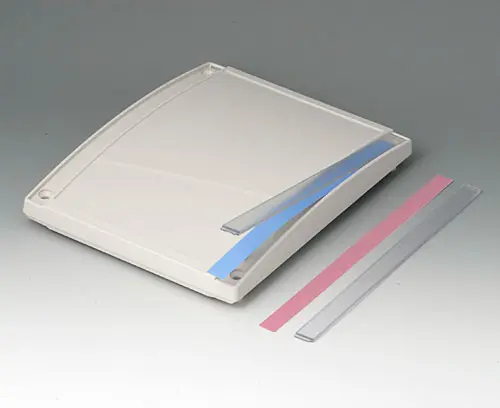

B4016671
Supply 1 cover strip
B4016671
Cover strip M / Ltransparent

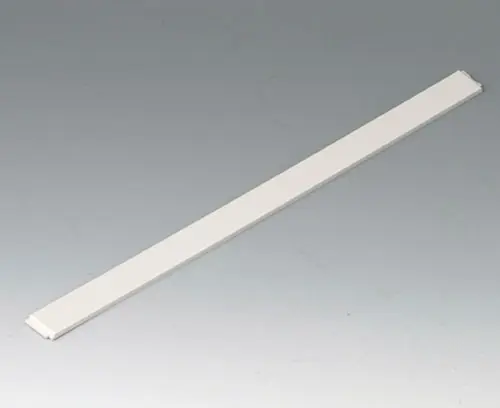

B4016677
Supply 1 cover strip
B4016677
Cover strip M / Loff-white RAL 9002

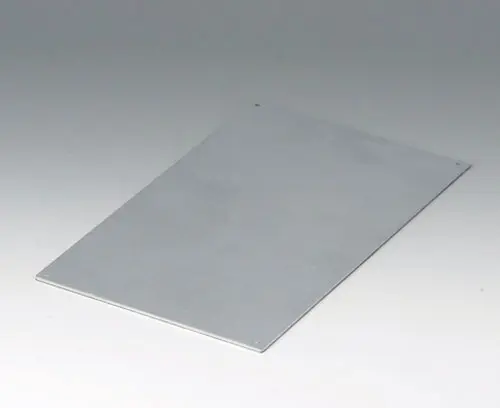

B4116116
Supply 1 front panel, 4 screws diameter 3 mm
B4116116
Front panel MHmatt anodised
128x209x2mm
Accessory "wall/holder"

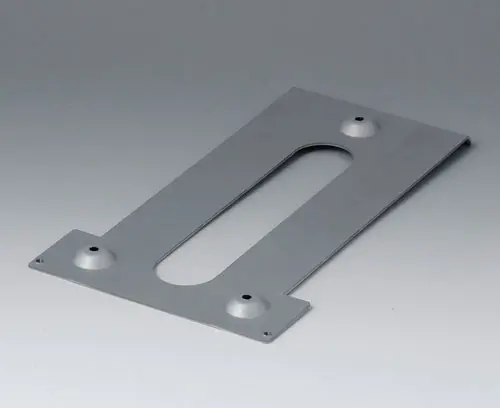

B4116147
Supply 1 wall suspension element, 2 screws M3
B4116147
Wall suspension element Mgalvanized
214x126x12mm
Necessary accessories: cover / cover convex and closed lid
