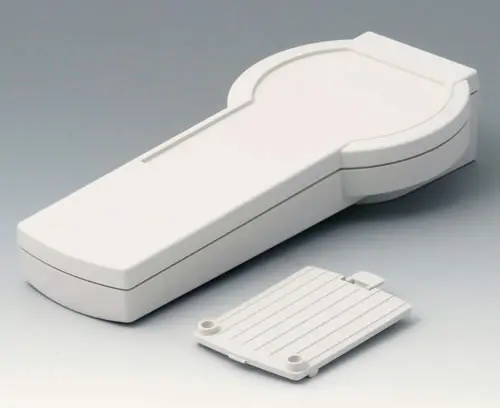

DATEC-CONTROL XS, Vers. I
Hand-Held Case for variable use with specially manageable operation and display area, for display and graphic modules. Recesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down (battery compartment as accessory).
VersionWith closed operating area, recess: 1.6 mm deep
SupplyTop and base part, battery compartment lid, assembly kit
2D PDF Zobrazení
3D PDF Zobrazení
3D/2D ke stažení
3D/2D ke stažení
Generovat PDF pro A9076107
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Přidat do košíku
Accessory "battery"
A9160003
Plug-in contact, 1 x 9 V (PP3)
Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).
Application: for a 9 V flat battery (PP3).
Supply 1 plug-in contact
A9160003
Plug-in contact, 1 x 9 V (PP3)Produkt byl přidán do Vašeho košíku.
A9176007
Set of battery clips, 2 x AA
For contacting the batteries. For secure hold of the round cells just glue the attached battery spacer into the enclosure’s battery compartment lid.
Supply 2 single contacts, 1 double contacts, 1 self-adhesive battery spacer
A9176007
Set of battery clips, 2 x AAProdukt byl přidán do Vašeho košíku.
nickel-plated
A9176008
Set of battery clips, 3 x AA
For contacting the batteries. For secure hold of the round cells just glue the attached battery spacer into the enclosure’s battery compartment lid.
Supply 1 set incl. 1 self-adhesive battery spacer
A9176008
Set of battery clips, 3 x AAProdukt byl přidán do Vašeho košíku.
nickel-plated
A9176128
Battery compartment XS, 2 x AA or 1 x 9V
Suitable for DATEC-CONTROL XS. An add-on battery compartment for 2 x 1.5 V mignon-cells (AA) or 1 x 9 V flat battery (PP3). It is secured without screws. After the upper and lower parts of the case have been mounted, it is held automatically. Set of battery clips (accessory).
Supply 1 battery compartment
A9176128
Battery compartment XS, 2 x AA or 1 x 9VProdukt byl přidán do Vašeho košíku.
A9176158
Battery compartment XS, 3 x AA
Suitable for DATEC-CONTROL XS. An add-on battery compartment for 3 x 1.5 V AA batteries (IEC LR6 1.5 V). It is secured without screws. After the upper and lower parts of the case have been mounted, it is held automatically. Set of battery clips (accessory).
Supply 1 battery compartment
A9176158
Battery compartment XS, 3 x AAProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A9250250
Battery spacer
The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.
Supply 1 spacer
A9250250
Battery spacerProdukt byl přidán do Vašeho košíku.
50x25x4mm
Accessory "station"
A9176137
Station XS
Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.
Version Desktop version
Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads
A9176137
Station XSProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply 1 contact
A9178007
Contacts, maleProdukt byl přidán do Vašeho košíku.
A9199005
Strain relief
Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.
Supply 1 strain relief device, 2 screws
A9199005
Strain reliefProdukt byl přidán do Vašeho košíku.
volcano
Accessory "protection"
A9176006
Sealing kit XS
Application: for increasing the protection class, of DATEC-CONTROL XS.
Supply 1 sealing kit
A9176006
Sealing kit XSProdukt byl přidán do Vašeho košíku.
A9176108
Protector XS
Special protector for DATEC-CONTROL XS. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.
Supply 1 protector
A9176108
Protector XSProdukt byl přidán do Vašeho košíku.
volcano
Accessory "wall/holder"
A9226337
Wall suspension element
Wall suspension element for DATEC-CONTROL XS. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.
Supply 2 claps, 2 bars, 1 holder
A9226337
Wall suspension elementProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
Accessory "carrying"
A9100002
Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.
Supply 1 ring eyelet
A9100002
Ring eyeletProdukt byl přidán do Vašeho košíku.
volcano
Accessory
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply 1 contact
A9178008
Contacts, femaleProdukt byl přidán do Vašeho košíku.
Customising options for A9076107
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technická data
-
Nákresy / Info
- Kupní data
Materiál
Třída produktu
Necessary accessories: sealing kit
Barva
off-white RAL 9002
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Délka
200 mm
Šířka
94 mm
Výška
39,5 mm
PCB length, base
190 mm
PCB width, base
46 mm
PCB length, top
150 mm
PCB width, top
47 mm
Keypad length
116 mm
Keypad width
50 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Assembly Instructions (Part)
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 322 KB
- AutoCAD DWG-File 652 KB
- AutoCAD DXF-File 2 508 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 3 744 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00007881.x_t 6 049 KB
- 00007881.STEP 13 440 KB
- 00007881.SAT 13 788 KB
External Accessory - miscellaneous
Weight/1 part
125 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
