DIN modulární skříňka
A9006118
DATEC-COMPACT M

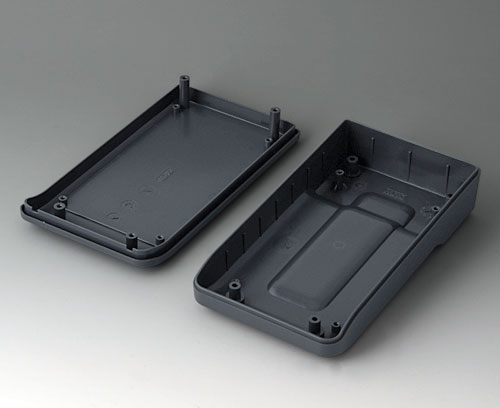

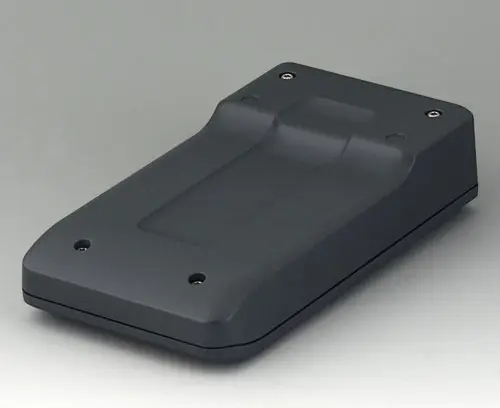

2-part compact hand-held enclosure with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
VersionWithout battery compartment
SupplyTop and bottom part, assembly kit
Generovat PDF pro A9006118
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Accessory "station"
A9106508
Supply Station with bottom panel, rubber feet, assembly kit
A9106508
Station Mlava
A9193031
Supply 1 spring contact
A9193031
Spring contactAccessory "wall/holder"
A9106628
Supply 1 holder
A9106628
Holder Mlava
Accessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Accessory
A9193030
Supply 1 contact pin
A9193030
Contact pin
A9207150
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mmDrawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 301 KB
- AutoCAD DWG-File 623 KB
- AutoCAD DXF-File 2 287 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 459 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00020355.x_t 5 291 KB
- 00020355.step 11 393 KB
- 00020355.sat 11 254 KB
(OKW product)
