A9005207
DATEC-COMPACT S

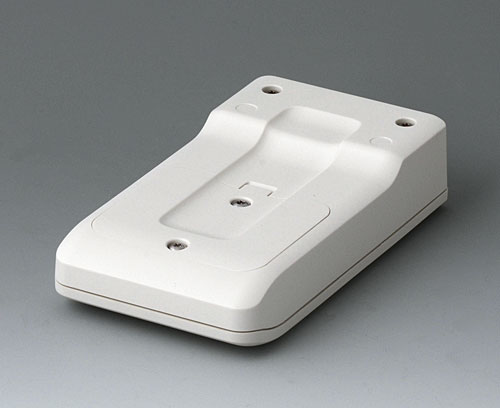

3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AAA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

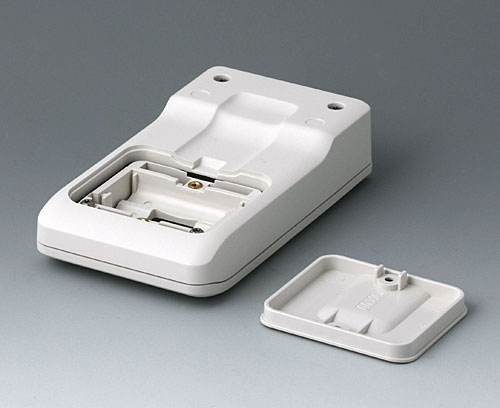

VersionWith battery compartment 3 x AAA
SupplyTop and bottom part, battery compartment lid, assembly kit
Generovat PDF pro A9005207
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Accessory "battery"
A9190024
Supply 1 double contacts right, 1 double contacts left, 1 single contact positive, 1 single contact negative
A9190024

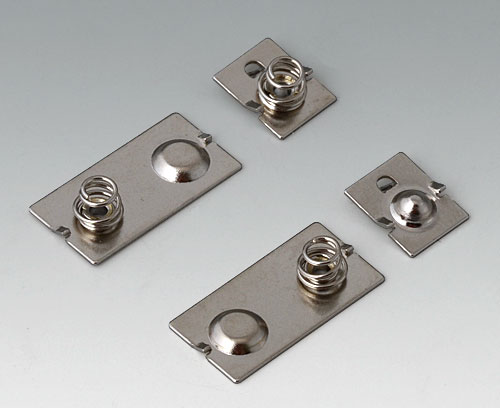

Set of battery clips, 3 x AAAnickel-plated
Accessory "station"
A9105507
Supply Station with bottom panel, rubber feet, assembly kit
A9105507
Station Soff-white RAL 9002
A9193031
Supply 1 spring contact
A9193031
Spring contactAccessory "wall/holder"
A9105627
Supply 1 holder
A9105627
Holder Soff-white RAL 9002
Accessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Accessory
A9193030
Supply 1 contact pin
A9193030
Contact pin
A9207150
Supply 2 rubber feet
A9207150
