DIN modulární skříňka
B1070465
TOPTEC 194 H, Vers. II
Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.
VersionWith ventilations slots
Supply1 case-top and base, 2 end panels
2D PDF Zobrazení
3D PDF Zobrazení
3D/2D ke stažení
3D/2D ke stažení
Generovat PDF pro B1070465
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Přidat do košíku
Accessory "wall/holder"
A9325018
Pole/mast mounting bracket
For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.
Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.
Supply 1 pole/mast mounting bracket
A9325018
Pole/mast mounting bracketProdukt byl přidán do Vašeho košíku.
anthracite grey RAL 7016
100x100x20mm
B1300017

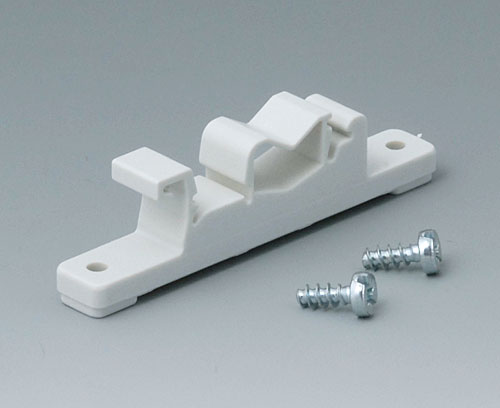

Fastening element for DIN-Rails
Especially for TOPTEC starting from size 123 F/H and EVOTEC 100/125/150. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.
Supply 1 piece incl, assembly kit
B1300017
Fastening element for DIN-RailsProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
B1370028
Wall suspension element for Toptec 194
Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.
Supply 1 wall suspension element
B1370028
Wall suspension element for Toptec 194Produkt byl přidán do Vašeho košíku.
pebble grey RAL 7032
Accessory "screws"
A9199008
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.
Supply 4 screws
A9199008
Set of screwsProdukt byl přidán do Vašeho košíku.
Accessory
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mmProdukt byl přidán do Vašeho košíku.
Customising options for B1070465
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technická data
-
Nákresy / Info
- Kupní data
Materiál
Třída produktu
Barva
Bottom and top part
off-white RAL 9002,
End panels pebble grey RAL 7032
End panels pebble grey RAL 7032
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Délka
194 mm
Šířka
115 mm
Výška
68 mm
PCB length, base
183 mm
PCB width, base
104 mm
PCB length, top
158 mm
PCB width, top
106 mm
Keypad length
163 mm
Keypad width
84,9 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 248 KB
- AutoCAD DWG-File 668 KB
- AutoCAD DXF-File 2 381 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 2 141 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00013655.x_t 2 942 KB
- 00013655.step 6 456 KB
- 00013655.sat 9 833 KB
Weight/1 part
245 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro B1070465 a nezapomeňte si vyžádat nabídku!
