DIN modulární skříňka
B4608107
SMART-CONTROL S, Vers. I

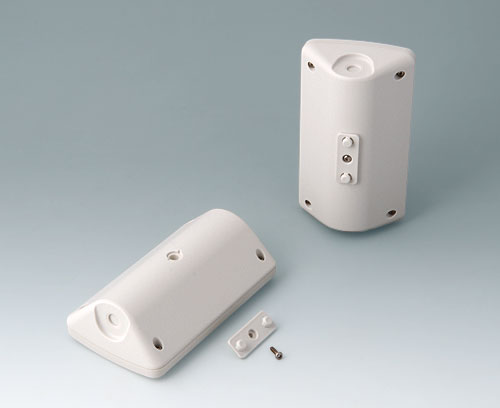

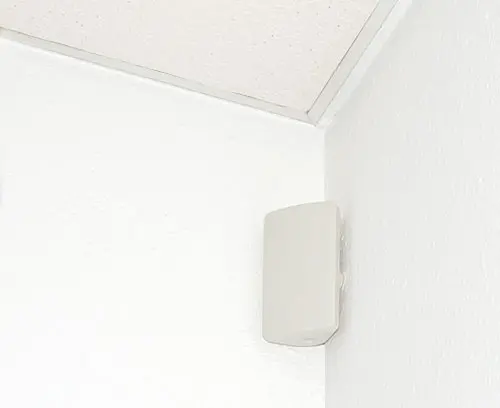

Two-part plastic enclosure with convex, curved top part. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

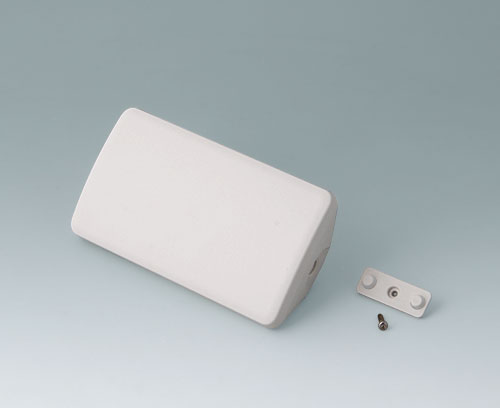

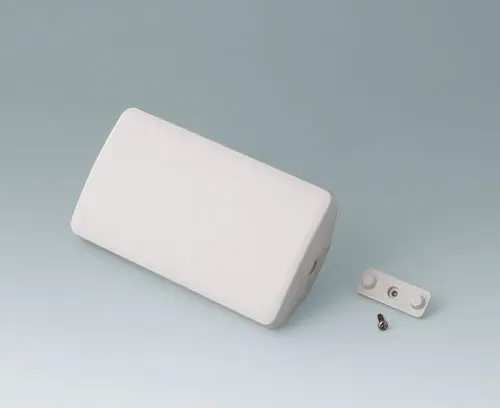

VersionCase-top without recessed operating area
SupplyTop and bottom parts, assembly kit incl. universal adapter
Generovat PDF pro B4608107
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Accessory "station"
B4705207
Supply 1 desktop stand set incl. 2 self-adhesive rubber feet
B4705207
Desktop stand setAccessory "protection"
B4708920
Supply 1 seal
B4708920

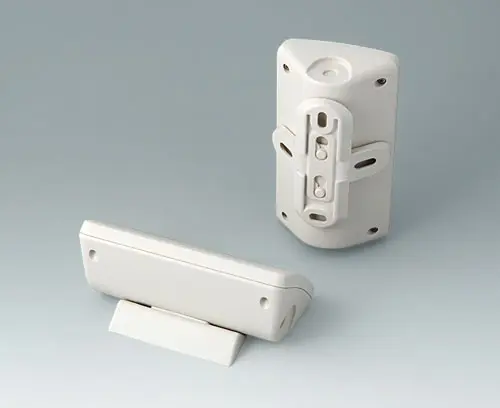

Seal SAccessory "wall/holder"
B4705907
Supply 1 wall suspension element
B4705907
Wall suspension elementAccessory "screws"
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Necessary accessories: sealing,
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 382 KB
- AutoCAD DWG-File 573 KB
- AutoCAD DXF-File 2 074 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 752 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00025844.x_t 7 992 KB
- 00025844.STEP 13 835 KB
- 00025844.SAT 19 259 KB
(OKW product)
