DIN modulární skříňka
A9408443

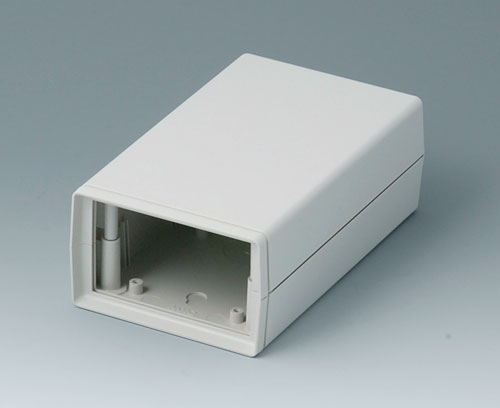

SHELL-TYPE CASES V 155, Vers. I
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
VersionWithout battery compartment
Supply1 top and base part, assembly kit
2D PDF Zobrazení
3D PDF Zobrazení
3D/2D ke stažení
3D/2D ke stažení
Generovat PDF pro A9408443
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Přidat do košíku
Accessory to complete

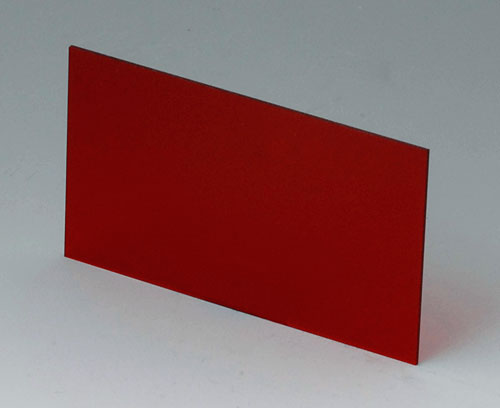

A9108223
Front / rear panel V, O 155
Front panel for SHELL-TYPE CASE V and O. For case A940844.
Supply 1 front panel
A9108223
Front / rear panel V, O 155Produkt byl přidán do Vašeho košíku.
red transparent
81,9x47,6x1mm

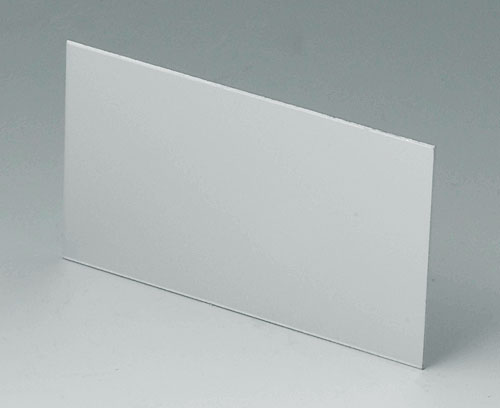

A9109221
Front / rear panel V, O 155
Front panel for SHELL-TYPE CASE V and O. For case A940844.
Supply 1 front panel
A9109221
Front / rear panel V, O 155Produkt byl přidán do Vašeho košíku.
matt anodised
81,9x47,6x1mm
Accessory "protection"

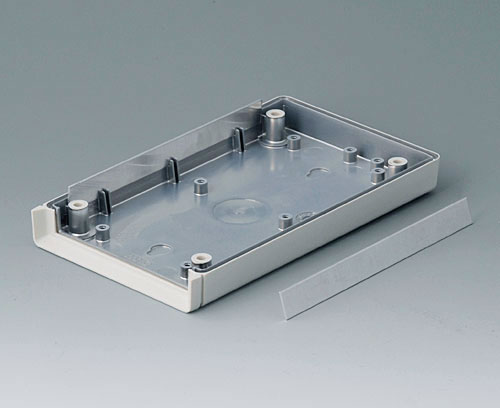

A9108120
Contact-strips V, O, G 155
Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).
Supply 1 contact-strip
A9108120
Contact-strips V, O, G 155Produkt byl přidán do Vašeho košíku.
Accessory "wall/holder"
A9204108
Wall mounting brackets
Exterior wall mounting elements for the SHELL-TYPE CASES 110, 155 and 190. Fastening to the case by means of the case fixing screws.
Supply 4 wall mounting brackets
A9204108
Wall mounting bracketsProdukt byl přidán do Vašeho košíku.
pebble grey RAL 7032
B1360048
Wall suspension elements
Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.
Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit
B1360048
Wall suspension elementsProdukt byl přidán do Vašeho košíku.
pebble grey RAL 7032
Accessory "carrying"
A9100002
Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.
Supply 1 ring eyelet
A9100002
Ring eyeletProdukt byl přidán do Vašeho košíku.
volcano
Accessory "screws"
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)Produkt byl přidán do Vašeho košíku.
Accessory
A9210290
Anti-slide feet 9.5 x 3.8 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
A9210290
Anti-slide feet 9.5 x 3.8 mmProdukt byl přidán do Vašeho košíku.
A9250807
Tilt foot bar
Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.
Supply 1 tilt foot bar, assembly kit
A9250807
Tilt foot barProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A9250817
Tilt foot bar
Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.
Supply 1 tilt foot bar, assembly kit
A9250817
Tilt foot barProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
Customising options for A9408443
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technická data
-
Nákresy / Info
- Kupní data
Šířka
95 mm
Hloubka
158 mm
Výška
57 mm
PCB length, base
142 mm
PCB width, base
77 mm
PCB length, top
142 mm
PCB width, top
77 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 286 KB
- AutoCAD DWG-File 758 KB
- AutoCAD DXF-File 2 774 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 1 234 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008487.x_t 3 804 KB
- 00008487.STEP 10 705 KB
- 00008487.SAT 10 983 KB
Weight/1 part
165 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro A9408443 a nezapomeňte si vyžádat nabídku!
