DIN modulární skříňka
B6805200

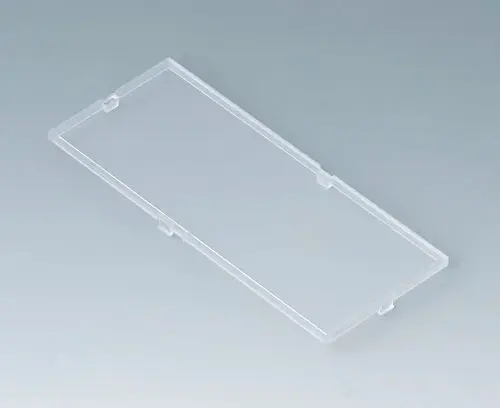

Front panel, 6 modules
Snap-in.
Supply1 front panel
2D PDF Zobrazení
3D/2D ke stažení
3D/2D ke stažení
Generovat PDF pro B6805200
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Přidat do košíku

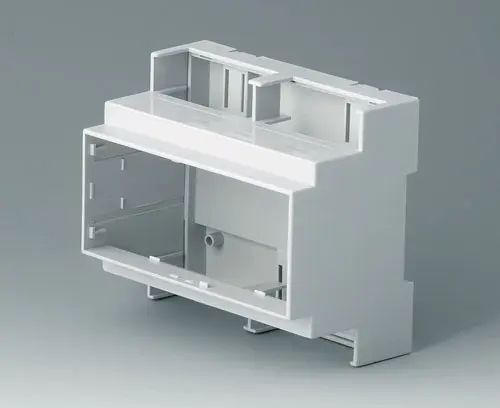

B6705100
RAILTEC C, 6 modules, Vers. I
Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6705100
RAILTEC C, 6 modules, Vers. IProdukt byl přidán do Vašeho košíku.
light grey
106x90x58mm

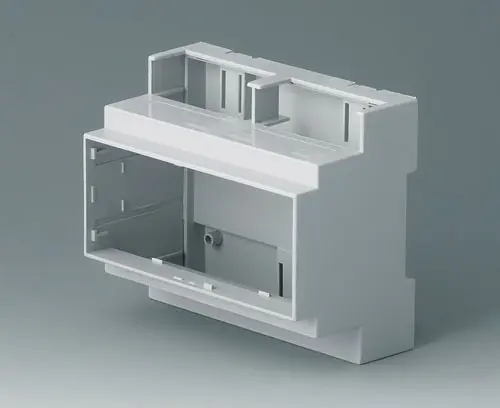

B6705101
RAILTEC C, 6 modules, Vers. I
Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6705101
RAILTEC C, 6 modules, Vers. IProdukt byl přidán do Vašeho košíku.
light grey
106x90x58mm

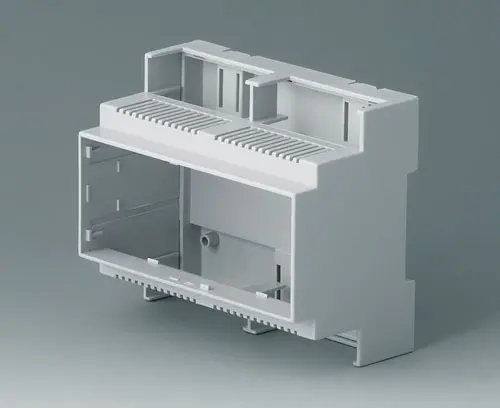

B6705102
RAILTEC C, 6 modules, Vers. II
Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories).Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6705102
RAILTEC C, 6 modules, Vers. IIProdukt byl přidán do Vašeho košíku.
light grey
106x90x58mm
B6705103
RAILTEC C, 6 modules, Vers. II
Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6705103
RAILTEC C, 6 modules, Vers. IIProdukt byl přidán do Vašeho košíku.
light grey
106x90x58mm

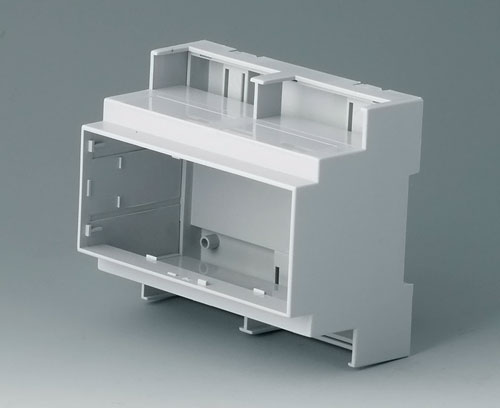

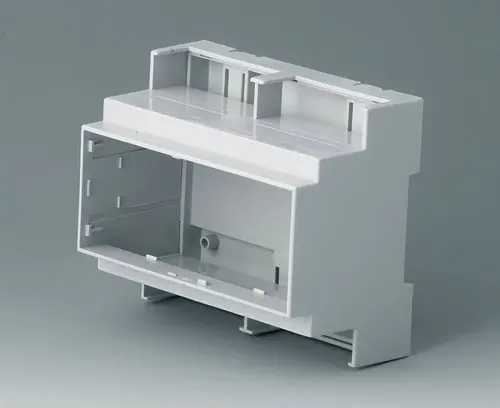

B6705104
RAILTEC C, 6 modules, Vers. III
Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6705104
RAILTEC C, 6 modules, Vers. IIIProdukt byl přidán do Vašeho košíku.
light grey
106x90x58mm
B6705105
RAILTEC C, 6 modules, Vers. III
Enclosure with 1 side open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6705105
RAILTEC C, 6 modules, Vers. IIIProdukt byl přidán do Vašeho košíku.
light grey
106x90x58mm

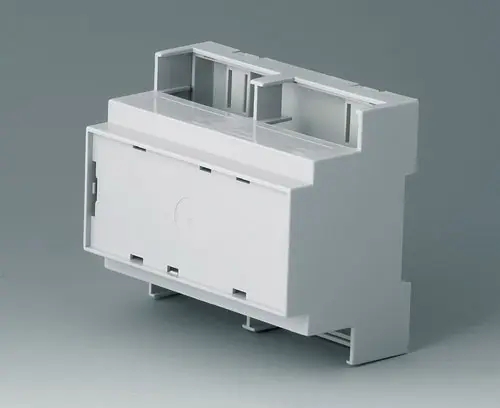

B6705106
RAILTEC C, 6 modules, Vers. IV
Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front closed, connection side with free through passage
Supply 1 bottom part, 3 clips, 1 top part
B6705106
RAILTEC C, 6 modules, Vers. IVProdukt byl přidán do Vašeho košíku.
light grey
106x90x58mm
B6705107
RAILTEC C, 6 modules, Vers. IV
Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version front closed, connection side with free through passage.
Supply 1 bottom part, 3 clips, 1 top part
B6705107
RAILTEC C, 6 modules, Vers. IVProdukt byl přidán do Vašeho košíku.
light grey
106x90x58mm

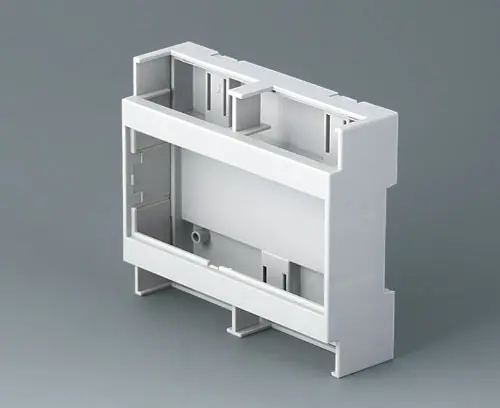

B6705800
RAILTEC C, 6 modules, flat, Vers. I
Enclosure with 2 sides open for connection and with flat top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front open*, connection side with free through passage (*ridges give more stability during transport - easily removeable)
Supply 1 bottom part, 3 clips, 1 top part
B6705800
RAILTEC C, 6 modules, flat, Vers. IProdukt byl přidán do Vašeho košíku.
light grey
106,2x90x32mm
B6705806
RAILTEC C, 6 modules, flat, Vers. IV
Enclosure with 2 sides open for connection and with flat top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Version Front closed, connection side with free through passage
Supply 1 bottom part, 3 clips, 1 top part
B6705806
RAILTEC C, 6 modules, flat, Vers. IVProdukt byl přidán do Vašeho košíku.
light grey
106,2x90x32mm
Customising options for B6805200
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technická data
-
Nákresy / Info
- Kupní data
Šířka
102 mm
Výška
42 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 82 KB
- AutoCAD DWG-File 260 KB
- AutoCAD DXF-File 749 KB
Weight/1 part
9 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
UK
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro B6805200 a nezapomeňte si vyžádat nabídku!
