DIN modulární skříňka

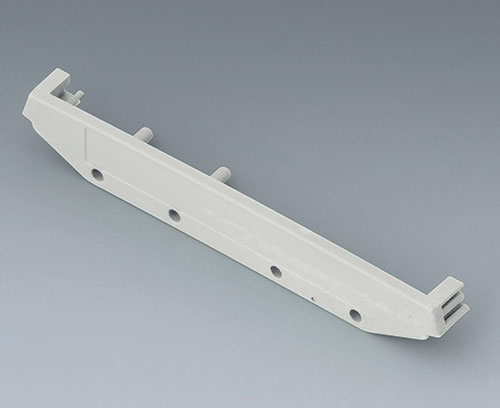

B6724444
RAILTEC SUP. 107, end section
Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts.
Supply1 end section
2D PDF Zobrazení
3D PDF Zobrazení
3D/2D ke stažení
3D/2D ke stažení
Generovat PDF pro B6724444
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Přidat do košíku
System components to complete

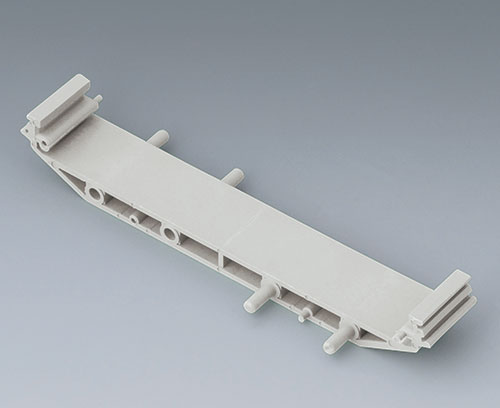

B6724440
RAILTEC SUP. 107, intermediate part
Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.
Supply 1 intermediate part
B6724440
RAILTEC SUP. 107, intermediate partProdukt byl přidán do Vašeho košíku.
light grey
118x18,5x17,5mm

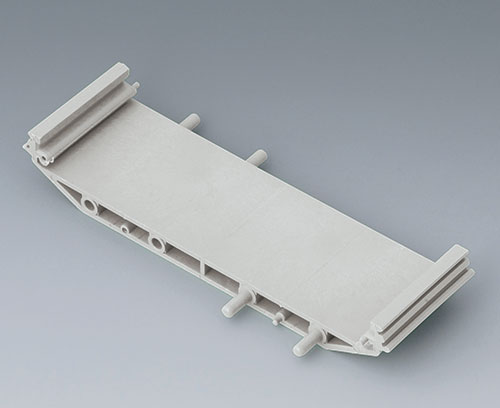

B6724441
RAILTEC SUP. 107, intermediate part
Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.
Supply 1 intermediate part
B6724441
RAILTEC SUP. 107, intermediate partProdukt byl přidán do Vašeho košíku.
light grey
118x35x17,5mm

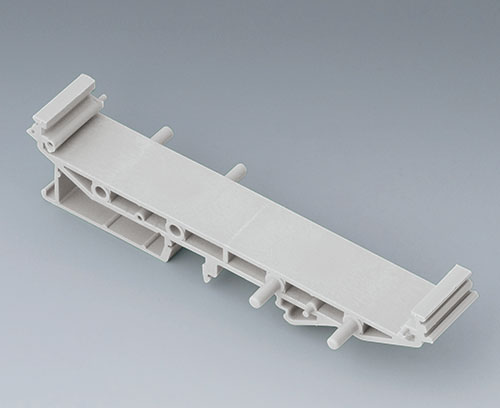

B6724442
RAILTEC SUP. 107, intermediate p. + foot
Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35, TH15 and G32).
Supply 1 intermediate part with foot
B6724442
RAILTEC SUP. 107, intermediate p. + footProdukt byl přidán do Vašeho košíku.
light grey
118x18,5x27,5mm

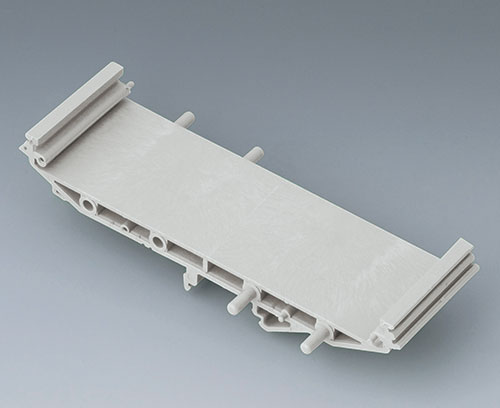

B6724443
RAILTEC SUP. 107, intermediate p. + foot
Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35, TH15 and G32).
Supply 1 intermediate part with foot
B6724443
RAILTEC SUP. 107, intermediate p. + footProdukt byl přidán do Vašeho košíku.
light grey
118x35x27,5mm
Accessory "wall/holder"
B6824542
Wall suspension element for SUP. 107
Allows direct wall mounting, suitable for end section.
Supply 2 pieces as set
B6824542
Wall suspension element for SUP. 107Produkt byl přidán do Vašeho košíku.
light grey
Customising options for B6724444
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technická data
-
Nákresy / Info
- Kupní data
Délka
118 mm
Šířka
11,5 mm
Výška
17,5 mm
PCB length, base
107 mm
PCB width, base
10 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 163 KB
- AutoCAD DWG-File 332 KB
- AutoCAD DXF-File 920 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 34 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00006810.x_t 183 KB
- 00006810.STEP 426 KB
- 00006810.SAT 302 KB
Weight/1 part
14 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
UK
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro B6724444 a nezapomeňte si vyžádat nabídku!
