RAILTEC SUP. 72, end section with foot

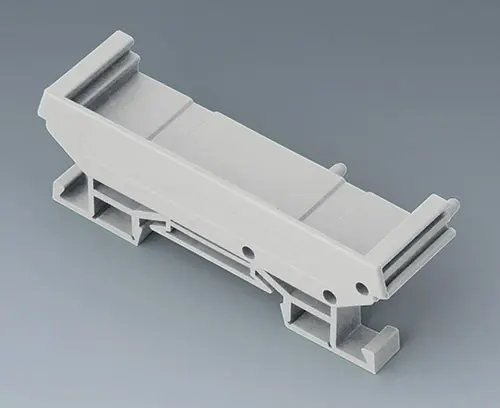

Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35).

Supply

1 end section with foot

2D PDF Zobrazení
3D PDF Zobrazení
3D/2D ke stažení

Generovat PDF pro B6724336

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík

System components to complete

B6724330 RAILTEC SUP. 72, intermediate part

B6724330

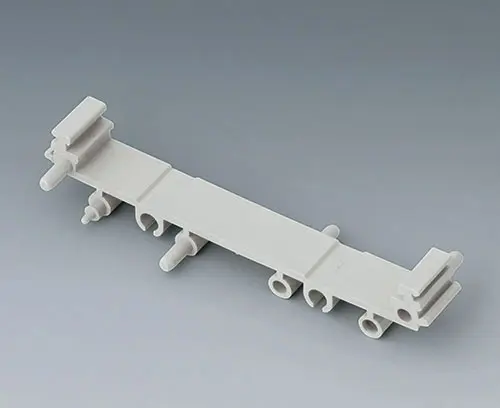

RAILTEC SUP. 72, intermediate part Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 intermediate part

B6724330

RAILTEC SUP. 72, intermediate part
Produkt byl přidán do Vašeho košíku.

light grey
82x11,25x16mm
B6724331 RAILTEC SUP. 72, intermediate part

B6724331

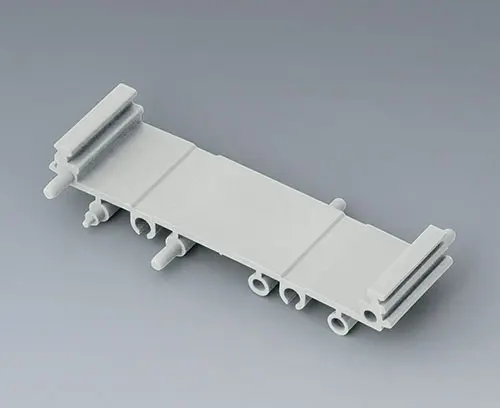

RAILTEC SUP. 72, intermediate part Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 intermediate part

B6724331

RAILTEC SUP. 72, intermediate part
Produkt byl přidán do Vašeho košíku.

light grey
82x22,5x16mm
B6724332 RAILTEC SUP. 72, intermediate part

B6724332

RAILTEC SUP. 72, intermediate part Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 intermediate part

B6724332

RAILTEC SUP. 72, intermediate part
Produkt byl přidán do Vašeho košíku.

light grey
82x45x16mm
B6724337 RAILTEC SUP. 72, foot

B6724337

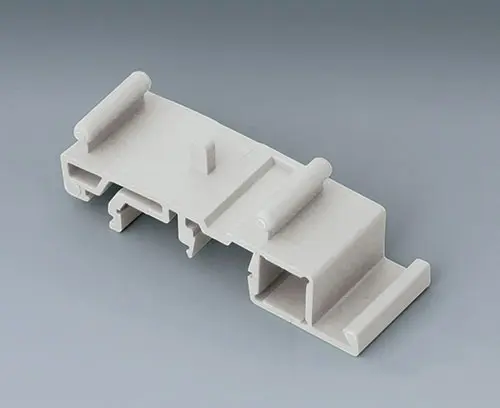

RAILTEC SUP. 72, foot Can be used for intermediate part and end section without foot. Suitable for DIN EN 60715 (TH35, TH15 and G32).

Supply 1 foot

B6724337

RAILTEC SUP. 72, foot
Produkt byl přidán do Vašeho košíku.

light grey

Accessory "wall/holder"

B6824533 Wall suspension element with foot, SUP.

B6824533

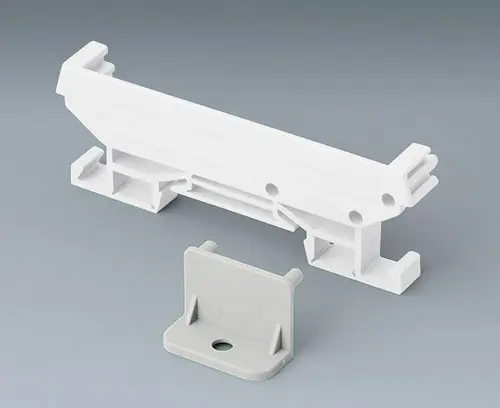

Wall suspension element with foot, SUP. Allows direct wall-mounting, suitable for end section with foot.

Supply 2 pieces as set

B6824533

Wall suspension element with foot, SUP.
Produkt byl přidán do Vašeho košíku.

light grey

Customising options for B6724336

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Materiál

Barva
light grey
Standards
RoHS compliant
DIN EN 60715 TH35
REACH compliant
Délka
82 mm
Šířka
22,2 mm
Výška
22,5 mm
PCB length, base
72 mm
PCB width, base
21 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
10 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
UK
