DIN modulární skříňka
A9022465

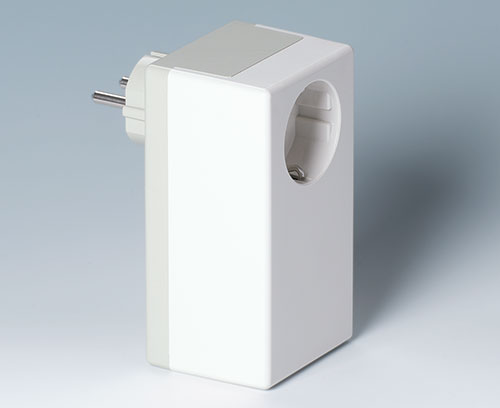

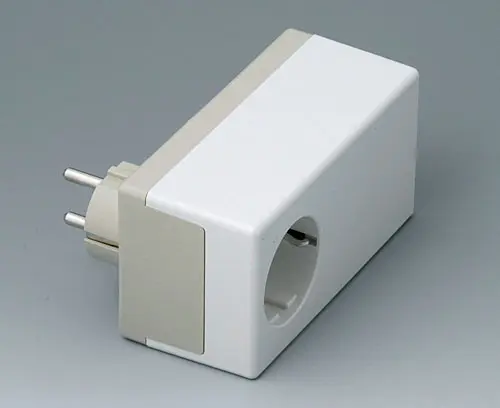

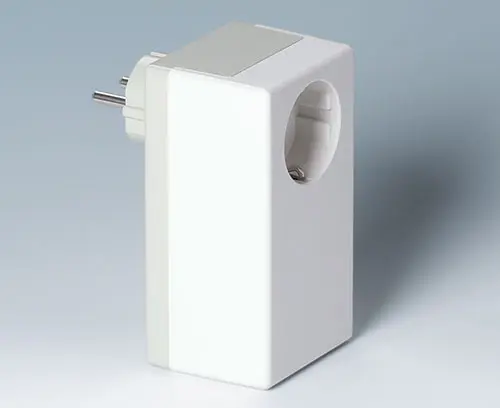

PLUG CASE D, Vers. II
Two-part plug case, German version. Fixing towers for the PCB assembly.
VersionWith integrated socket DIN 49440 and plug section DIN 49441 R2
Supply1 top part with integrated socket and 1 bottom part with plug section, assembly kit including 4 screws for the PCB fixing
Generovat PDF pro A9022465
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Accessory "screws"
A0306031
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
A0308031
Supply 1 self-tapping screw
A0308031
Self-tapping screws 3 x 8 mm (PZ1)
A0308132
Supply 1 self-tapping screw
A0308132
Self-tapping screw 3 x 8 mm (T10)Top part with integrated socket off-white RAL 9002
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 222 KB
- AutoCAD DWG-File 492 KB
- AutoCAD DXF-File 1 897 KB
(OKW product)
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro A9022465 a nezapomeňte si vyžádat nabídku!
