A9021665
PLUG CASE F / D, Vers. I

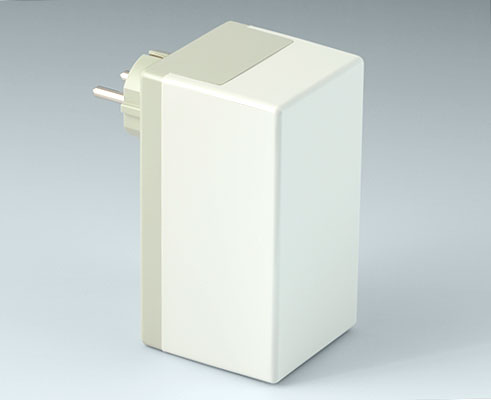

Two-part plug case, French / German version. Fixing towers for the PCB assembly.
VersionWithout integrated socket, plug according to DIN 49441 R2
Supply1 top part and 1 bottom part with plug section, assembly kit including 4 screws for the PCB fixing
2D PDF Zobrazení
3D/2D ke stažení
3D/2D ke stažení
Generovat PDF pro A9021665
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Přidat do košíku
Accessory "screws"
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)Produkt byl přidán do Vašeho košíku.
A0308031
Self-tapping screws 3 x 8 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308031
Self-tapping screws 3 x 8 mm (PZ1)Produkt byl přidán do Vašeho košíku.
A0308132
Self-tapping screw 3 x 8 mm (T10)
Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308132
Self-tapping screw 3 x 8 mm (T10)Produkt byl přidán do Vašeho košíku.
Customising options for A9021665
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technická data
-
Nákresy / Info
- Kupní data
Materiál
Bottom part with plug section
Top part with integrated socket
Barva
Bottom part with plug section
pebble grey RAL 7032,
Top part off-white RAL 9002
Top part off-white RAL 9002
Standards
Délka
120 mm
Šířka
65 mm
Výška
65 mm
PCB length, base
96 mm
PCB width, base
58 mm
PCB length, top
95 mm
PCB width, top
58,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 183 KB
- AutoCAD DWG-File 377 KB
- AutoCAD DXF-File 1 417 KB
Weight/1 part
150 g
Customs tariff number
(OKW product)
(OKW product)
85480090
Country of manufacture
Germany
