DIN modulární skříňka
A9250807

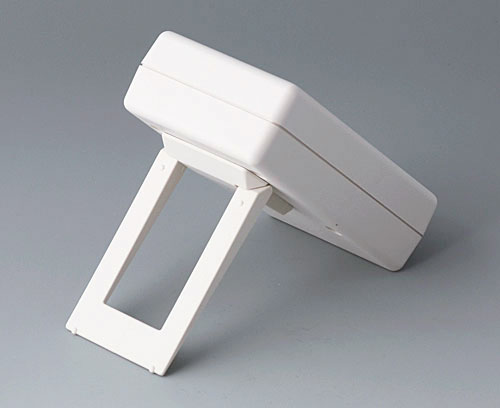

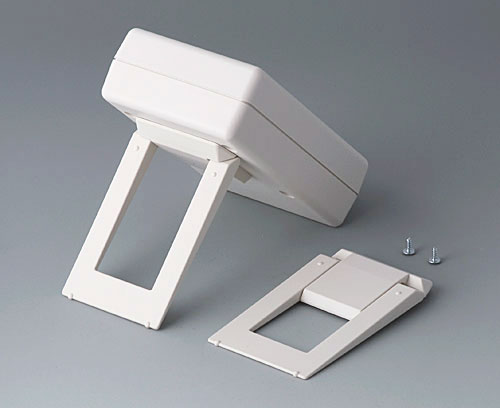

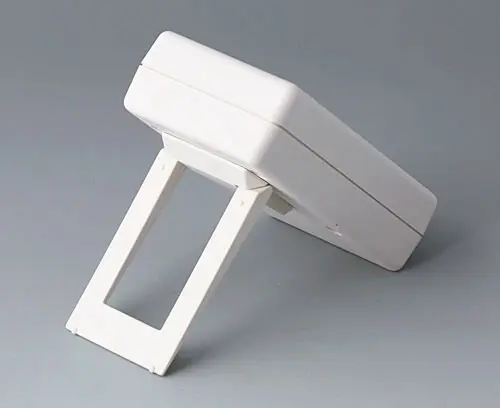

Tilt foot bar
Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.
Supply1 tilt foot bar, assembly kit
Generovat PDF pro A9250807
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
System components to complete
A9010065
Version Without handle bar
Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs
A9010065
FLAT-PACK CASES 100 N, Vers. Ioff-white RAL 9002
100x50x25mm
A9011065
Version Without handle bar
Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs
A9011065
FLAT-PACK CASES 100 H, Vers. Ioff-white RAL 9002
100x50x40mm
A9020065
Version Without handle bar
Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs
A9020065
FLAT-PACK CASES 120 N, Vers. Ioff-white RAL 9002
120x65x40mm
A9020265
Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs
A9020265
FLAT-PACK CASE 120 Soff-white RAL 9002
120x65x40mm
A9021065
Version Without handle bar
Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs
A9021065
FLAT-PACK CASE 120 H, Vers. Ioff-white RAL 9002
120x65x65mm
A9030065
Version Without handle bar
Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs
A9030065
FLAT-PACK CASES 150 N, Vers. Ioff-white RAL 9002
150x80x50mm
A9031065
Version without handle bar.
Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs
A9031065
FLAT-PACK CASE 150 H, Vers. Ioff-white RAL 9002
150x80x80mm
A9032065
Version Without handle bar
Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs
A9032065
FLAT-PACK CASES 150 N, Vers. Ioff-white RAL 9002
150x80x55mm
A9060007
Version With lateral recess for rocker switch
Supply Top and base part, battery compartment lid, assembly kit
A9060007
HAND-HELD-BOX P, Vers. Ioff-white RAL 9002
145x80x36,5mm
A9060017
Version Without lateral recess
Supply Top and base part, battery compartment lid, assembly kit
A9060017
HAND-HELD-BOX P, Vers. IIoff-white RAL 9002
145x80x36,5mm
A9062017
Version With battery compartment for 9 V flat batteries (PP3) or 1.5 V baby cells (C) with contacts for soldering
Supply Top and base part, battery compartment lid, assembly kit
A9062017
HAND-HELD-BOX M, Vers. Ioff-white RAL 9002
145x80x38,5mm
A9406331
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9406331
SHELL-TYPE CASES G 110, Vers. Ioff-white RAL 9002
72x114x33mm
A9406333
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9406333
SHELL-TYPE CASES V 110, Vers. Ioff-white RAL 9002
72x114x33mm
A9406341
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9406341
SHELL-TYPE CASES G 110, Vers. Ioff-white RAL 9002
72x114x45mm
A9406343
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9406343
SHELL-TYPE CASES V 110, Vers. Ioff-white RAL 9002
72x114x45mm
A9406351
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9406351
SHELL-TYPE CASES G 110, Vers. Ioff-white RAL 9002
72x114x33,5mm
A9406441
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9406441
SHELL-TYPE CASES G 110, Vers. Ioff-white RAL 9002
72x114x57mm
A9406443
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9406443
SHELL-TYPE CASES V 110, Vers. Ioff-white RAL 9002
72x114x57mm
A9408331
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9408331
SHELL-TYPE CASES G 155, Vers. Ioff-white RAL 9002
95x158x33mm
A9408333
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9408333
SHELL-TYPE CASES V 155, Vers. Ioff-white RAL 9002
95x158x33mm
A9408341
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9408341
SHELL-TYPE CASES G 155, Vers. Ioff-white RAL 9002
95x158x45mm
A9408343
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9408343
SHELL-TYPE CASES V 155, Vers. Ioff-white RAL 9002
95x158x45mm

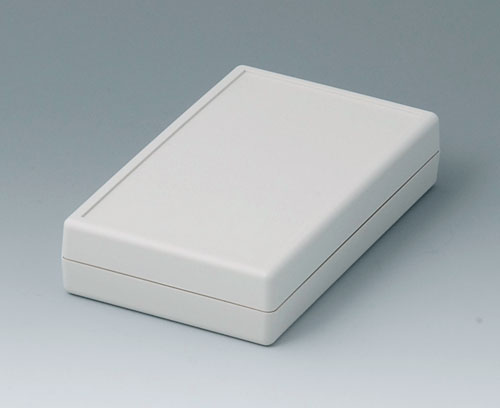

A9408351
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9408351
SHELL-TYPE CASES G 155, Vers. Ioff-white RAL 9002
95x158x33,5mm

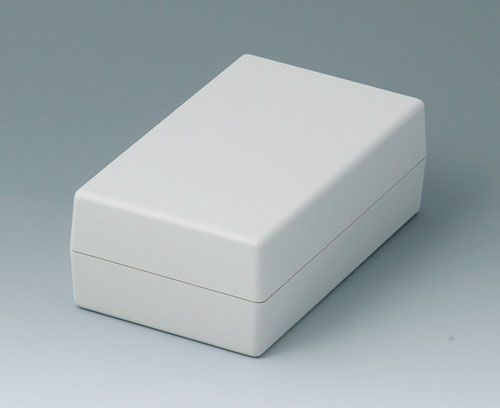

A9408441
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9408441
SHELL-TYPE CASES G 155, Vers. Ioff-white RAL 9002
95x158x57mm
A9408443
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9408443
SHELL-TYPE CASES V 155, Vers. Ioff-white RAL 9002
95x158x57mm
A9520165
Supply 1 top and base part, assembly kit
A9520165
FLAT-PACK CASE 120 Aoff-white RAL 9002
120x65x40mm
A9530165
Supply 1 top and base part, assembly kit
A9530165
FLAT-PACK CASE 150 Aoff-white RAL 9002
150x85x45mm
Accessory
A9207150
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mmDrawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 165 KB
- AutoCAD DWG-File 342 KB
- AutoCAD DXF-File 971 KB
(OKW product)
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro A9250807 a nezapomeňte si vyžádat nabídku!
