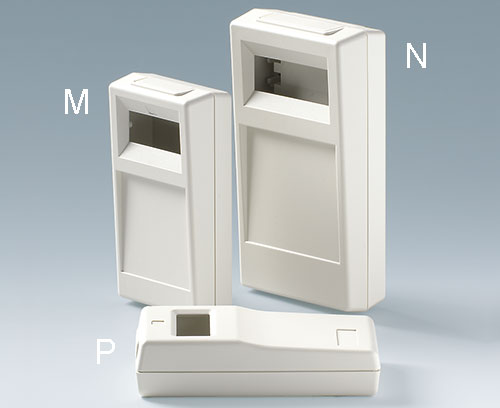

Uni-Mess-Box

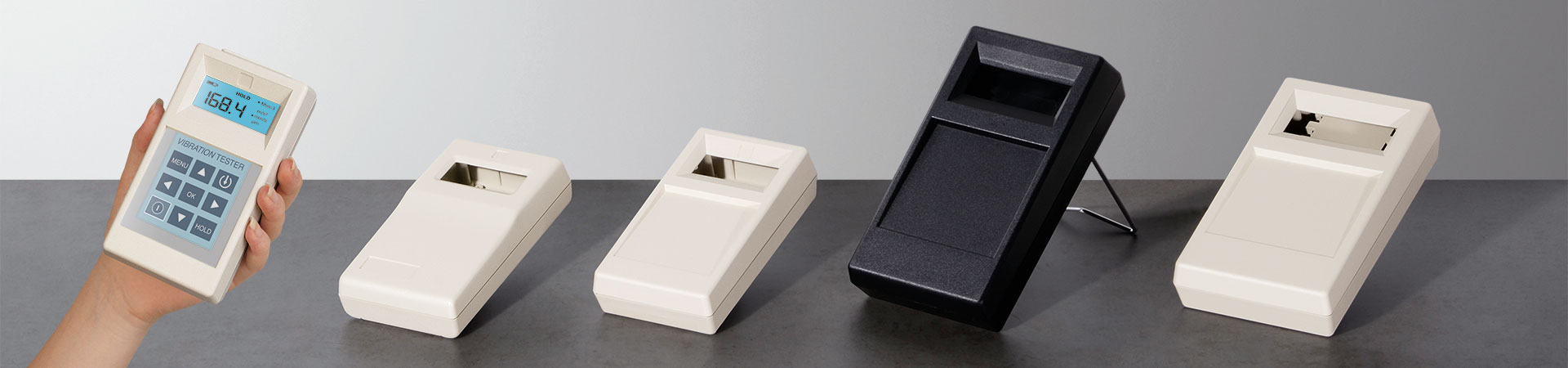

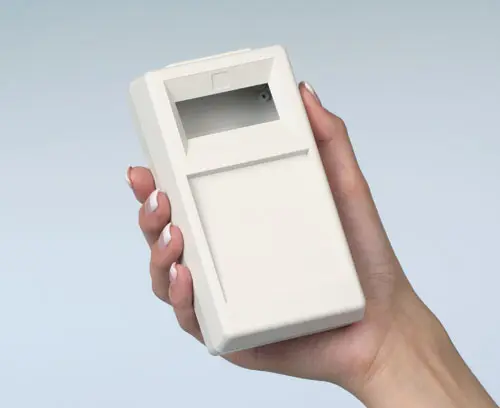

Ruční pouzdra pro měřicí přístroje

Dobře osvědčená a úsporná ruční pouzdra v praktickém rozměru do kapsy.

  • Připraven pro instalaci digitálních a analogových displejů
  • Obrazovky chrání vestavěné displeje, snadnou instalaci pomocí lepicí fólie

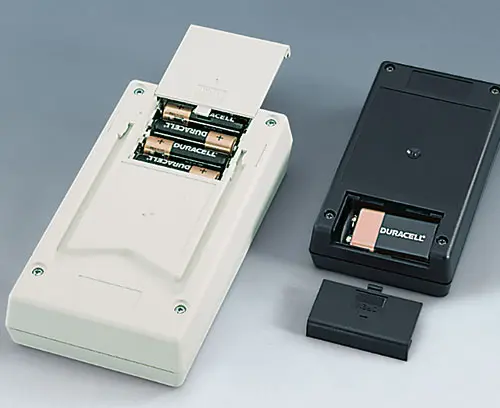

  • Bateriová schránka pro baterie C, AA a 9 V
  • Kryt bateriového prostoru pro rychlou výměnu baterií

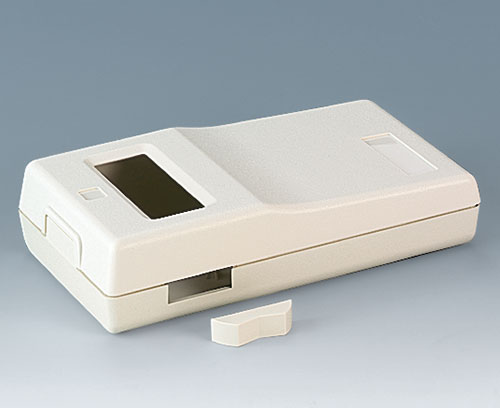

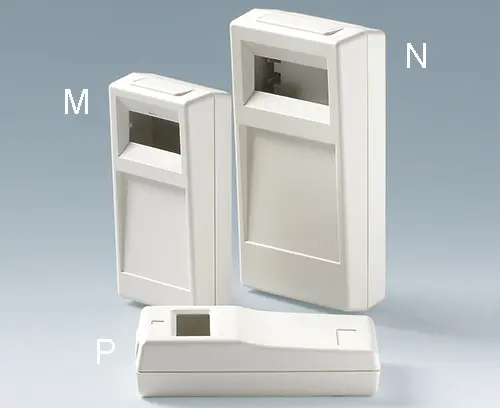

  • Pouzdro bez / s vypínačem (typ P)

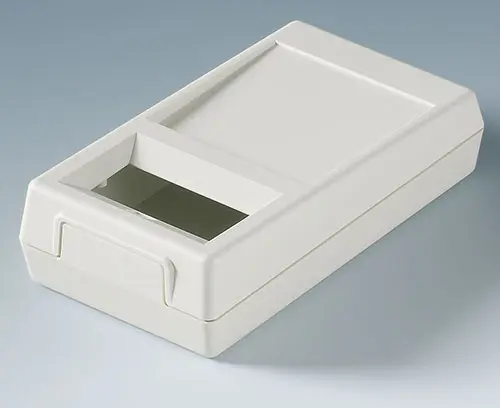

  • Zdvihnutá přední část spodní části pro instalaci zástrčky
  • Nastavovací lišta pro ergonomické úhly čtení

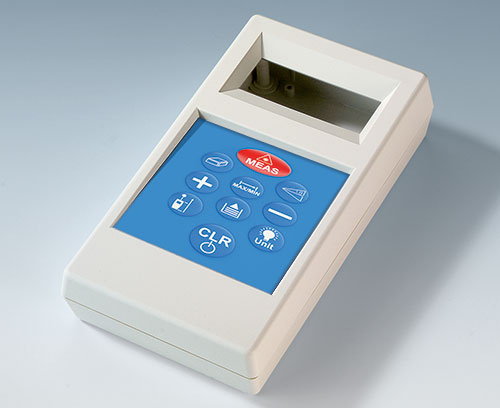

  • Zapuštěný ovládací panel pro membránové klávesnice (typy M, N)
  • Upevňovací sloupky pro desky a komponenty

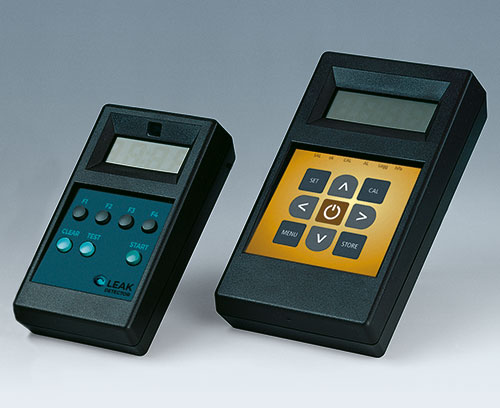

  • Příklady aplikací

Obory aplikací

  • Praktické ruční pouzdra s možností instalace digitálních a analogových displejů

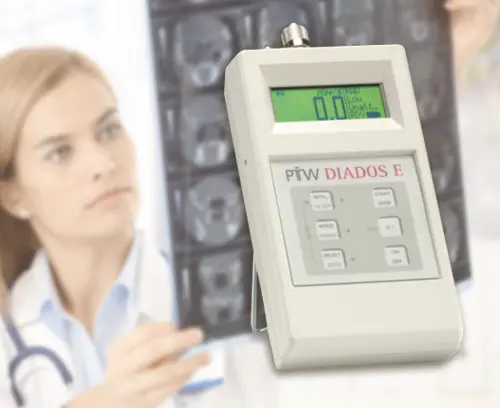

  • Univerzální použití v oblasti měřicí a řídicí techniky, např. tester kontinuity a napětí, měřič intenzity pole, digitální teploměr atd.
  • Procházet celý seznam
  • Doplňky
  • Zobrazit možnosti přizpůsobení
AltText

A9060007

HAND-HELD-BOX P, Vers. I Design: Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version With lateral recess for rocker switch

Supply Top and base part, battery compartment lid, assembly kit

Zavřít

A9060007

HAND-HELD-BOX P, Vers. I
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
145x80x36,5mm
AltText

A9060009

HAND-HELD-BOX P, Vers. I Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version With lateral recess for rocker switch

Supply Top and base part, battery compartment lid, assembly kit

Zavřít

A9060009

HAND-HELD-BOX P, Vers. I
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
145x80x36,5mm
AltText

A9060017

HAND-HELD-BOX P, Vers. II Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version Without lateral recess

Supply Top and base part, battery compartment lid, assembly kit

Zavřít

A9060017

HAND-HELD-BOX P, Vers. II
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
145x80x36,5mm
AltText

A9060019

HAND-HELD-BOX P, Vers. II Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version Without lateral recess

Supply Top and base part, battery compartment lid, assembly kit

Zavřít

A9060019

HAND-HELD-BOX P, Vers. II
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
145x80x36,5mm
AltText

A9061017

HAND-HELD-BOX N, Vers. I Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Battery compartment accessible from the outside with locked battery compartment lid. For 2 x 9 V flat batteries (PP3) or 4 x 1.5 V mignon cells (AA). Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version With battery compartment

Supply Top and base part, battery compartment lid, assembly kit

Zavřít

A9061017

HAND-HELD-BOX N, Vers. I
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
180x100x44mm
AltText

A9061019

HAND-HELD-BOX N, Vers. I Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Battery compartment accessible from the outside with locked battery compartment lid. For 2 x 9 V flat batteries (PP3) or 4 x 1.5 V mignon cells (AA). Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version With battery compartment

Supply Top and base part, battery compartment lid, assembly kit

Zavřít

A9061019

HAND-HELD-BOX N, Vers. I
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
180x100x44mm
AltText

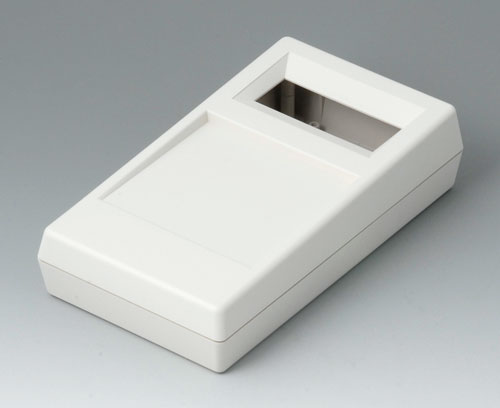

A9061117

HAND-HELD-BOX N, Vers. II Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version Without battery compartment

Supply Top and base part, assembly kit

Zavřít

A9061117

HAND-HELD-BOX N, Vers. II
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
180x100x44mm
AltText

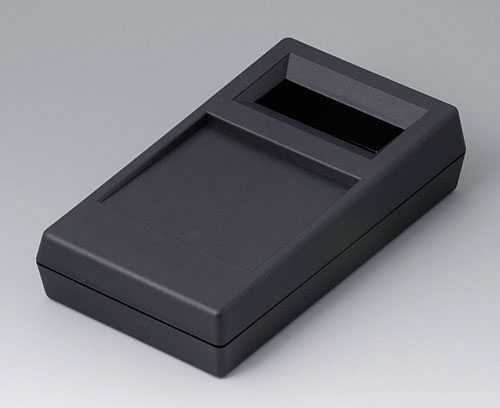

A9061119

HAND-HELD-BOX N, Vers. II Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version Without battery compartment

Supply Top and base part, assembly kit

Zavřít

A9061119

HAND-HELD-BOX N, Vers. II
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
180x100x44mm
AltText

A9062017

HAND-HELD-BOX M, Vers. I Small hand-held case with excellent design. With recessed area, e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Battery compartment accessible from the outside with locked battery compartment lid. Raised front area to accommodate plugs.

Version With battery compartment for 9 V flat batteries (PP3) or 1.5 V baby cells (C) with contacts for soldering

Supply Top and base part, battery compartment lid, assembly kit

Zavřít

A9062017

HAND-HELD-BOX M, Vers. I
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
145x80x38,5mm
AltText

A9062019

HAND-HELD-BOX M, Vers. I Small hand-held case with excellent design. With recessed area, e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Battery compartment accessible from the outside with locked battery compartment lid. Raised front area to accommodate plugs.

Version With battery compartment for 9 V flat batteries (PP3) or 1.5 V baby cells (C)

Supply Top and base part, battery compartment lid, assembly kit

Zavřít

A9062019

HAND-HELD-BOX M, Vers. I
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
145x80x38,5mm
AltText

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zavřít

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Produkt byl přidán do Vašeho košíku.
AltText

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zavřít

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Produkt byl přidán do Vašeho košíku.
AltText

A9100002

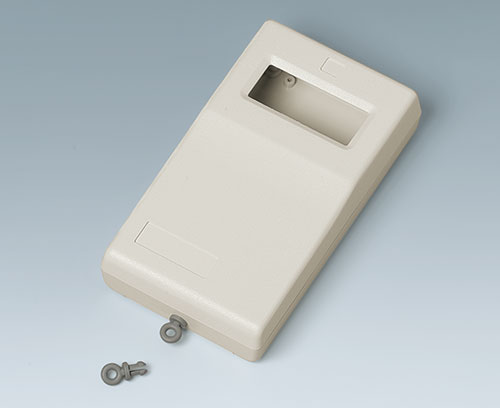

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Zavřít

A9100002

Ring eyelet
Produkt byl přidán do Vašeho košíku.
PA 6
volcano
AltText

A9160002

Cover plug For covering the bottom's screw holes.

Supply 1 cover plug

Zavřít

A9160002

Cover plug
Produkt byl přidán do Vašeho košíku.
black RAL 9005
AltText

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Zavřít

A9160003

Plug-in contact, 1 x 9 V (PP3)
Produkt byl přidán do Vašeho košíku.
AltText

A9160004

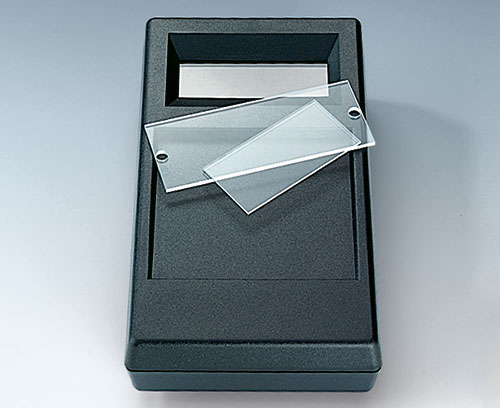

Display window P The display window protects the installed display. For glueing the display window there's an adhesive foil (A9160006) available.

Supply 1 display window

Zavřít

A9160004

Display window P
Produkt byl přidán do Vašeho košíku.
Acrylglas
transparent
60x30x1mm
AltText

A9160005

Display window M The display window protects the installed display. For glueing the display window there's an adhesive foil (A9160006) available.

Supply 1 display window

Zavřít

A9160005

Display window M
Produkt byl přidán do Vašeho košíku.
Acrylglas
transparent
60x30x1mm
AltText

A9160006

Adhesive foil P/M Fastening the display window (A9060004, A9060005).

Supply 1 adhesive foil

Zavřít

A9160006

Adhesive foil P/M
Produkt byl přidán do Vašeho košíku.
AltText

A9160007

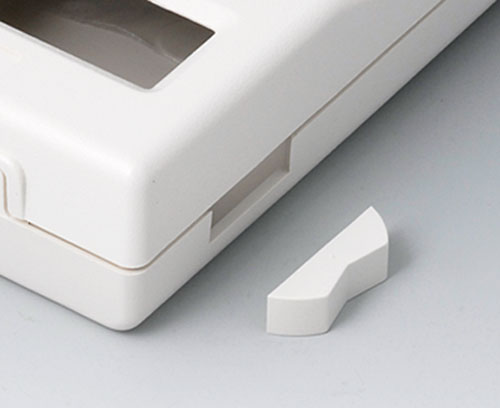

Switch cap For rocker-switch application.

Supply 1 switch cap

Zavřít

A9160007

Switch cap
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
AltText

A9160009

Switch cap For rocker switch-application.

Supply 1 switch cap

Zavřít

A9160009

Switch cap
Produkt byl přidán do Vašeho košíku.
PA
black RAL 9005
AltText

A9161004

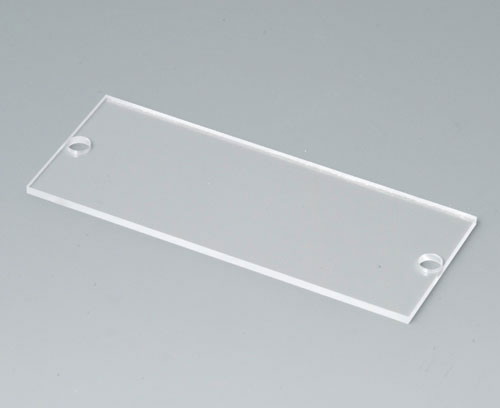

Display window N The display window protects the installed display. For glueing the display window there's an adhesive foil (A9161005) available.

Supply 1 display window

Zavřít

A9161004

Display window N
Produkt byl přidán do Vašeho košíku.
Acrylglas
transparent
90x36x2mm
AltText

A9161005

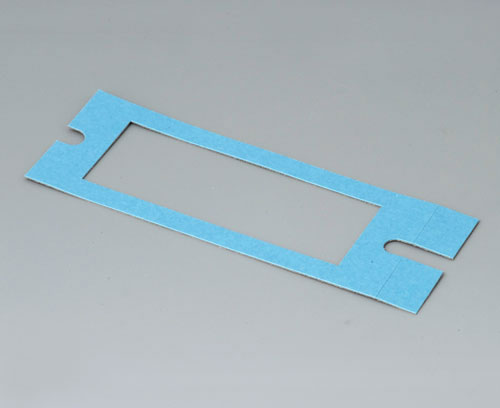

Adhesive foil N Fastening the display window (A9061004).

Supply 1 adhesive foil

Zavřít

A9161005

Adhesive foil N
Produkt byl přidán do Vašeho košíku.
AltText

A9190013

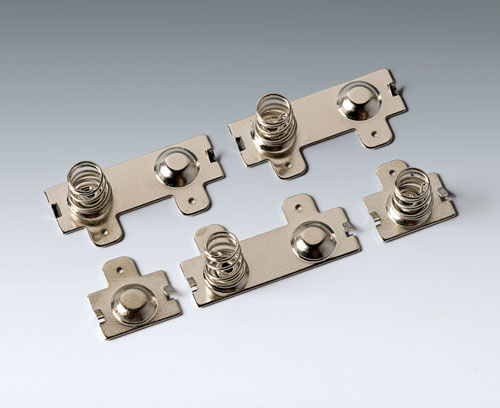

Set of battery clips, 4 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 2 double contact left, 1 single contact positive, 1 single contact negative

Zavřít

A9190013

Set of battery clips, 4 x AA
Produkt byl přidán do Vašeho košíku.
Steel
nickel-plated
AltText

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Zavřít

A9210290

Anti-slide feet 9.5 x 3.8 mm
Produkt byl přidán do Vašeho košíku.
transparent
AltText

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

Zavřít

A9250250

Battery spacer
Produkt byl přidán do Vašeho košíku.
PE foam
50x25x4mm
AltText

A9250807

Tilt foot bar Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Zavřít

A9250807

Tilt foot bar
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
AltText

A9250809

Tilt foot bar Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Zavřít

A9250809

Tilt foot bar
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
AltText

A9250817

Tilt foot bar Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Zavřít

A9250817

Tilt foot bar
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
AltText

A9250819

Tilt foot bar Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Zavřít

A9250819

Tilt foot bar
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
AltText

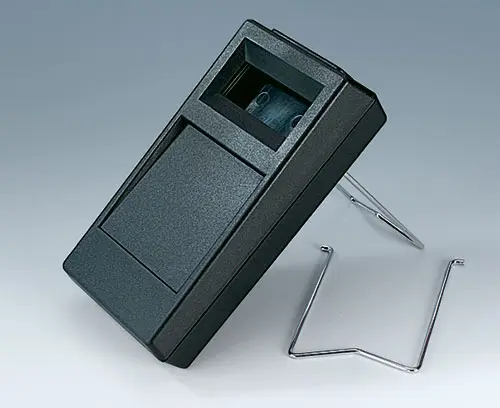

A9361009

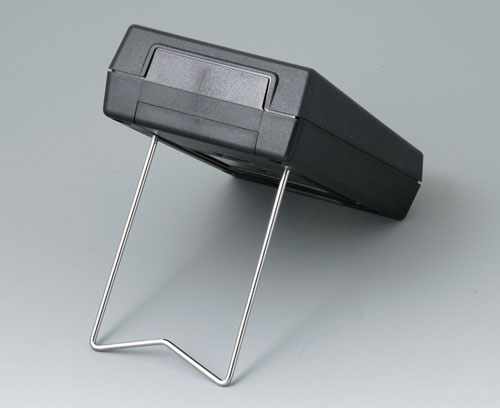

Tilt foot bar For ergonomical canting.

Supply 1 tilt foot bar

Zavřít

A9361009

Tilt foot bar
Produkt byl přidán do Vašeho košíku.
Steel
chromed

Možnosti přizpůsobení pro Uni-Mess-Box

Co ještě potřebujete pro svůj vlastní velmi osobní produkt? Můžeme dodat zapouzdření a ladicí knoflíky se všemi nezbytnými úpravami pro montáž vašich elektronických součástek.
