Flat-Pack Case

Praktické plastové pouzdro

OKW FLAT-PACK CASE jsou velmi cenná zapouzdření pro vaši elektroniku.

  • Různé velikosti, výšky a typy pro stolní a nástěnné jednotky
  • Bočně otevřené spodní části, obzvláště výhodné pro všechny montážní a servisní práce

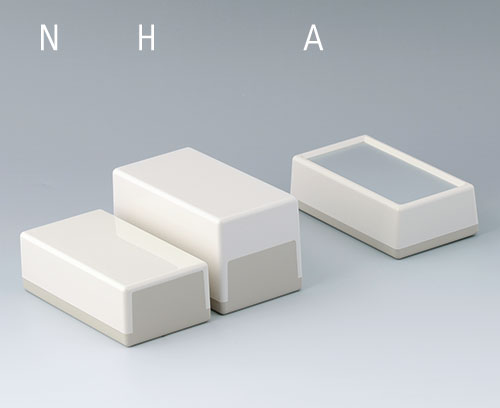

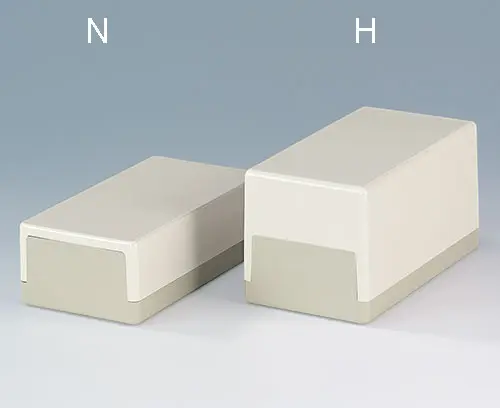

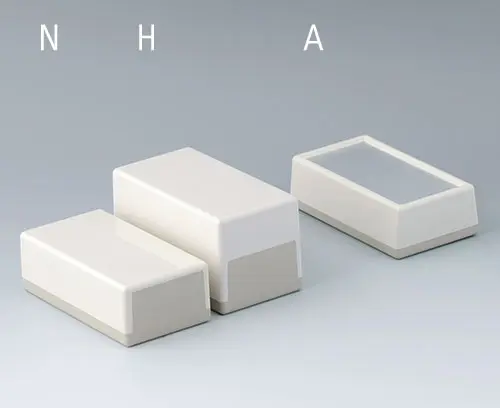

  • S nízkým (N) a vyšším (H) horním

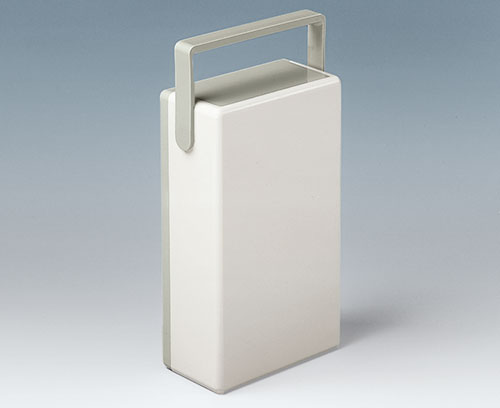

  • Verze s rukojetí pro snadné použití v šikmém nebo pohodlném provedení

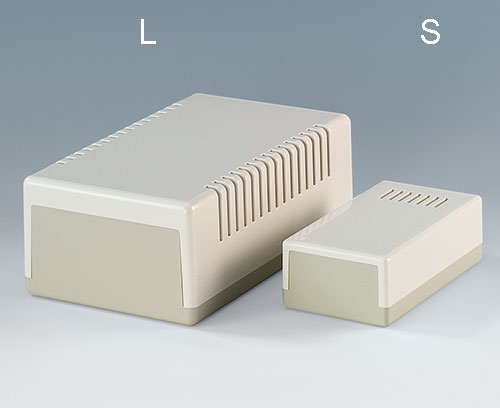

  • S ventilačními otvory pro komponenty generující teplo (189 L)
  • S drážkami na vrchní straněpro malá zařízení se signálním tónem (120 S)

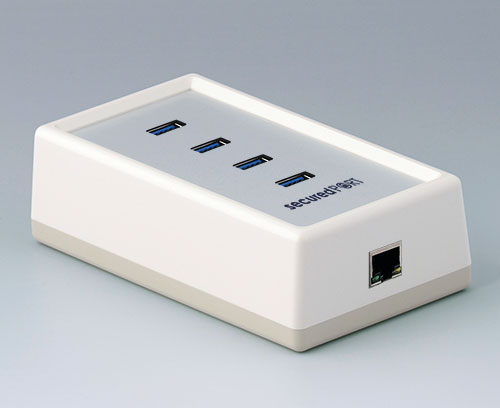

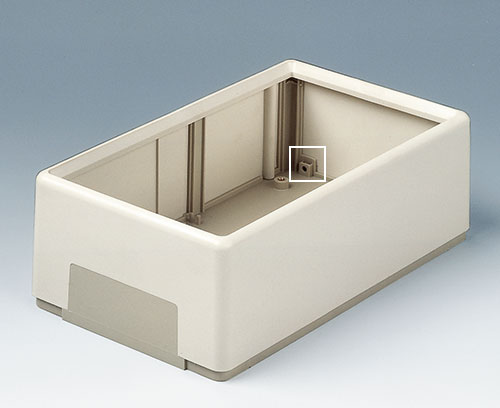

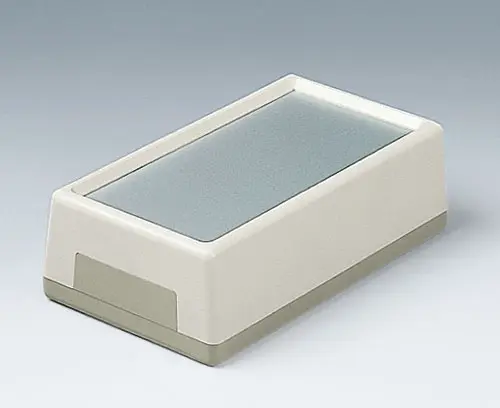

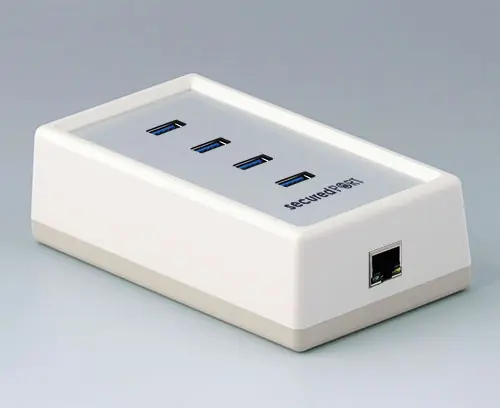

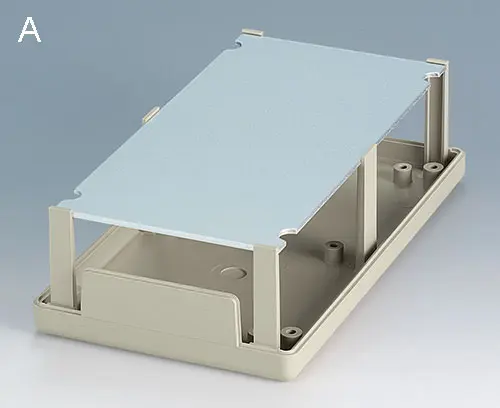

  • Typy A pro použití s hliníkovými čelními panely; Ovládací prvky a štítky jsou chráněny zvýšenou hranou pouzdra
  • Stupeň krytí IP 40 (bez otvorů)

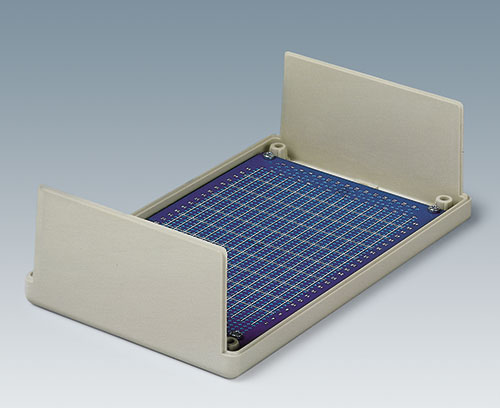

  • Montážní sloupky pro desky s plošnými spoji a komponenty
Generovat PDF

Obory aplikací

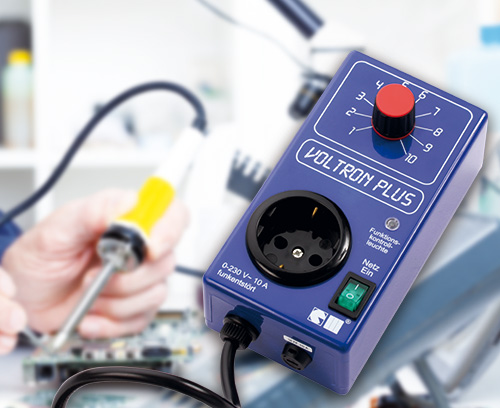

Univerzální pouzdra pro elektronická a elektrická zařízení, kontrolní technologii jako řídicí zařízení, signalizační systémy, ovládací prvky, lékařská a laboratorní technika, počítačové periferie, atd.

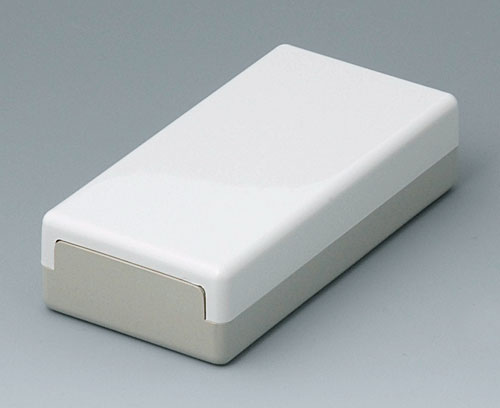

A9010065 FLAT-PACK CASES 100 N, Vers. I

A9010065

FLAT-PACK CASES 100 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

A9010065

FLAT-PACK CASES 100 N, Vers. I
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
100x50x25mm

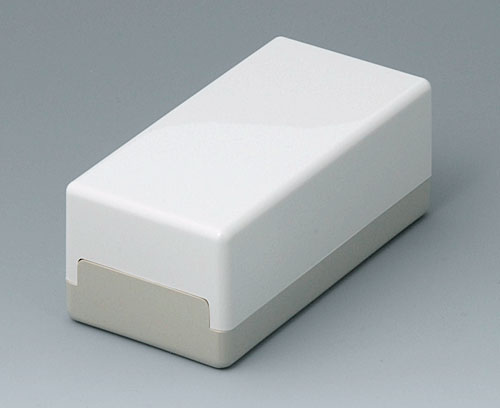

A9011065 FLAT-PACK CASES 100 H, Vers. I

A9011065

FLAT-PACK CASES 100 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

A9011065

FLAT-PACK CASES 100 H, Vers. I
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
100x50x40mm

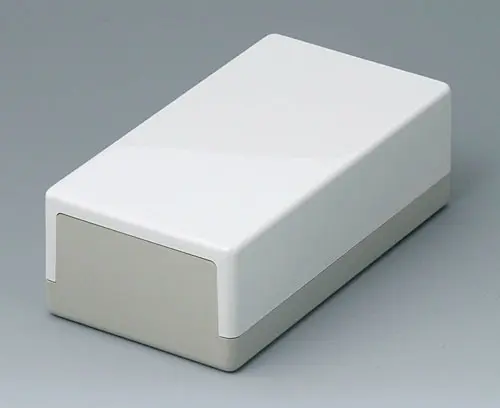

A9020065 FLAT-PACK CASES 120 N, Vers. I

A9020065

FLAT-PACK CASES 120 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

A9020065

FLAT-PACK CASES 120 N, Vers. I
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
120x65x40mm

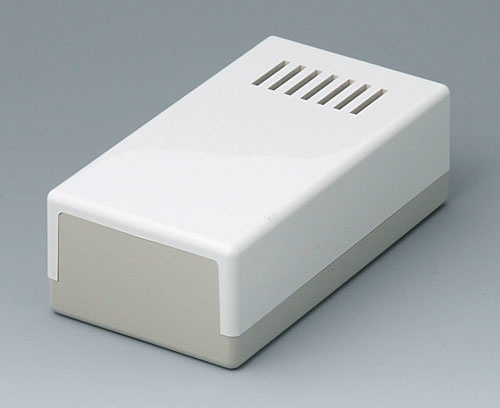

A9020265 FLAT-PACK CASE 120 S

A9020265

FLAT-PACK CASE 120 S Two-piece case. Top part with ventilation slots and open side base. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

A9020265

FLAT-PACK CASE 120 S
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
120x65x40mm

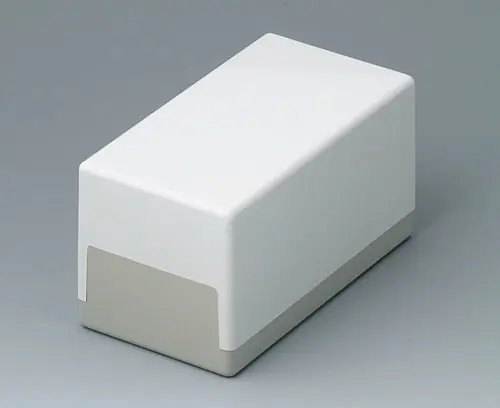

A9021065 FLAT-PACK CASE 120 H, Vers. I

A9021065

FLAT-PACK CASE 120 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

A9021065

FLAT-PACK CASE 120 H, Vers. I
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
120x65x65mm

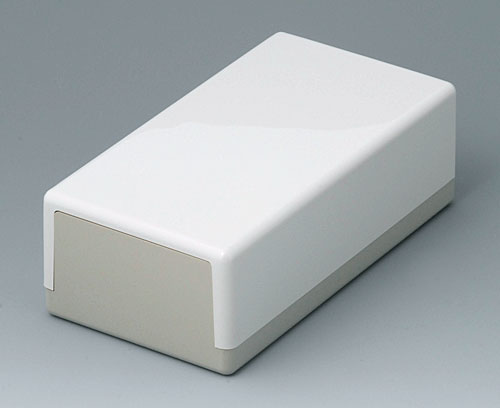

A9030065 FLAT-PACK CASES 150 N, Vers. I

A9030065

FLAT-PACK CASES 150 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

A9030065

FLAT-PACK CASES 150 N, Vers. I
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
150x80x50mm

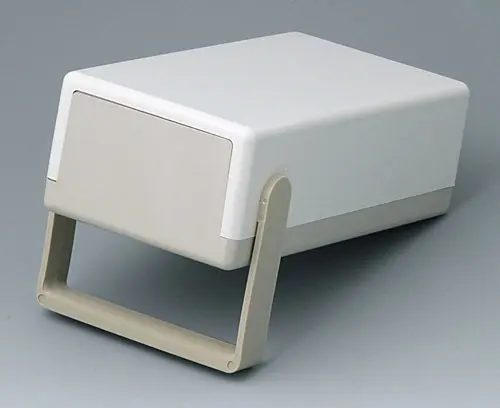

A9030165 FLAT-PACK CASES 150 N, Vers. II

A9030165

FLAT-PACK CASES 150 N, Vers. II Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version With handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

A9030165

FLAT-PACK CASES 150 N, Vers. II
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
150x80x50mm
A9031065 FLAT-PACK CASE 150 H, Vers. I

A9031065

FLAT-PACK CASE 150 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version without handle bar.

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

A9031065

FLAT-PACK CASE 150 H, Vers. I
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
150x80x80mm

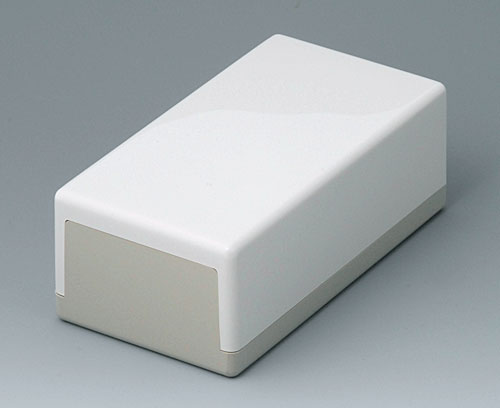

A9032065 FLAT-PACK CASES 150 N, Vers. I

A9032065

FLAT-PACK CASES 150 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

A9032065

FLAT-PACK CASES 150 N, Vers. I
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
150x80x55mm

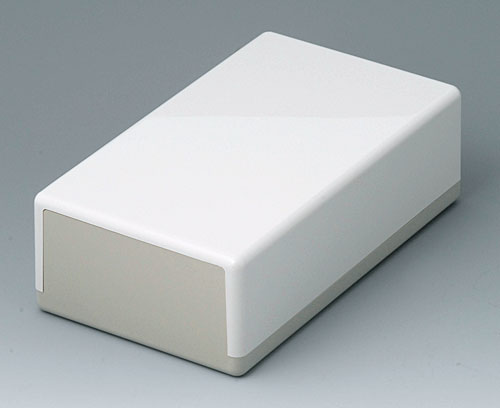

A9040065 FLAT-PACK CASES 189 N, Vers. I

A9040065

FLAT-PACK CASES 189 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

A9040065

FLAT-PACK CASES 189 N, Vers. I
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
189x110x60mm

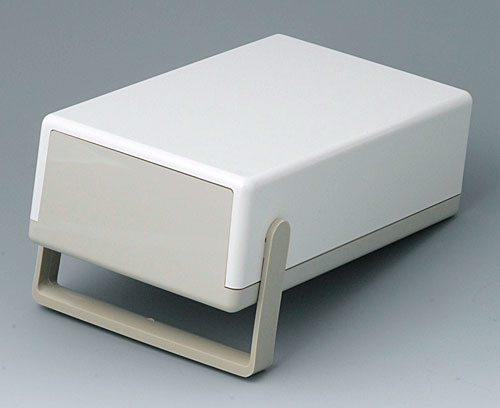

A9040165 FLAT-PACK CASES 189 N, Vers. II

A9040165

FLAT-PACK CASES 189 N, Vers. II Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version With handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

A9040165

FLAT-PACK CASES 189 N, Vers. II
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
189x110x60mm
A9041065 FLAT-PACK CASE 189 H, Vers. I

A9041065

FLAT-PACK CASE 189 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

A9041065

FLAT-PACK CASE 189 H, Vers. I
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
189x110x97mm

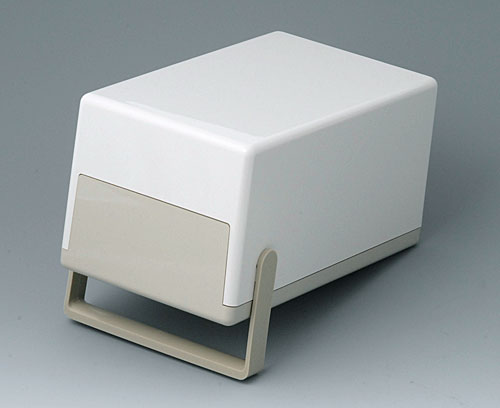

A9041165 FLAT-PACK CASE 189 H, Vers. II

A9041165

FLAT-PACK CASE 189 H, Vers. II Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version With handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

A9041165

FLAT-PACK CASE 189 H, Vers. II
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
189x110x97mm

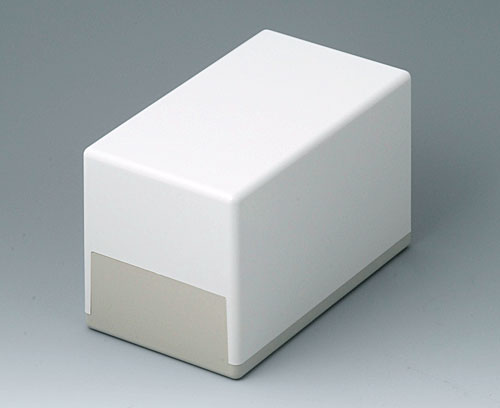

A9042065 FLAT-PACK CASE 189 H, Vers. I

A9042065

FLAT-PACK CASE 189 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

A9042065

FLAT-PACK CASE 189 H, Vers. I
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
189x110x120mm

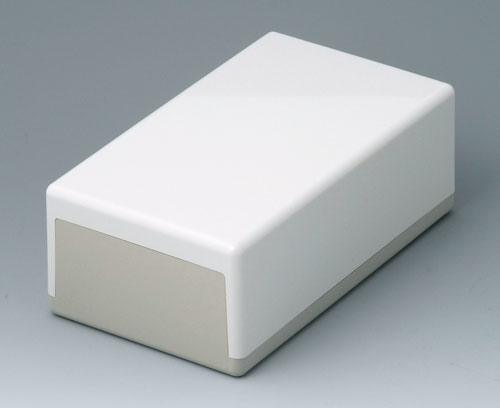

A9043065 FLAT-PACK CASES 189 N, Vers. I

A9043065

FLAT-PACK CASES 189 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

A9043065

FLAT-PACK CASES 189 N, Vers. I
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
189x110x70mm

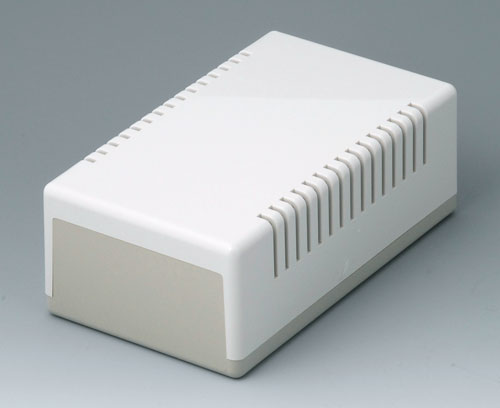

A9043265 FLAT-PACK CASE 189 L

A9043265

FLAT-PACK CASE 189 L Two-piece case. Top part with ventilation slots and open side base. Fastenings pillars for PCB mounting.

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

A9043265

FLAT-PACK CASE 189 L
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
189x110x70mm

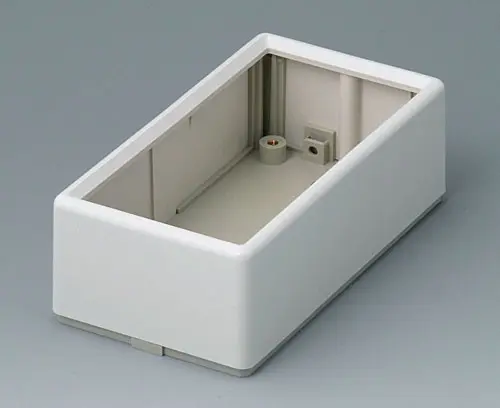

A9520165 FLAT-PACK CASE 120 A

A9520165

FLAT-PACK CASE 120 A Two-piece case. The front pane,l see accessory A9195201, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit

A9520165

FLAT-PACK CASE 120 A
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
120x65x40mm

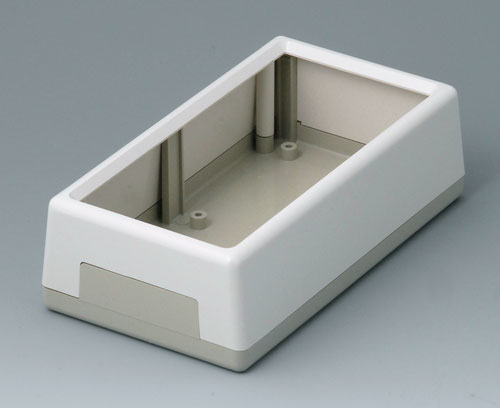

A9530165 FLAT-PACK CASE 150 A

A9530165

FLAT-PACK CASE 150 A Two-piece case. The front panel, see accessory A9195301, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit

A9530165

FLAT-PACK CASE 150 A
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
150x85x45mm
A9540165 FLAT-PACK CASE 210 A

A9540165

FLAT-PACK CASE 210 A Two-piece case. The front panel, see accessory A9195401, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit

A9540165

FLAT-PACK CASE 210 A
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
210x125x70mm
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Produkt byl přidán do Vašeho košíku.
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
Produkt byl přidán do Vašeho košíku.
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0308132

Self-tapping screw 3 x 8 mm (T10)
Produkt byl přidán do Vašeho košíku.

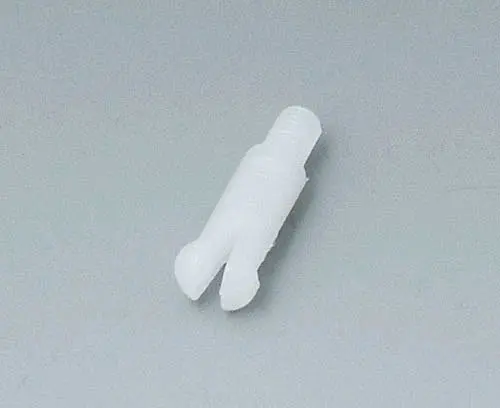

A9100008 Snap-lock

A9100008

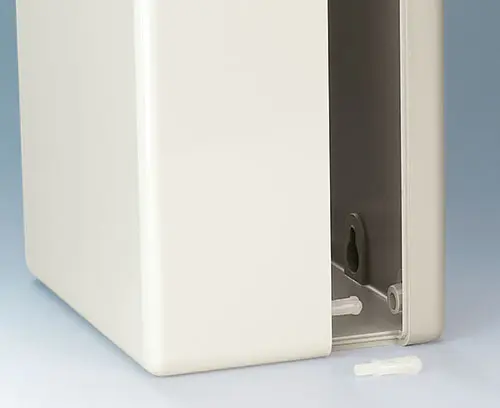

Snap-lock Replaces the standard screw fixing of the case. Suitable for FLAT-PACK CASES A9040065-A9043265.

Supply 1 snap lock

A9100008

Snap-lock
Produkt byl přidán do Vašeho košíku.

natural-coloured

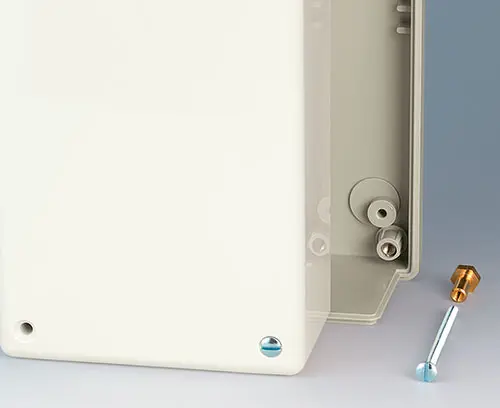

A9120000 Assembly kit for wall mounting

A9120000

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9011... and A9020... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts

A9120000

Assembly kit for wall mounting
Produkt byl přidán do Vašeho košíku.

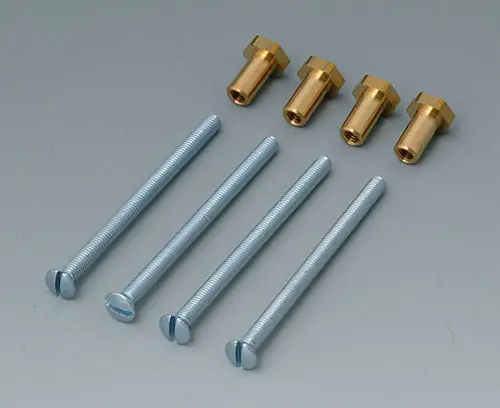

A9130000 Assembly kit for wall mounting

A9130000

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9030... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts

A9130000

Assembly kit for wall mounting
Produkt byl přidán do Vašeho košíku.

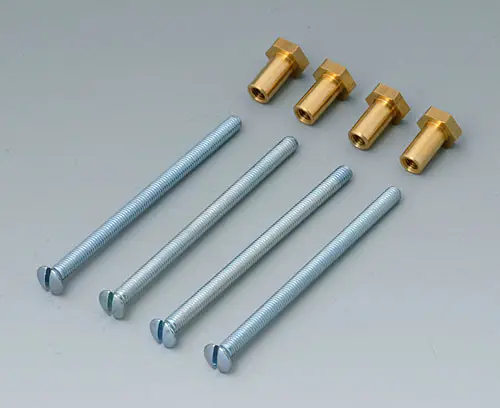

A9132000 Assembly kit for wall mounting

A9132000

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9032... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts

A9132000

Assembly kit for wall mounting
Produkt byl přidán do Vašeho košíku.
A9140000 Assembly kit for wall mounting

A9140000

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9040... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts

A9140000

Assembly kit for wall mounting
Produkt byl přidán do Vašeho košíku.

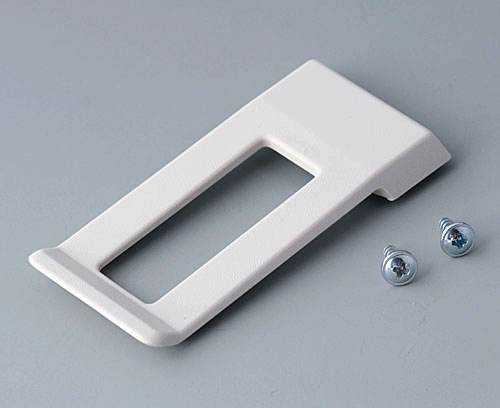

A9172107 Belt/Pocket clip

A9172107

Belt/Pocket clip Universal clip. Fixing in two location holes (bore distance 20 mm, 2 x diameter = 4.2 mm).
Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.

Supply 1 belt/pocket clip, assembly kit

A9172107

Belt/Pocket clip
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
62x30mm

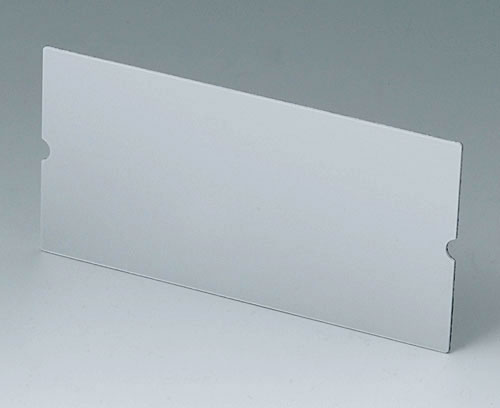

A9195201 Front panel 120 A

A9195201

Front panel 120 A Front panel for FLAT-PACK CASE A9520165.

Supply 1 front panel

A9195201

Front panel 120 A
Produkt byl přidán do Vašeho košíku.

matt anodised
113x58x1mm
A9195301 Front panel 150 A

A9195301

Front panel 150 A Front panel for FLAT-PACK CASE A9530165.

Supply 1 front panel

A9195301

Front panel 150 A
Produkt byl přidán do Vašeho košíku.

matt anodised
141,8x71,6x1,5mm

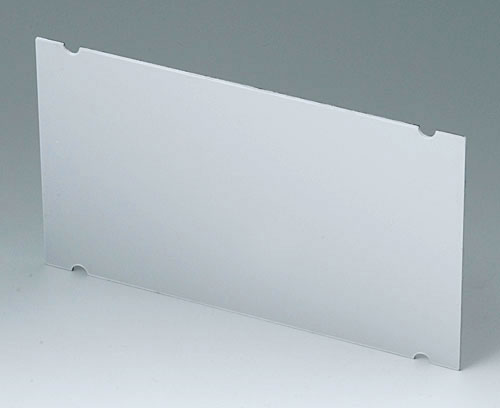

A9195401 Front panel 210 A

A9195401

Front panel 210 A Front panel for FLAT-PACK CASE A9540165.

Supply 1 front panel

A9195401

Front panel 210 A
Produkt byl přidán do Vašeho košíku.

matt anodised
201x116x1,5mm
A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

A9207150

Anti-slide feet 6.5 x 2 mm
Produkt byl přidán do Vašeho košíku.
transparent
A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

A9210290

Anti-slide feet 9.5 x 3.8 mm
Produkt byl přidán do Vašeho košíku.
transparent

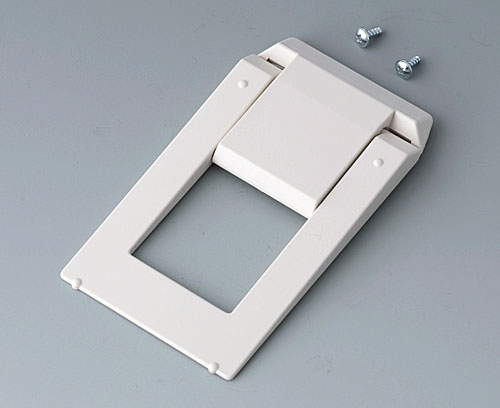

A9250807 Tilt foot bar

A9250807

Tilt foot bar Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

A9250807

Tilt foot bar
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002

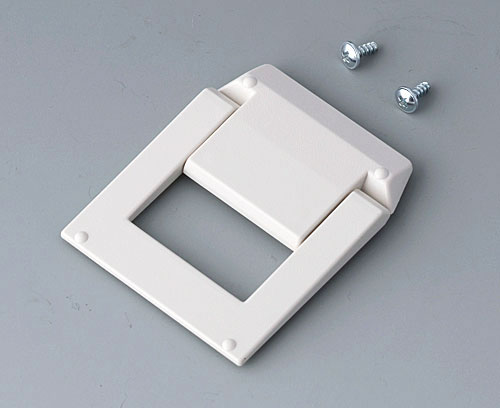

A9250817 Tilt foot bar

A9250817

Tilt foot bar Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

A9250817

Tilt foot bar
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
B1350048 Wall suspension elements

B1350048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit

B1350048

Wall suspension elements
Produkt byl přidán do Vašeho košíku.

pebble grey RAL 7032
B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

B1360048

Wall suspension elements
Produkt byl přidán do Vašeho košíku.

pebble grey RAL 7032

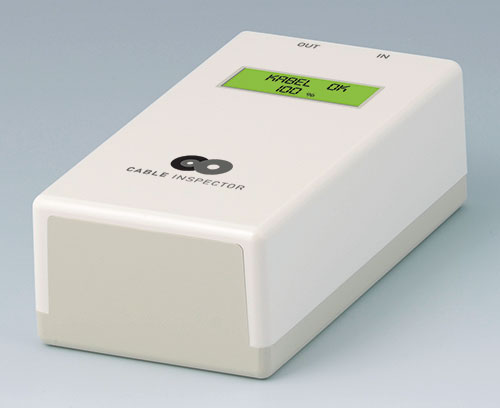

Možnosti přizpůsobení pro Flat-Pack Case

Co ještě potřebujete pro svůj vlastní velmi osobní produkt? Můžeme dodat zapouzdření a ladicí knoflíky se všemi nezbytnými úpravami pro montáž vašich elektronických součástek.
