DIN modulární skříňka

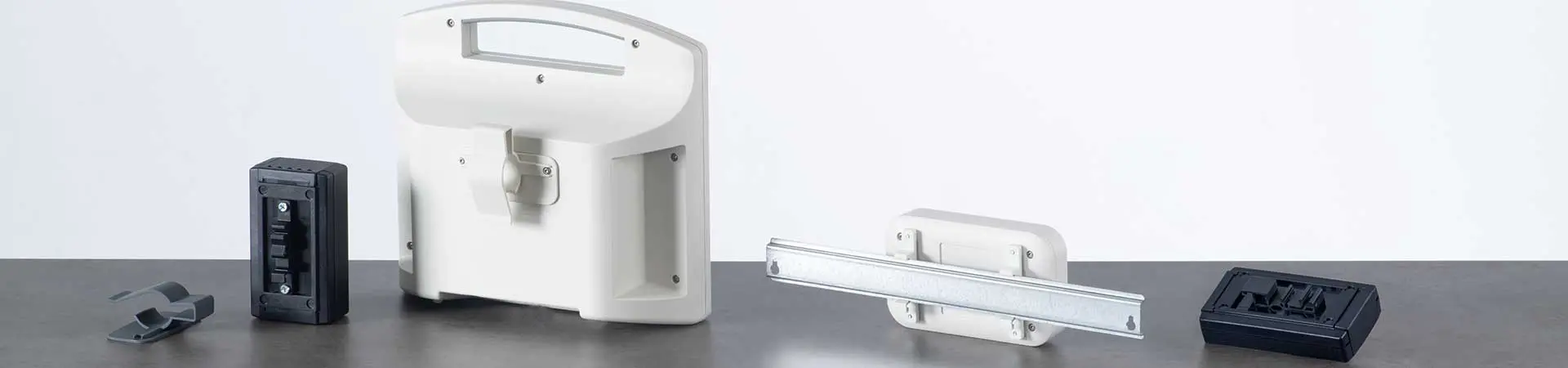

Úchyty, uchycení na trubku
- Upevnění pro DIN lišty podle DIN EN 60715 TH35 a G32
- Upevňovací svorka kulatých trubek do ø 32 mm / Vodicí kolejnice DIN EN ISO 19054
- Držák pro montáž na sloup nebo stožár pro všestranné použití
A9325018

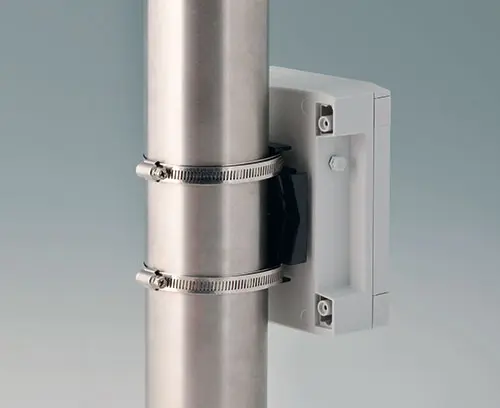

Pole/mast mounting bracket

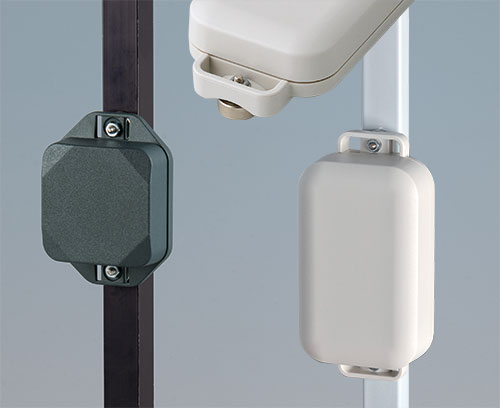

For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.
Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.
Supply 1 pole/mast mounting bracket
A9325018
Pole/mast mounting bracketProdukt byl přidán do Vašeho košíku.
anthracite grey RAL 7016
100x100x20mm

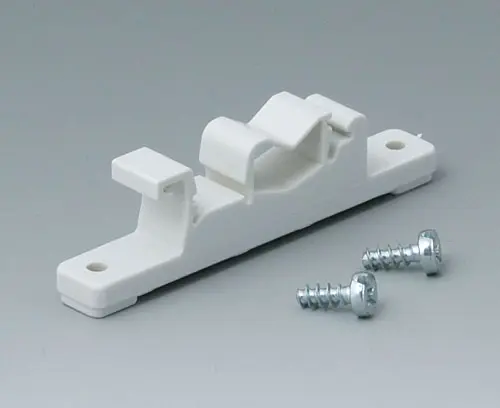

B1300017
Fastening element for DIN-Rails

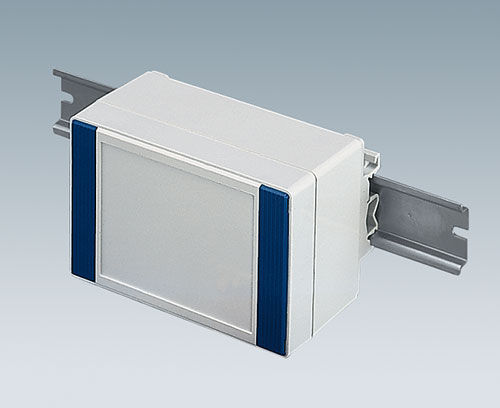

Especially for TOPTEC starting from size 123 F/H and EVOTEC 100/125/150. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.
Supply 1 piece incl, assembly kit
B1300017
Fastening element for DIN-RailsProdukt byl přidán do Vašeho košíku.
off-white RAL 9002

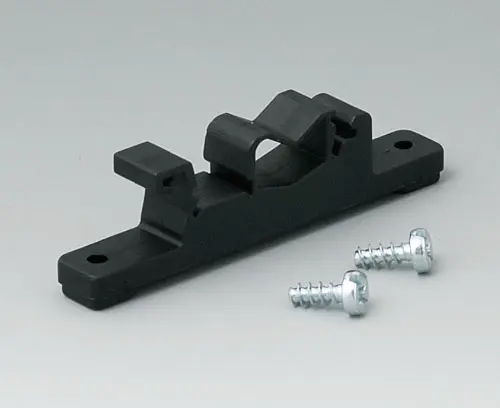

B1300019
Fastening element for DIN-Rails
Especially for TOPTEC starting from size 123 F/H. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.
Supply 1 piece incl, assembly kit
B1300019
Fastening element for DIN-RailsProdukt byl přidán do Vašeho košíku.
black RAL 9005

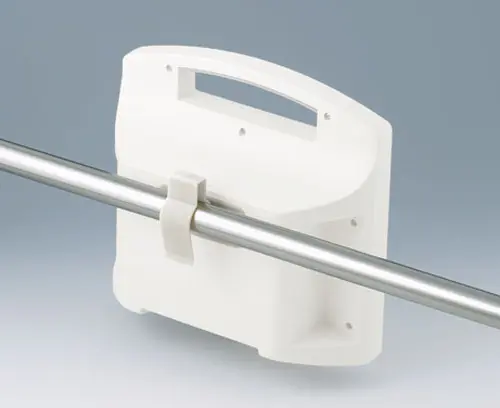

B4308237
Holding clamps

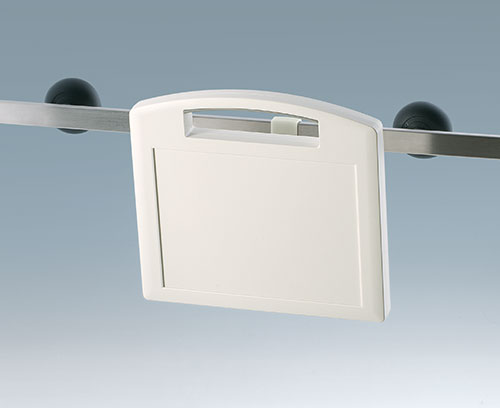

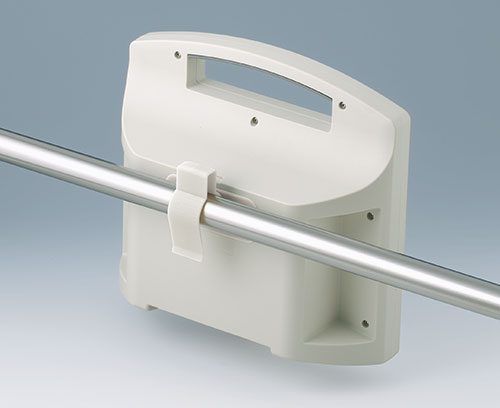

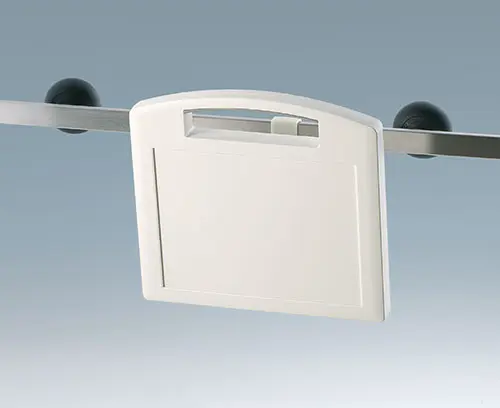

For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.
Supply 1 holding clamp, assembly kit
B4308237
Holding clampsProdukt byl přidán do Vašeho košíku.
off-white RAL 9002

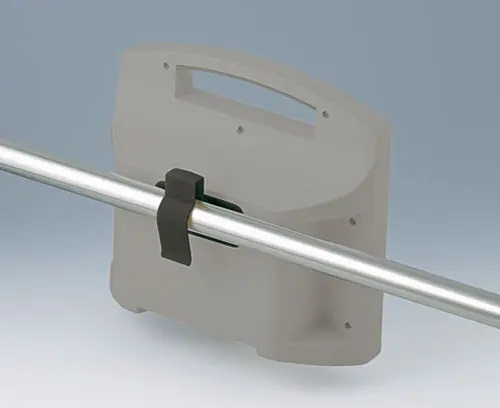

B4308238
Holding clamps
For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.
Supply 1 holding clamp, assembly kit
B4308238
Holding clampsProdukt byl přidán do Vašeho košíku.
lava
B6811751

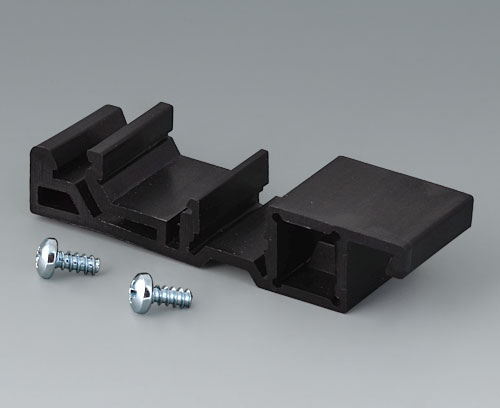

DIN rail adapter
Universal suspension element suitable for small plastic enclosures. Suitable for DIN EN 60715 (TH35, TH15 and G32). 2 screws for case assembly for wall thickness 3 mm. Locating holes see drawing.
Supply 1 piece, 2 screws
B6811751
DIN rail adapterProdukt byl přidán do Vašeho košíku.
black RAL 9005
C2201088
Fastening elements to DIN-Rails

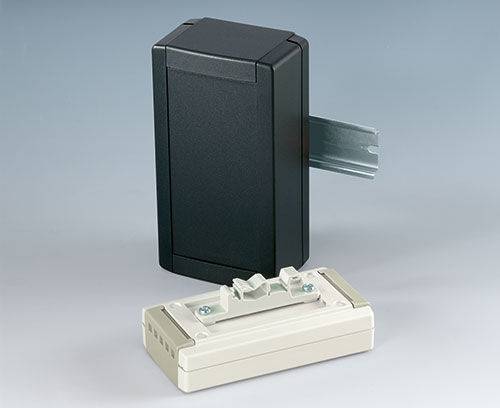

For fastening the cases to DIN-rails according to DIN EN 60 715 TH35. For ROBUST-BOX width 80.
Supply 2 fastening elements, assembly kit
C2201088
Fastening elements to DIN-RailsProdukt byl přidán do Vašeho košíku.
light grey RAL 7035
C2203128
Fastening elements to DIN-Rails
For fastening the cases to DIN-rails according to DIN EN 60715 TH35. For ROBUST-BOX width 120.
Supply 2 fastening elements, assembly kit
C2203128
Fastening elements to DIN-RailsProdukt byl přidán do Vašeho košíku.
light grey RAL 7035
C2204168
Fastening elements to DIN-Rails
For fastening the cases to DIN-rails according to DIN EN 60715 TH35. For ROBUST-BOX width 160.
Supply 2 fastening elements, assembly kit
C2204168
Fastening elements to DIN-RailsProdukt byl přidán do Vašeho košíku.
light grey RAL 7035
Možnosti přizpůsobení pro Úchyty, uchycení na trubku
Co ještě potřebujete pro svůj vlastní velmi osobní produkt? Můžeme dodat zapouzdření a ladicí knoflíky se všemi nezbytnými úpravami pro montáž vašich elektronických součástek.
