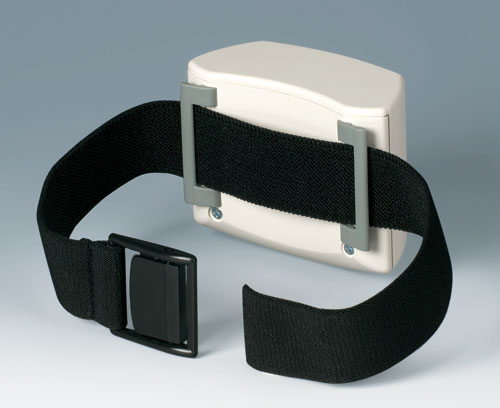

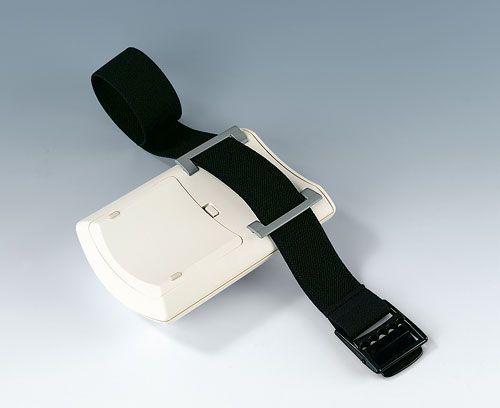

B7110129 Belt strap

B7110129

Belt strap

Elastic strap with clamp lock.

Supply

1 belt strap

  • To be used for
B7000107 ERGO-CASE S, flat

B7000107

ERGO-CASE S, flat Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.

Version With flat top part

Supply 1 top and 1 bottom part, assembly kit

Zavřít

B7000107

ERGO-CASE S, flat
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
80x96x32mm
IP 54 opt.
B7000109 ERGO-CASE S, flat

B7000109

ERGO-CASE S, flat Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.

Version With flat top part

Supply 1 top and 1 bottom part, assembly kit

Zavřít

B7000109

ERGO-CASE S, flat
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
80x96x32mm
IP 54 opt.
B7005107 ERGO-CASE S, high

B7005107

ERGO-CASE S, high Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.

Version With high top part

Supply 1 top and 1 bottom part, assembly kit

Zavřít

B7005107

ERGO-CASE S, high
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
80x96x44mm
IP 54 opt.
B7005109 ERGO-CASE S, high

B7005109

ERGO-CASE S, high Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.

Version With high top part

Supply 1 top and 1 bottom part, assembly kit

Zavřít

B7005109

ERGO-CASE S, high
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
80x96x44mm
IP 54 opt.
B7010107 ERGO-CASE M, flat

B7010107

ERGO-CASE M, flat Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side. Battery compartment lid snapped-on (battery compartment as accessory).

Version With flat top part

Supply 1 top and 1 bottom part, battery compartment lid, assembly kit

Zavřít

B7010107

ERGO-CASE M, flat
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
150x100x40mm
IP 54 opt.
B7010109 ERGO-CASE M, flat

B7010109

ERGO-CASE M, flat Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side. Battery compartment lid snapped-on (battery compartment as accessory).

Version With flat top part

Supply 1 top and 1 bottom part, battery compartment lid, assembly kit

Zavřít

B7010109

ERGO-CASE M, flat
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
150x100x40mm
IP 54 opt.
B7010207 ERGO-CASE M, flat

B7010207

ERGO-CASE M, flat Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.

Version With flat top part

Supply 1 top and 1 bottom part, assembly kit

Zavřít

B7010207

ERGO-CASE M, flat
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
150x100x40mm
IP 54 opt.
B7010209 ERGO-CASE M, flat

B7010209

ERGO-CASE M, flat Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.

Version With flat top part

Supply 1 top and 1 bottom part, assembly kit

Zavřít

B7010209

ERGO-CASE M, flat
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
150x100x40mm
IP 54 opt.
B7015107 ERGO-CASE M, high

B7015107

ERGO-CASE M, high Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side. Battery compartment lid snapped-on (battery compartment as accessory).

Version With high top part

Supply 1 top and 1 bottom part, battery compartment lid, assembly kit

Zavřít

B7015107

ERGO-CASE M, high
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
150x100x55mm
IP 54 opt.
B7015109 ERGO-CASE M, high

B7015109

ERGO-CASE M, high Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side. Battery compartment lid snapped-on (battery compartment as accessory).

Version With high top part

Supply 1 top and 1 bottom part, battery compartment lid, assembly kit

Zavřít

B7015109

ERGO-CASE M, high
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
150x100x55mm
IP 54 opt.
B7015207 ERGO-CASE M, high

B7015207

ERGO-CASE M, high Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.

Version With high top part

Supply 1 top and 1 bottom part, assembly kit

Zavřít

B7015207

ERGO-CASE M, high
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
150x100x55mm
IP 54 opt.
B7015209 ERGO-CASE M, high

B7015209

ERGO-CASE M, high Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.

Version With high top part

Supply 1 top and 1 bottom part, assembly kit

Zavřít

B7015209

ERGO-CASE M, high
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
150x100x55mm
IP 54 opt.
B7040227 ERGO-CASE XS

B7040227

ERGO-CASE XS Three-part enclosure in ergonomic design to wear on the body. Wrist strap as accessories. TPE ring for a pleasant touch sensation. Fastening pillars and fixing supports for PCBs and integrated parts in the bottom and top part. Recessed operating area for the protection of the membrane keyboard.

Version TPE ring with two eyelet holes

Supply top and bottom part, ring, assembly kit

Zavřít

B7040227

ERGO-CASE XS
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
82x56x24mm
IP 42

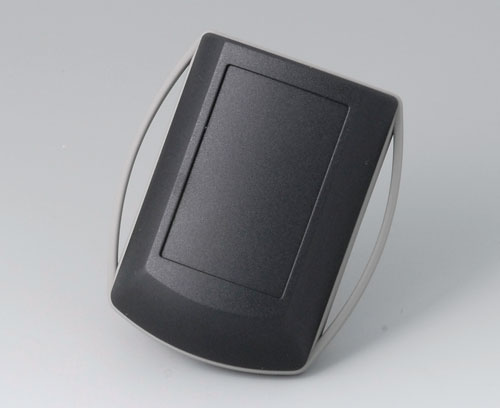

B7040229 ERGO-CASE XS

B7040229

ERGO-CASE XS Three-part enclosure in ergonomic design to wear on the body. Wrist strap as accessories. TPE ring for a pleasant touch sensation. Fastening pillars and fixing supports for PCBs and integrated parts in the bottom and top part. Recessed operating area for the protection of the membrane keyboard.

Version TPE ring with two eyelet holes

Supply top and bottom part, ring, assembly kit

Zavřít

B7040229

ERGO-CASE XS
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
82x56x24mm
IP 42
B7110028 Fastening elements L / M / S

B7110028

Fastening elements L / M / S To fix the strap/belt or secure storage of the cases with wall suspension element. Max. size of the strap/belt: height 35 mm, thickness 3 mm. Easy to mount. In this case the premoulded center holes in the bottom part have to be opened by drilling or punching.

Supply 2 fixings, 1 assembly kit

Zavřít

B7110028

Fastening elements L / M / S
Produkt byl přidán do Vašeho košíku.
PA 6
volcano
  • Technická data
  • Kupní data
Length
450 mm
Width
35 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
19 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
