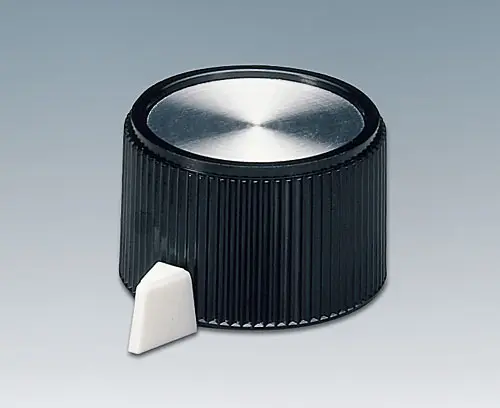

A1318560 TUNING KNOB, with latersl screw fixing

A1318560

TUNING KNOB, with latersl screw fixing

Suitable for rotary potentiometer with round shaft ends and indicator. Insert embellisher aluminium.

Supply

1 tuning knob

  • Components/Accessories
  • View Customising Options

Accessory

A1300040 Insert

A1300040

Insert Universally usable for reducing the center hole from 6 to 4 mm.

Supply 1 reduction insert

Zavřít

A1300040

Insert
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
black RAL 9005
7,4x7mm
Otvor 4mm

Customising options for A1318560

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Kupní data
Barva
black/alu
Diameter
23,9 mm
Height
16 mm
Bore hole
6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
7,8 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Taiwan
