B3120167
Sloping control panel M, flat/high

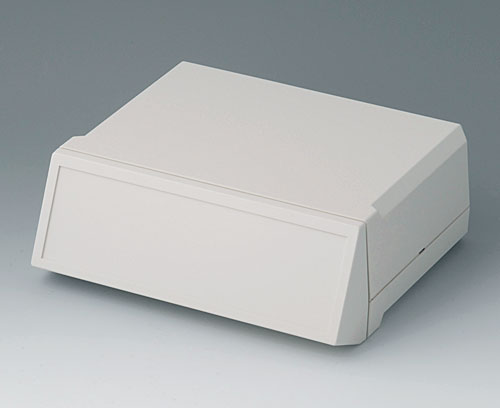

Suitable for MOTEC M B3020127 and B3020147 with flat base and high top part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.
Supply1 sloping control panel
2D PDF Zobrazení
3D/2D ke stažení
3D/2D ke stažení
Generovat PDF pro B3120167
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Přidat do košíku
B3020127
MOTEC M, flat/high
Desk top case with flat base and high top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.
Supply 1 top and base part, 4 self-adhesive case feet
B3020127
MOTEC M, flat/highProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
205x140x75mm
B3020147
MOTEC M, with handle bar
Desk top case with handle bar in version with flat base and high top part. With 30 degress indexing. Front and rear part open. Screw tower for PCBs and vertical guides for mounting panels. Front panels as accessory.
Supply 1 top and base part, handle bar, 4 self-adhesive case feet
B3020147
MOTEC M, with handle barProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
205x140x75mm
Customising options for B3120167
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technická data
-
Nákresy / Info
- Kupní data
Keypad length
186,7 mm
Keypad width
54,4 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 226 KB
- AutoCAD DWG-File 628 KB
- AutoCAD DXF-File 2 146 KB
Weight/1 part
74 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
