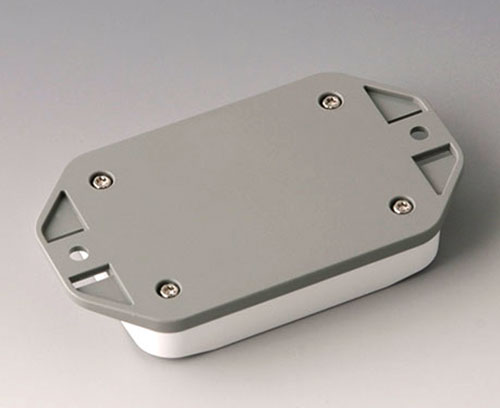

B1824126 MINI-DATA-BOX EF50, flat, with flanges

B1824126

MINI-DATA-BOX EF50, flat, with flanges

2-part plastic enclosure with flat top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version

Bottom part with flanges, top part flat

Supply

Top and bottom parts, assembly kit

  • Components/Accessories
  • View Customising Options

Accessory "protection"

B1924101 Sealing E50/EF50

B1924101

Sealing E50/EF50

Use: increases the protection class of MINI-DATA-BOX E50 and EF50. Fits to the groove in the bottom part of the enclosure.

Supply 1 seal
