B4144106 Front panel M

B4144106

Front panel M

Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.

Supply

1 front panel, assembly kit

  • Components/Accessories
  • View Customising Options

Mobile s prostoru pro baterie

Mobile bez prostoru pro baterie

Mobile s nabíjecí stanicí

Minimum components (for single parts)
1 bottom part, vers. I.
1 front design (cover or front panel Al).
1 battery compartment and lid or bottom panel with recess.
1 base – station for mobile case –

or

1 bottom part, vers. II.
1 front design (front panel ABS or glass panel).
1 battery compartment and lid or bottom panel with handle recess.
1 base – station for mobile case –

System components to complete

B4044707 Bottom part M flat, version I

B4044707

Bottom part M flat, version I Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting cover or aluminium front panel (sep. article)

Supply 1 bottom part flat

Zavřít

B4044707

Bottom part M flat, version I
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
225x165x25,5mm
IP 54 opt.
B4044757 Bottom part M high, version I

B4044757

Bottom part M high, version I Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting cover or aluminium front panel (sep. article)

Supply 1 bottom part high

Zavřít

B4044757

Bottom part M high, version I
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
225x165x35,5mm
IP 54 opt.
B4044837 Base M - charging station, case deposit mobile

B4044837

Base M - charging station, case deposit mobile Assembly unit: Suitable for case with battery compartment or bottom panel with handle recess. Ergonomically designed for desktop and for wall mounting favorable. Can be equipped either for installing the case for desktop applications or with a snap-in mechanism for secure wall mounted and desktop applications. Case position vertically or horizontally, depending on the application - see assembly instruction. Contacts for simple data and charging current transfer as accessories.

Supply 1 base, 1 base cover, 2 covers, assembly kit

Zavřít

B4044837

Base M - charging station, case deposit mobile
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
153x153x70mm
B4144047 Battery compartment and lid M, 5 x AA

B4144047

Battery compartment and lid M, 5 x AA Assembly unit: suitable for bottom part vers. I and II, screw fixing. Battery clips for 5 x AA, tin-plated. Protection against incorrect polarity as well as anti-rotation device.

Supply 1 battery compartment and lid, assembly kit

Zavřít

B4144047

Battery compartment and lid M, 5 x AA
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002

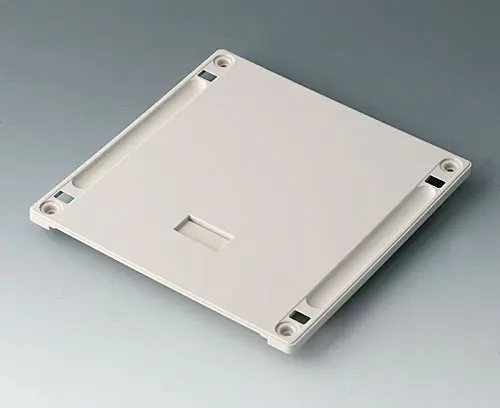

B4144167 Bottom panel with handle recess M

B4144167

Bottom panel with handle recess M Assembly unit: suitable for bottom part vers. I and II, screw fixing.

Supply 1 bottom panel, assembly kit

Zavřít

B4144167

Bottom panel with handle recess M
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002

Accessory "protection"

B4144005 Sealing M (bottom part - front design)

B4144005

Sealing M (bottom part - front design) For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).

Supply 1 sealing

Zavřít

B4144005

Sealing M (bottom part - front design)
Produkt byl přidán do Vašeho košíku.
SEBS (TPE)
B4144006 Sealing M (bottom part - base/bot. panel/bat. comp...)

B4144006

Sealing M (bottom part - base/bot. panel/bat. comp...) For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).

Supply 1 sealing

Zavřít

B4144006

Sealing M (bottom part - base/bot. panel/bat. comp...)
Produkt byl přidán do Vašeho košíku.
SEBS (TPE)

Accessory

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Zavřít

A9178007

Contacts, male
Produkt byl přidán do Vašeho košíku.
gold-plated
A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Zavřít

A9178008

Contacts, female
Produkt byl přidán do Vašeho košíku.
gold-plated

Mobile / na stěnu

Pouzdro se šroubovou konzolou

Pultové / na stěnu

Vestavěné pouzdro

Customising options for B4144106

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Drawings / Info
  • Kupní data
Materiál
Barva
matt anodised
Width
221,5 mm
Depth
161,5 mm
Height
2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
186 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
