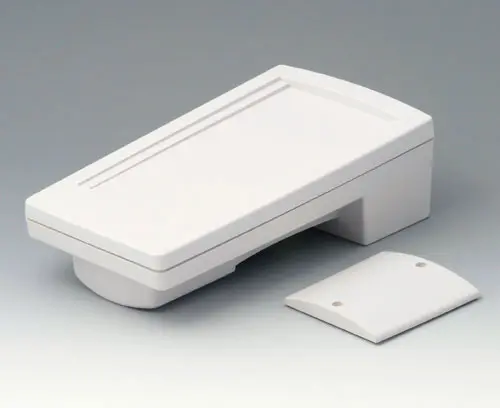

A9046107

HAND-TERMINAL M, Vers. I

Robust hand-held enclosure. Recessed operation area for membrane keyboards. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

Version

With closed operation area

Supply

top and bottom part, battery compartment lid, assembly kit incl. PCB-screws and rubber feet

2D PDF Zobrazení
3D PDF Zobrazení
3D/2D ke stažení

Generovat PDF pro A9046107

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

A9160003

Plug-in contact, 1 x 9 V (PP3)
Produkt byl přidán do Vašeho košíku.
A9161002 Set of battery clips, 2 x 9 V or 4 x AA

A9161002

Set of battery clips, 2 x 9 V or 4 x AA For contacting the batteries 2 x 9 V.
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.

Supply 4 single contacts

A9161002

Set of battery clips, 2 x 9 V or 4 x AA
Produkt byl přidán do Vašeho košíku.

tin-plated
A9174002 Battery compartment, 2 x 9 V

A9174002

Battery compartment, 2 x 9 V Application: for 2 x 9 V flat batteries (PP3).

Supply 1 battery compartment, assembly kit

A9174002

Battery compartment, 2 x 9 V
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
A9174003 Battery compartment, 1 x 9 V

A9174003

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

A9174003

Battery compartment, 1 x 9 V
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

A9174006

Set of battery clips, 1 x 9 V
Produkt byl přidán do Vašeho košíku.

tin-plated
A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

A9250250

Battery spacer
Produkt byl přidán do Vašeho košíku.

50x25x4mm
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

A9345217

Set of battery compartment, 4 x AA
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002

Accessory "protection"

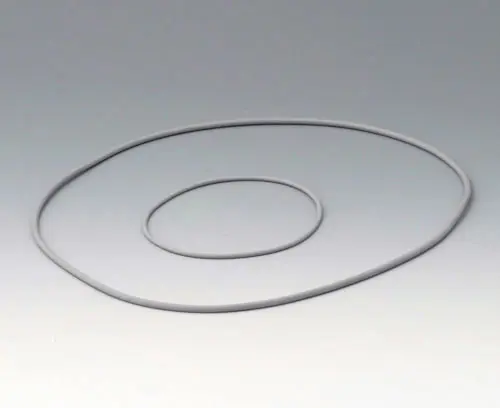

A9146106 Sealing kit M

A9146106

Sealing kit M For the case. For a higher protection class. Attention: for HAND-TERMINAL version II with frame cover for inserting an aluminium front panel additionally sealing A9146206 for the front panel necessary.

Supply 1 sealing kit

A9146106

Sealing kit M
Produkt byl přidán do Vašeho košíku.

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Produkt byl přidán do Vašeho košíku.
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
Produkt byl přidán do Vašeho košíku.
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0308132

Self-tapping screw 3 x 8 mm (T10)
Produkt byl přidán do Vašeho košíku.

Customising options for A9046107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Materiál

Třída produktu

Necessary accessories: sealing kit for the enclosure
Barva
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Délka
220 mm
Šířka
120 mm
Výška
65 mm
PCB length, base
206 mm
PCB width, base
93 mm
PCB length, top
206 mm
PCB width, top
93 mm
Keypad length
170 mm
Keypad width
70 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

  • 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 1 221 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

External Accessory - miscellaneous

Weight/1 part
301 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro A9046107 a nezapomeňte si vyžádat nabídku!
