DIN modulární skříňka
A9433107

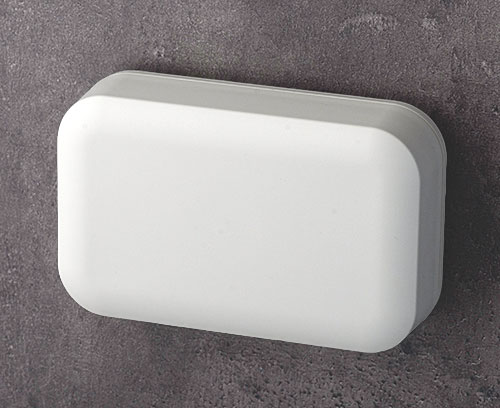

EVOTEC 125, Vers. I
2-part plastic enclosure with flat top part, height 37. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.
VersionTop part "Flat"
SupplyTop and bottom parts, assembly kit incl. 4 self-adhesive rubber feet
Generovat PDF pro A9433107
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Accessory "protection"
A9503030
Supply 1 seal
A9503030
Sealing 125Accessory "wall/holder"
B1300017
Supply 1 piece incl, assembly kit
B1300017
Fastening element for DIN-Railsoff-white RAL 9002
Accessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Necessary accessories: sealing,
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 191 KB
- AutoCAD DWG-File 374 KB
- AutoCAD DXF-File 1 221 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 417 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00027983.x_t 3 215 KB
- 00027983.step 7 892 KB
- 00027983.sat 10 173 KB
(OKW product)
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro A9433107 a nezapomeňte si vyžádat nabídku!
