DIN modulární skříňka
A9423107
EVOTEC 100, Vers. I

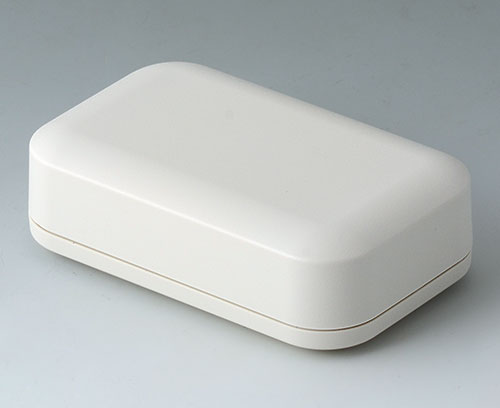

2-part plastic enclosure with flat top part, height 31. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Fastening pillars for PCBs and components in the top and bottom parts.
VersionTop part "Flat"
SupplyTop and bottom parts, assembly kit incl. 4 self-adhesive rubber feet
Generovat PDF pro A9423107
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Accessory "protection"
A9502030
Supply 1 seal
A9502030
Sealing 100Accessory "wall/holder"
B1300017
Supply 1 piece incl, assembly kit
B1300017
Fastening element for DIN-Railsoff-white RAL 9002
Accessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Necessary accessories: sealing,
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 241 KB
- AutoCAD DWG-File 350 KB
- AutoCAD DXF-File 1 116 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 344 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00023534.x_t 3 324 KB
- 00023534.STEP 7 496 KB
- 00023534.SAT 6 980 KB
(OKW product)
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro A9423107 a nezapomeňte si vyžádat nabídku!
