DIN modulární skříňka
A0121270
Side panel 2 HE, for handle mounting
Side panel 2 HE with hole for handle for enlarging the height. For combination with case shell (safely locks with each other by pressure).
Supply1 side panel
2D PDF Zobrazení
3D/2D ke stažení
3D/2D ke stažení
Generovat PDF pro A0121270
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Přidat do košíku
System components to complete
A0114170
Shell 42 TE
The case shells (2 pcs necessary) safely lock with each other by pressure. With injection-moulded fixing towers for PCB mounting. For combination with side panel and snap-in panel (separate article).
Supply 1 shell
A0114170
Shell 42 TEProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
260x250x27mm
A0114370
Snap-in panel, without slots
Snap-in panel without slots for the top. For locking in the case shells.
Supply 1 snap-in panel without slots
A0114370
Snap-in panel, without slotsProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A0116170
Shell 63 TE
The case shells (2 pcs necessary) safely lock with each other by pressure. With injection-moulded fixing towers for PCB mounting. For combination with side panel and snap-in panel (separate Article).
Supply 1 shell
A0116170
Shell 63 TEProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
367x250x27mm
A0116370
Snap-in panel, without slots
Snap-in panel without slots for the top. For locking in the case shells.
Supply 1 snap-in panel without slots
A0116370
Snap-in panel, without slotsProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A0124370
Snap-in panel, with slots
Snap-in panel with slots for the top. For locking in the case shells.
Supply 1 snap-in panel with slots
A0124370
Snap-in panel, with slotsProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A0126370
Snap-in panel, with slots
Snap-in panel with slots for the top. For locking in the case shells.
Supply 1 snap-in panel with slots
A0126370
Snap-in panel, with slotsProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A0134370
Snap-in panel, without slots, with feet
Snap-in panel without slots, with feet for the bottom. For locking in the case shells.For combination with tilt feet (see accessory).
Supply 1 snap-in panel without slots, with feet
A0134370
Snap-in panel, without slots, with feetProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A0136370
Snap-in panel, without slots, with feet
Snap-in panel without slots, with feet for the bottom. For locking in the case shells. For combination with tolt feet (see accessory).
Supply 1 snap-in panel without slots
A0136370
Snap-in panel, without slots, with feetProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A0144370
Snap-in panel with, slots, with feet
Snap-in panel with slots, with feet for the bottom. For locking in the case shells. For combination with tilt feet (see accessory).
Supply 1 snap-in panel with slots
A0144370
Snap-in panel with, slots, with feetProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A0146370
Snap-in panel, with slots, with feet
Nap-in panel with slots, with feet for the bottom. For locking in the case shells. For the combination with tilt feet (see accessory).
Supply 1 snap-in panel with slots
A0146370
Snap-in panel, with slots, with feetProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A0344216
Handle 42 TE
For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms off-white RAL 9002 / push buttons pepple grey RAL 7032. For combination with side panel with hole for handle.
Supply 2 side arms, 1 aluminium section, 2 fastenings screws
A0344216
Handle 42 TEProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A0344217
Handle 42 TE
For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms off-white RAL 9002 / push buttons off white RAL 9002. For combination with side panel with hole for handle.
Supply 2 side arms, 1 aluminium section, 2 fastenings screws
A0344217
Handle 42 TEProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A0344218
Handle 42 TE
For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms pepple grey RAL 7032 / push buttons off-white RAL 9002. For combination with side panel with hole for handle.
Supply 2 side arms, 1 aluminium section, 2 fastenings screws
A0344218
Handle 42 TEProdukt byl přidán do Vašeho košíku.
pebble grey RAL 7032
A0346316
Handle 63 TE
For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms off-white RAL 9002 / push buttons pepple grey RAL 7032. For combination with side panel with hole for handle.
Supply 2 side arms, 1 aluminium section, 2 fastenings screws
A0346316
Handle 63 TEProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A0346317
Handle 63 TE
For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms off-white RAL 9002 / push buttons off-white RAL 9002. For combination with side panel with hole for handle.
Supply 2 side arms, 1 aluminium section, 2 fastenings screws
A0346317
Handle 63 TEProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A0346318
Handle 63 TE
For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms pepple grey RAL 7032 / push buttons off-white RAL 9002. For combination with side panel with hole for handle.
Supply 2 side arms, 1 aluminium section, 2 fastenings screws
A0346318
Handle 63 TEProdukt byl přidán do Vašeho košíku.
pebble grey RAL 7032
Accessory to complete
A0334270
Front / rear panel 42 TE 3 HE
Front/rear panel for case 42 TE 3 HE.
Supply 1 front panel
A0334270
Front / rear panel 42 TE 3 HEProdukt byl přidán do Vašeho košíku.
matt anodised
250,8x135,2x2mm

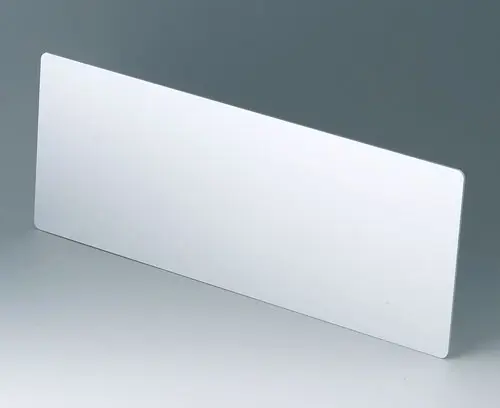

A0336370
Front / rear panel 63 TE 3 HE
Front/rear panel for case 63 TE 3 HE.
Supply 1 front panel
A0336370
Front / rear panel 63 TE 3 HEProdukt byl přidán do Vašeho košíku.
matt anodised
357,8x135,2x2mm
Customising options for A0121270
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technická data
-
Nákresy / Info
- Kupní data
Délka
250 mm
Výška
88,9 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 130 KB
- AutoCAD DWG-File 462 KB
- AutoCAD DXF-File 1 464 KB
Weight/1 part
82 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro A0121270 a nezapomeňte si vyžádat nabídku!
