B7110107

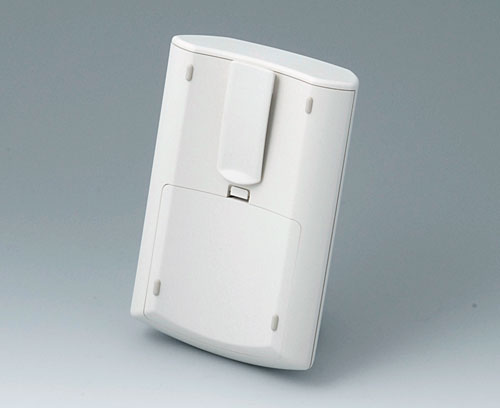

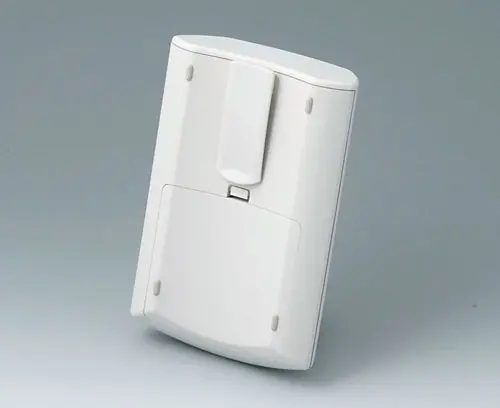

Belt / pocket clip
Special clip for ERGO-CASE S & M. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply1 clip, assembly kit
Generovat PDF pro B7110107
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
B7000107
Version With flat top part
Supply 1 top and 1 bottom part, assembly kit
B7000107
ERGO-CASE S, flatoff-white RAL 9002
80x96x32mm
B7005107
Version With high top part
Supply 1 top and 1 bottom part, assembly kit
B7005107
ERGO-CASE S, highoff-white RAL 9002
80x96x44mm
B7010107
Version With flat top part
Supply 1 top and 1 bottom part, battery compartment lid, assembly kit
B7010107
ERGO-CASE M, flatoff-white RAL 9002
150x100x40mm
B7010207
Version With flat top part
Supply 1 top and 1 bottom part, assembly kit
B7010207
ERGO-CASE M, flatoff-white RAL 9002
150x100x40mm
B7015107
Version With high top part
Supply 1 top and 1 bottom part, battery compartment lid, assembly kit
B7015107
ERGO-CASE M, highoff-white RAL 9002
150x100x55mm
B7015207
Version With high top part
Supply 1 top and 1 bottom part, assembly kit
B7015207
ERGO-CASE M, highoff-white RAL 9002
150x100x55mm
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 171 KB
- AutoCAD DWG-File 294 KB
- AutoCAD DXF-File 1 076 KB
(OKW product)
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro B7110107 a nezapomeňte si vyžádat nabídku!
