ERGO-CASE S, flat
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.
VersionWith flat top part
Supply1 top and 1 bottom part, assembly kit
2D PDF Zobrazení
3D PDF Zobrazení
3D/2D ke stažení
3D/2D ke stažení
Generovat PDF pro B7000109
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Přidat do košíku
Accessory "battery"
B7100002

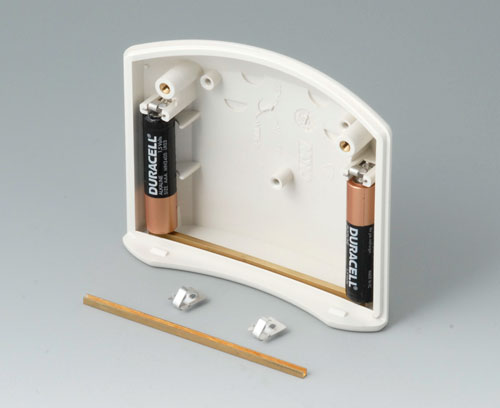

Set of battery clips, 2 x AAA
For contacting the batteries.
Supply 2 battery clips, 1 battery for serial connection
B7100002
Set of battery clips, 2 x AAAProdukt byl přidán do Vašeho košíku.
Accessory "protection"
B7100005

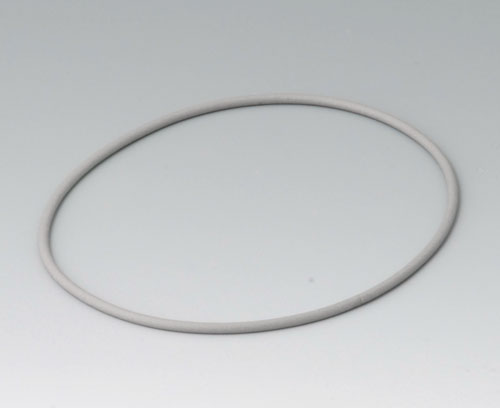

Sealing S
Application: for increasing the protection class, of ERGO-CASE S.
Supply 1 sealing
B7100005
Sealing SProdukt byl přidán do Vašeho košíku.
Accessory "wall/holder"
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply 1 contact
A9178007
Contacts, maleProdukt byl přidán do Vašeho košíku.
B7110028

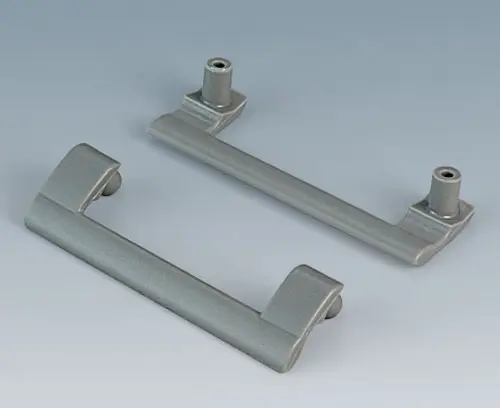

Fastening elements L / M / S
To fix the strap/belt or secure storage of the cases with wall suspension element. Max. size of the strap/belt: height 35 mm, thickness 3 mm. Easy to mount. In this case the premoulded center holes in the bottom part have to be opened by drilling or punching.
Supply 2 fixings, 1 assembly kit
B7110028
Fastening elements L / M / SProdukt byl přidán do Vašeho košíku.
volcano
B7110048

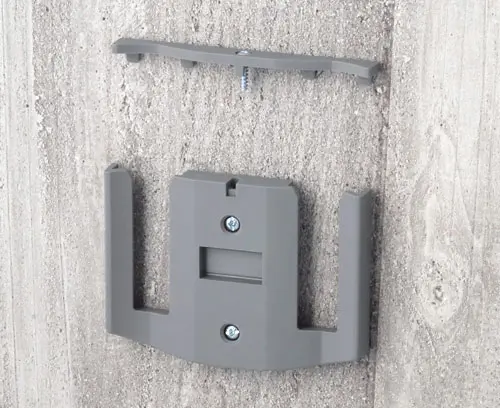

Wall suspension elements S / M
Special wall suspension element for the ERGO-CASE S/M for wall mounting and storage, with securing clip as protection against removal. Locating unit fitted for contacts on wall suspension element (6-pin, accessory A9178007). Fastening element required for mounting on case (accessory B7110028).
Supply 2 wall suspension element, 1 securing clip, 1 screw
B7110048
Wall suspension elements S / MProdukt byl přidán do Vašeho košíku.
volcano
Accessory "carrying"
A9100001
Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.
Supply 1 ring eyelet
A9100001
Ring eyeletProdukt byl přidán do Vašeho košíku.
volcano
B7110028
Fastening elements L / M / S
To fix the strap/belt or secure storage of the cases with wall suspension element. Max. size of the strap/belt: height 35 mm, thickness 3 mm. Easy to mount. In this case the premoulded center holes in the bottom part have to be opened by drilling or punching.
Supply 2 fixings, 1 assembly kit
B7110028
Fastening elements L / M / SProdukt byl přidán do Vašeho košíku.
volcano
B7110109

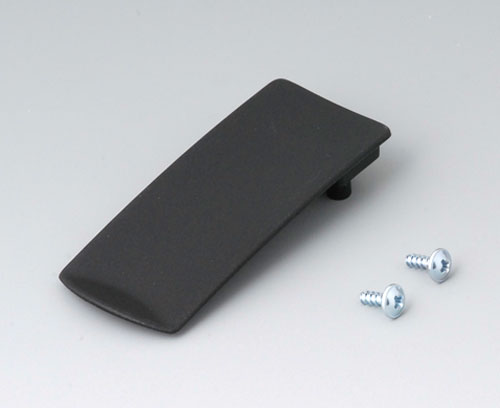

Belt / pocket clip
Special clip for ERGO-CASE S & M. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 clip, assembly kit
B7110109
Belt / pocket clipProdukt byl přidán do Vašeho košíku.
black RAL 9005
B7110129

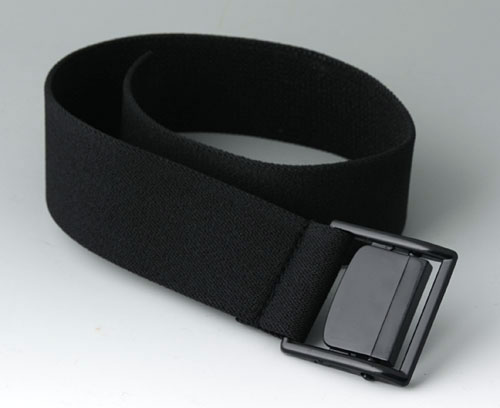

Belt strap
Elastic strap with clamp lock.
Supply 1 belt strap
B7110129
Belt strapProdukt byl přidán do Vašeho košíku.
450x35mm
B7110139
Belt strap
Belt strap with insertion lock.
Supply 1 belt strap
B7110139
Belt strapProdukt byl přidán do Vašeho košíku.
1200x30mm
B7110149
Belt strap
Belt strap with insertion lock.
Supply 1 belt strap
B7110149
Belt strapProdukt byl přidán do Vašeho košíku.
1500x30mm
Accessory "screws"
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)Produkt byl přidán do Vašeho košíku.
Accessory
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply 1 contact
A9178007
Contacts, maleProdukt byl přidán do Vašeho košíku.
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply 1 contact
A9178008
Contacts, femaleProdukt byl přidán do Vašeho košíku.
Customising options for B7000109
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technická data
-
Nákresy / Info
- Kupní data
Materiál
Třída produktu
Necessary accessories: sealing
Barva
black RAL 9005
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Délka
80 mm
Šířka
96 mm
Výška
32 mm
PCB length, top
65 mm
PCB width, top
56 mm
Keypad length
43,8 mm
Keypad width
58,2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 227 KB
- AutoCAD DWG-File 530 KB
- AutoCAD DXF-File 2 003 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 2 158 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00006172.x_t 2 721 KB
- 00006172.STEP 5 823 KB
- 00006172.SAT 6 745 KB
Weight/1 part
61 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro B7000109 a nezapomeňte si vyžádat nabídku!
