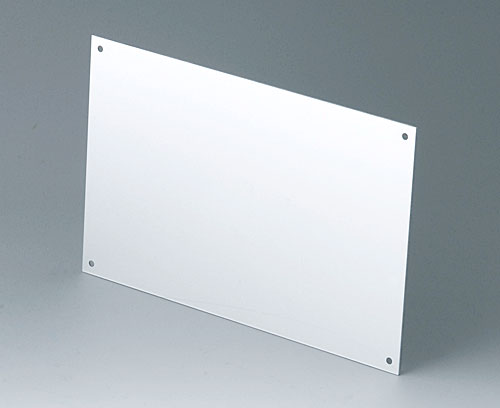

A9184001 Front panel

A9184001

Front panel

Front panel for COMBI DESK CASE F/H. Front panel for attachment for COMBI DESK CASE H separate accessories (A9185001).

Supply

1 front panel (screws supplied with case)

  • To be used for
  • View Customising Options

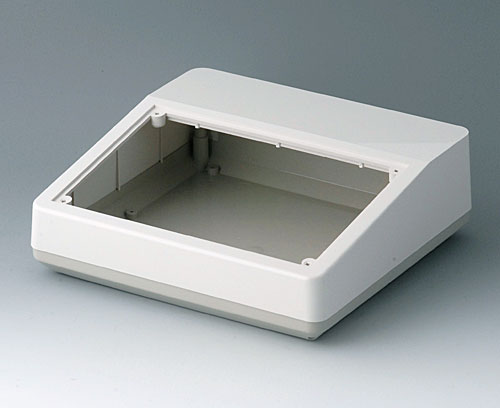

A9084165 COMBI DESK CASE F

A9084165

COMBI DESK CASE F Two-part case with sloped operation area. The base part has fastening pillars with inserts M3 for the mounting of PCBs. Raised panel at the rear for cable grommets and plug mounting.

Version Flat version without attachment

Supply 1 top and base part, assembly kit

Zavřít

A9084165

COMBI DESK CASE F
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
228x216x76mm

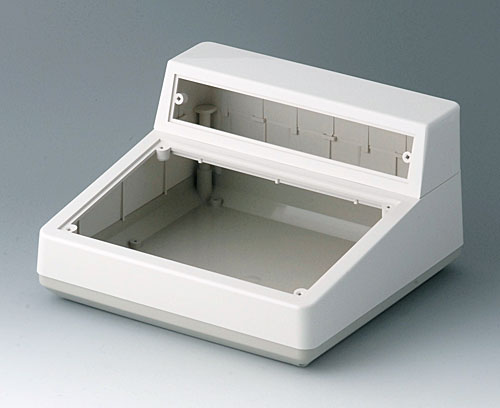

A9085165 COMBI DESK CASE H

A9085165

COMBI DESK CASE H Two-part case with sloped operation area. The base part has fastening pillars with inserts M3 for the mounting of PCBs. Raised panel at the rear for cable grommets and plug mounting.

Version Case with attachment, e.g. display

Supply 1 top and base part, attachment, assembly kit

Zavřít

A9085165

COMBI DESK CASE H
Produkt byl přidán do Vašeho košíku.
ABS (UL 94 HB)
off-white RAL 9002
228x216x126mm

Customising options for A9184001

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technická data
  • Kupní data
Materiál
Barva
matt anodised
Width
200 mm
Depth
130 mm
Height
1,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
105 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
