A9250907

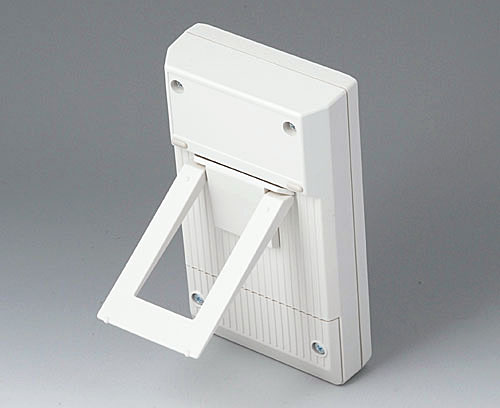

Tilt foot bar
Special for DATEC-MOBIL-BOX M/S (preformend centerings are already considered). Facilitates ergonomical reading angles (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a beter grip.
Supply1 tilt foot bar, assembly kit
Generovat PDF pro A9250907
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
System components to complete
A9073107
Version Top with closed operating area, recessed by 1.7 mm
Supply Case-top and base, battery compartment lid, assembly kit
A9073107
DATEC-MOBIL-BOX S, Vers. Ioff-white RAL 9002
152x83x33,5mm
A9073117
Version Top with closed operating area, recessed by 1,7 mm
Supply Case-top and base, battery compartment lid, assembly kit
A9073117
DATEC-MOBIL-BOX S, Vers. Ioff-white RAL 9002
152x83x33,5mm
A9073207
Version Top with display cutout for 2"-LC-modules with active area 45.8 x 17.8 mm
Supply Case-top and base, battery compartment lid, assembly kit
A9073207
DATEC-MOBIL-BOX S, Vers. IIoff-white RAL 9002
152x83x33,5mm
A9073217
Version Top with display cutout for 2"-LC-modules with active area 45.8 x 17.8 mm
Supply Case-top and base, battery compartment lid, assembly kit
A9073217
DATEC-MOBIL-BOX S, Vers. IIoff-white RAL 9002
152x83x33,5mm
A9073307
Version Top with display cutout for miniature-LCDs with 2 lines x 20 characters
Supply Case-top and base, battery compartment lid, assembly kit
A9073307
DATEC-MOBIL-BOX S, Vers. IIIoff-white RAL 9002
152x83x33,5mm
A9073317
Version Top with display cutout for miniature-LCDs with 2 lines x 20 characters
Supply Case-top and base, assembly kit
A9073317
DATEC-MOBIL-BOX S, Vers. IIIoff-white RAL 9002
152x83x33,5mm
A9073407
Version Top with display cutout for miniature-LCDs with 4 lines x 20 characters
Supply Case-top and base, battery compartment lid, assembly kit
A9073407
DATEC-MOBIL-BOX S, Vers. IVoff-white RAL 9002
152x83x33,5mm
A9073417
Version Top with display cutout for miniature-LCDs with 4 lines x 20 characters
Supply Case-top and base, assembly kit
A9073417
DATEC-MOBIL-BOX S, Vers. IVoff-white RAL 9002
152x83x33,5mm
A9074107
Version Top with closed operating area, recessed by 1.7 mm
Supply Case-top and base, battery compartment lid, assembly kit
A9074107
DATEC-MOBIL-BOX M, Vers. Ioff-white RAL 9002
195x101x44mm
A9074127
Version Top high with closed operating area, recessed by 1.7 mm
Supply Case-top and base, battery compartment lid, assembly kit
A9074127
DATEC-MOBIL-BOX M, Vers. I, highoff-white RAL 9002
195x101x59mm
A9074207
Version Top with display cutout for standard-LCD modules with 2 lines x 16 characters
Supply Case-top and base, battery compartment lid, assembly kit
A9074207
DATEC-MOBIL-BOX M, Vers. IIoff-white RAL 9002
195x101x44mm
A9074227
Version Top high with display cutout for standard-LCD modules with 2 lines x 16 characters
Supply Case-top and base, battery compartment lid, assembly kit
A9074227
DATEC-MOBIL-BOX M, Vers. II, highoff-white RAL 9002
195x101x59mm
A9074307
Version Top with display cutout for compact-LCD modules with 2 lines x 16 characters
Supply Case-top and base, battery compartment lid, assembly kit
A9074307
DATEC-MOBIL-BOX M, Vers. IIIoff-white RAL 9002
195x101x44mm
A9074407
Version Top with display cutout for standard-LCD modules with 4 lines x 16 characters
Supply Case-top and base, battery compartment lid, assembly kit
A9074407
DATEC-MOBIL-BOX M, Vers. IVoff-white RAL 9002
195x101x44mm
A9075107
Version Top with closed operating area, recessed by 2.2 mm
Supply Case-top and base, battery compartment lid, assembly kit
A9075107

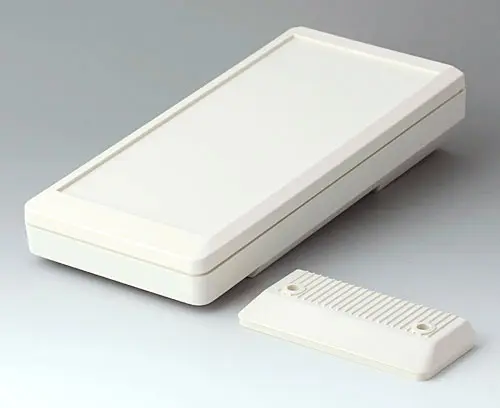

DATEC-MOBIL-BOX L, Vers. Ioff-white RAL 9002
252x121x50mm
A9075117
Version Top with closed operating area, recessed by 2.2 mm
Supply Case-top and base, assembly kit
A9075117
DATEC-MOBIL-BOX L, Vers. Ioff-white RAL 9002
252x121x50mm
A9075207
Version Top with display cutout for LCD modules of 20 characters x 4 lines
Supply Case-top and base, battery compartment lid, assembly kit
A9075207

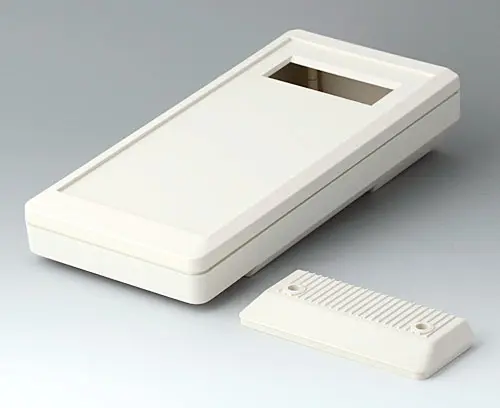

DATEC-MOBIL-BOX L, Vers. IIoff-white RAL 9002
252x121x50mm
A9075217
Version Top with display cutout for LCD modules of 20 characters x 4 lines
Supply Case-top and base, assembly kit
A9075217
DATEC-MOBIL-BOX L, Vers. IIoff-white RAL 9002
252x121x50mm
Accessory
A9207150
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mmDrawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 152 KB
- AutoCAD DWG-File 305 KB
- AutoCAD DXF-File 605 KB
(OKW product)
