Wall suspension element
Wall suspension element for DATEC-MOBIL-BOX S + SENSO-CASE M. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.
Supply2 claps, 2 bars, 1 holder
Generovat PDF pro A9226237
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
A9073107
Version Top with closed operating area, recessed by 1.7 mm
Supply Case-top and base, battery compartment lid, assembly kit
A9073107
DATEC-MOBIL-BOX S, Vers. Ioff-white RAL 9002
152x83x33,5mm
A9073117
Version Top with closed operating area, recessed by 1,7 mm
Supply Case-top and base, battery compartment lid, assembly kit
A9073117
DATEC-MOBIL-BOX S, Vers. Ioff-white RAL 9002
152x83x33,5mm
A9073207
Version Top with display cutout for 2"-LC-modules with active area 45.8 x 17.8 mm
Supply Case-top and base, battery compartment lid, assembly kit
A9073207
DATEC-MOBIL-BOX S, Vers. IIoff-white RAL 9002
152x83x33,5mm
A9073217
Version Top with display cutout for 2"-LC-modules with active area 45.8 x 17.8 mm
Supply Case-top and base, battery compartment lid, assembly kit
A9073217
DATEC-MOBIL-BOX S, Vers. IIoff-white RAL 9002
152x83x33,5mm
A9073307
Version Top with display cutout for miniature-LCDs with 2 lines x 20 characters
Supply Case-top and base, battery compartment lid, assembly kit
A9073307
DATEC-MOBIL-BOX S, Vers. IIIoff-white RAL 9002
152x83x33,5mm

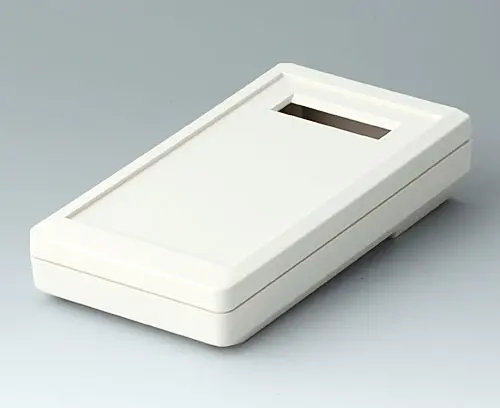

A9073317
Version Top with display cutout for miniature-LCDs with 2 lines x 20 characters
Supply Case-top and base, assembly kit
A9073317
DATEC-MOBIL-BOX S, Vers. IIIoff-white RAL 9002
152x83x33,5mm
A9073407
Version Top with display cutout for miniature-LCDs with 4 lines x 20 characters
Supply Case-top and base, battery compartment lid, assembly kit
A9073407
DATEC-MOBIL-BOX S, Vers. IVoff-white RAL 9002
152x83x33,5mm

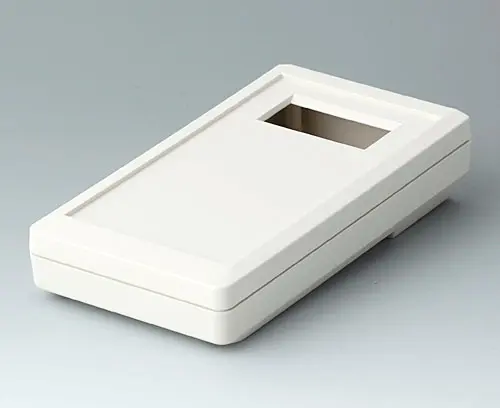

A9073417
Version Top with display cutout for miniature-LCDs with 4 lines x 20 characters
Supply Case-top and base, assembly kit
A9073417
DATEC-MOBIL-BOX S, Vers. IVoff-white RAL 9002
152x83x33,5mm
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 162 KB
- AutoCAD DWG-File 273 KB
- AutoCAD DXF-File 691 KB
(OKW product)
