DIN modulární skříňka
A5023008
Cover 23, without line
Suitable for spindle-shaped knob 23. Cover simply to pin up.
Supply1 cover
2D PDF Zobrazení
3D/2D ke stažení
3D/2D ke stažení
Generovat PDF pro A5023008
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Přidat do košíku
System components to complete
A2423040
SPINDLE-SHAPED KNOB 23, with line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 1,0 Nm, function = 0,8 Nm.
Max. torque: assembly = 1,0 Nm, function = 0,8 Nm.
Supply 1 spindle-shaped knob
A2423040
SPINDLE-SHAPED KNOB 23, with lineProdukt byl přidán do Vašeho košíku.
black RAL 9005
23x16mm
Otvor 4mm
A2423060
SPINDLE-SHAPED KNOB 23, with line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.
Supply 1 spindle-shaped knob
A2423060
SPINDLE-SHAPED KNOB 23, with lineProdukt byl přidán do Vašeho košíku.
black RAL 9005
23x16mm
Otvor 6mm
A2423068

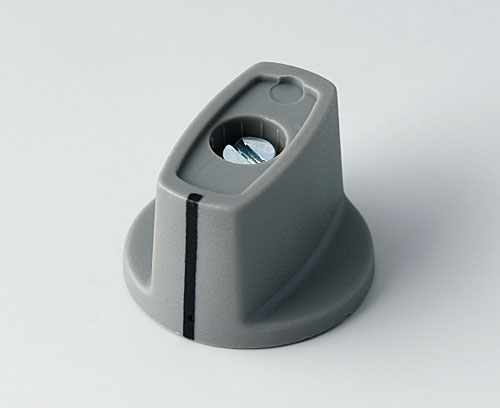

SPINDLE-SHAPED KNOB 23, with line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.
Supply 1 spindle-shaped knob
A2423068
SPINDLE-SHAPED KNOB 23, with lineProdukt byl přidán do Vašeho košíku.
dusty grey RAL 7037
23x16mm
Otvor 6mm
Customising options for A5023008
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technická data
-
Nákresy / Info
- Kupní data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 144 KB
- AutoCAD DWG-File 317 KB
- AutoCAD DXF-File 724 KB
Weight/1 part
0,25 g
Customs tariff number
(OKW product)
(OKW product)
84879090
Country of manufacture
Germany
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro A5023008 a nezapomeňte si vyžádat nabídku!
