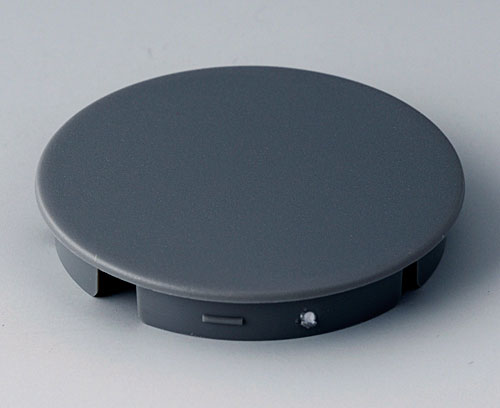

A4140008
Cover 40, without line
Suitable for round knobs 40. Cover simply to pin up.
Supply1 cover
2D PDF Zobrazení
3D/2D ke stažení
3D/2D ke stažení
Generovat PDF pro A4140008
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Přidat do košíku
System components to complete

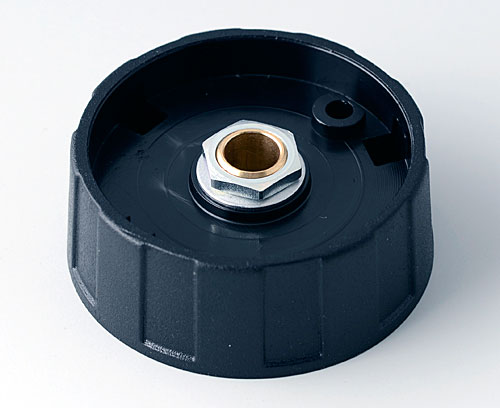

A2540060
ROUND KNOB 40, without line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.
Supply 1 round knob
A2540060
ROUND KNOB 40, without lineProdukt byl přidán do Vašeho košíku.
black RAL 9005
40x15mm
Otvor 6mm

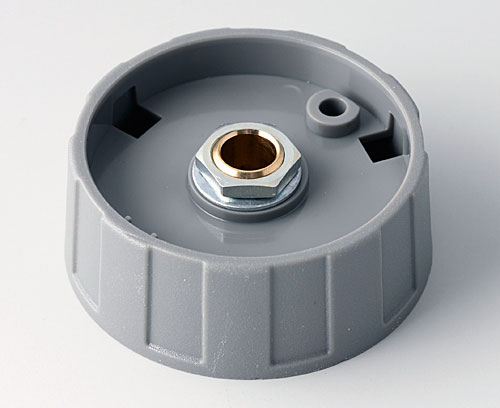

A2540068
ROUND KNOB 40, without line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.
Supply 1 round knob
A2540068
ROUND KNOB 40, without lineProdukt byl přidán do Vašeho košíku.
dusty grey RAL 7037
40x15mm
Otvor 6mm

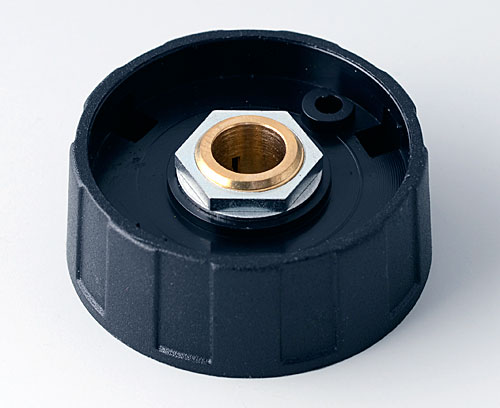

A2540080
ROUND KNOB 40, without line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 2,8 Nm, function = 1,8 Nm.
Max. torque: assembly = 2,8 Nm, function = 1,8 Nm.
Supply 1 round knob
A2540080
ROUND KNOB 40, without lineProdukt byl přidán do Vašeho košíku.
black RAL 9005
40x15mm
Otvor 8mm

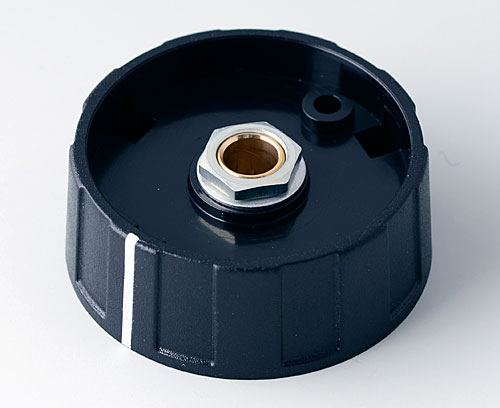

A2640060
ROUND KNOB 40, with line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.
Supply 1 round knob
A2640060
ROUND KNOB 40, with lineProdukt byl přidán do Vašeho košíku.
black RAL 9005
40x15mm
Otvor 6mm

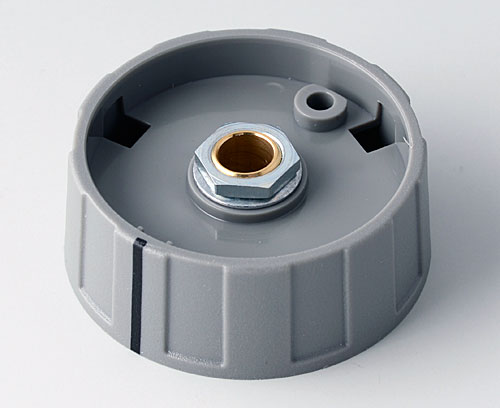

A2640068
ROUND KNOB 40, with line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. Black marking.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.
Supply 1 round knob
A2640068
ROUND KNOB 40, with lineProdukt byl přidán do Vašeho košíku.
dusty grey RAL 7037
40x15mm
Otvor 6mm
Customising options for A4140008
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technická data
-
Nákresy / Info
- Kupní data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 145 KB
- AutoCAD DWG-File 329 KB
- AutoCAD DXF-File 769 KB
Weight/1 part
1,7 g
Customs tariff number
(OKW product)
(OKW product)
84879090
Country of manufacture
Germany
