DIN modulární skříňka
B2512107
BLOB CONTROL

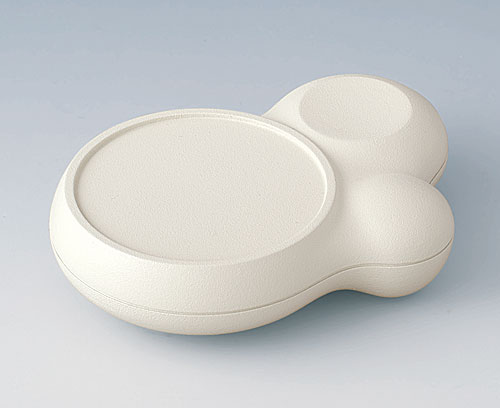

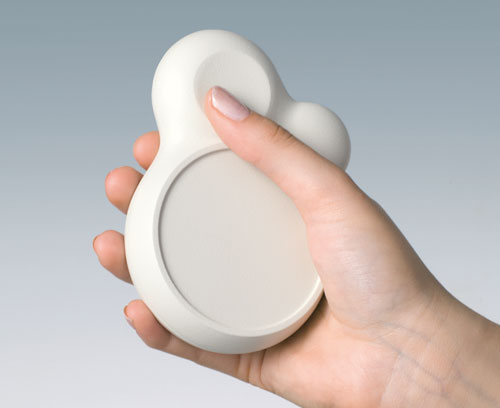

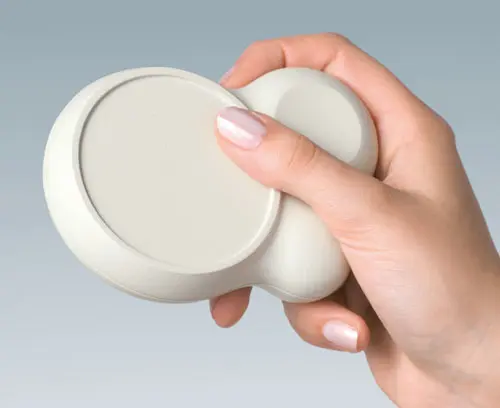

An enclosure that can be held with one hand and operated with the second hand. Two-part enclosure design. Recessed surface for membrane keyboards. Separate recess for special functions. Attachment domes for a PCB in the top part.
SupplyTop and bottom parts, assembly kit
Generovat PDF pro B2512107
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Accessory "battery"
A9193034
Supply Polarity reversal protection device
A9193034
Polarity reversal protection device, positive terminal AAAoff-white RAL 9002
A9193036
Supply 1 battery clip
A9193036
Battery clip, AAAnickel-plated
A9193037
Version Horizontal
Supply 1 button cell holder
A9193037
Button cell holder, Ø 20 mm
A9193038
Version Horizontal
Supply 1 button cell holder
A9193038
Button cell holder, Ø 23 mm
A9193039
Version Horizontal
Supply 1 button cell holder
A9193039
Button cell holder, Ø 12 mm
A9193040
Version Horizontal
Supply 1 button cell holder
A9193040
Button cell holder, Ø 16 mmAccessory "protection"

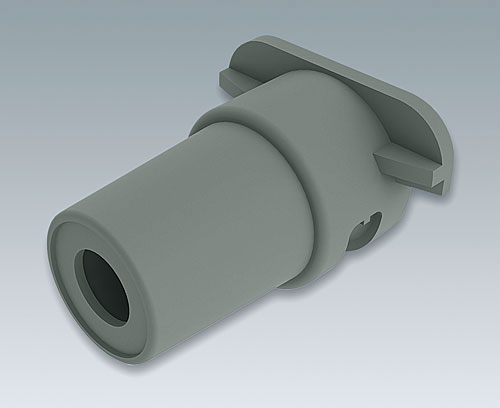

B2610101
Version For cables Ø 5.0 - 5.9 mm
Supply 1 cable bushing
B2610101
Cable strain, 5.0 - 5.9volcano
B2610111
Version For cables Ø 4.2 - 5.0 mm
Supply 1 cable bushing
B2610111
Cable strain, 4.2 - 5.0volcano
B2610121
Version For cables Ø 3.4 - 4.2 mm
Supply 1 cable bushing
B2610121
Cable strain, 3.4 - 4.2volcano
B2612001
Application: for increasing the protection class, of BLOB CONTROL.
Supply 1 sealing
B2612001
Sealing ControlAccessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)Necessary accessories: sealing
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 374 KB
- AutoCAD DWG-File 841 KB
- AutoCAD DXF-File 3 099 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 1 400 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00013196.x_t 11 860 KB
- 00013196.STEP 21 860 KB
- 00013196.SAT 15 602 KB
(OKW product)
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro B2512107 a nezapomeňte si vyžádat nabídku!
