DIN modulární skříňka
B5111309

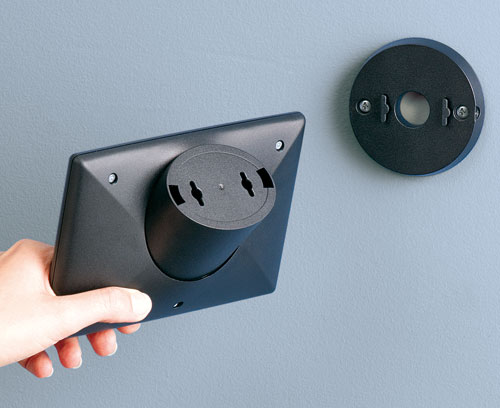

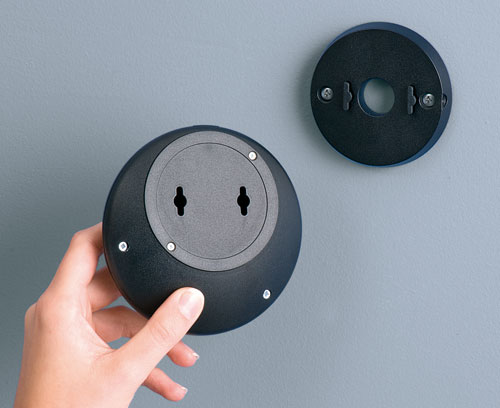

Wall mounting set
Suitable for all versions (except Euro Plug versions), for secure wall mounting of the enclosures (machining lid/bases necessary).
SupplyWall mounting set, incl. safety screws
Generovat PDF pro B5111309
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
B5010009
Version Bottom part "level"
Supply 1 top and bottom part R110 F, assembly kit
B5010009
Bottom and top part R110Fblack RAL 9005
⌀110x30mm

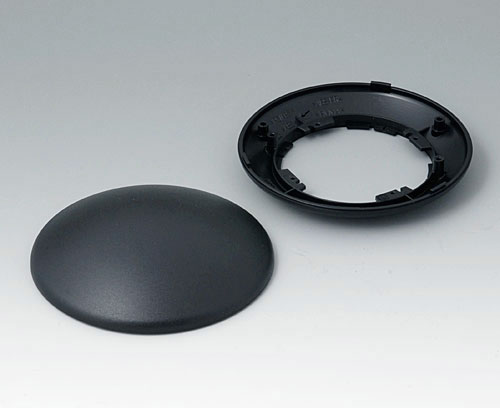

B5010109
Version Bottom part "level"
Supply 1 top and bottom part R110 H, assembly kit
B5010109
Bottom and top part R110 Hblack RAL 9005
⌀110x38mm
B5010209
Version Bottom part "inclined"
Supply 1 top and bottom part R110 F, assembly kit
B5010209
Bottom and top part R110 Fblack RAL 9005
⌀110x38mm

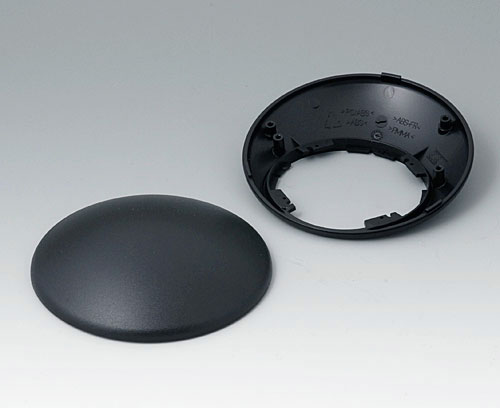

B5010309
Version Bottom part "inclined"
Supply 1 top and bottom part R110 H, assembly kit
B5010309
Bottom and top part R110 Hblack RAL 9005
⌀110x41mm
B5011119
Supply 1 base
B5011119
Baseblack RAL 9005
B5011219
Supply 1 base 30°
B5011219
Base 30°black RAL 9005
B5011319
Supply 1 base 55°
B5011319
Base 55°black RAL 9005
B5011849
Supply 1 lid, assembly kit
B5011849
Lidblack RAL 9005
B5011859
Supply 1 battery compartment lid, assembly kit
B5011859
Battery compartment lidblack RAL 9005

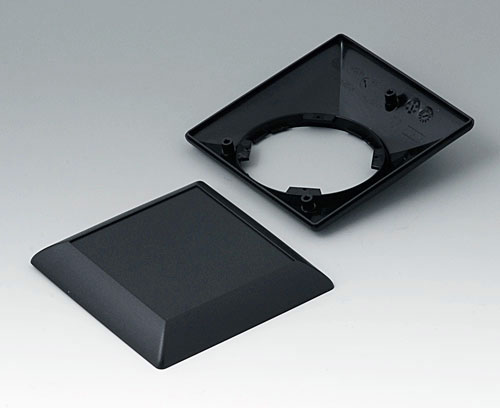

B5012209
Version Bottom part "inclinded"
Supply 1 top and bottom part S110 F, assembly kit
B5012209
Bottom and top part S110 Fblack RAL 9005
110x110x38mm
B5015009
Version Bottom part "level"
Supply 1 top and bottom part O160 F, assembly kit
B5015009
Bottom and top part O160 Fblack RAL 9005
160x110x30mm

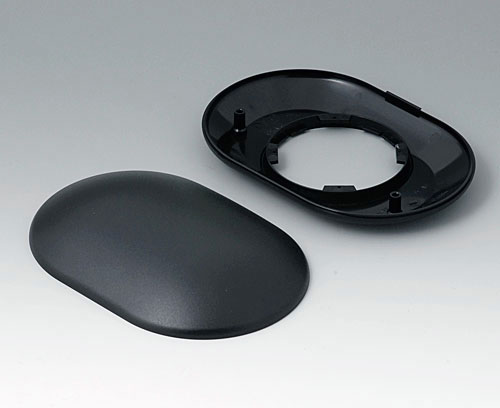

B5015109
Version Bottom part "level"
Supply 1 top and bottom part O160 H, assembly kit
B5015109
Bottom and top part O160 Hblack RAL 9005
160x110x38mm
B5015209
Version Bottom part "inclined"
Supply 1 top and bottom part O160 F, assembly kit
B5015209
Bottom and top part O160 Fblack RAL 9005
160x110x38mm
B5015309
Version Bottom part "inclined"
Supply 1 top and bottom part O160 H, assembly kit
B5015309
Bottom and top part O160 Hblack RAL 9005
160x110x41mm
B5017209
Version Bottom part "inclined"
Supply 1 top and bottom part E160 F, assembly kit
B5017209
Bottom and top part E160 Fblack RAL 9005
160x110x38mm
(OKW product)
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro B5111309 a nezapomeňte si vyžádat nabídku!
