B9004907 Bottom and top part DM

B9004907

Bottom and top part DM

Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring DM as separate article necessary.

Supply

1 top and bottom part DM, 1 self-tapping screw

  • Componentes adequados
  • Veja Opções de personalização

System components to complete

B9004302 Intermediate ring DM

B9004302

Intermediate ring DM Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring DM

Fechar

B9004302

Intermediate ring DM
Produto adicionado a sua lista
TPE
lava
B9004303 Intermediate ring DM

B9004303

Intermediate ring DM Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring DM

Fechar

B9004303

Intermediate ring DM
Produto adicionado a sua lista
TPE
orange
B9004304 Intermediate ring DM

B9004304

Intermediate ring DM Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring DM

Fechar

B9004304

Intermediate ring DM
Produto adicionado a sua lista
TPE
green
B9004305 Intermediate ring DM

B9004305

Intermediate ring DM Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring DM

Fechar

B9004305

Intermediate ring DM
Produto adicionado a sua lista
TPE
blue
B9004307 Intermediate ring DM

B9004307

Intermediate ring DM Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring DM

Fechar

B9004307

Intermediate ring DM
Produto adicionado a sua lista
SEBS (TPE)
off-white RAL 9002
B9004308 Intermediate ring DM

B9004308

Intermediate ring DM Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection.

Supply 1 intermediate ring DM

Fechar

B9004308

Intermediate ring DM
Produto adicionado a sua lista
TPE
volcano
B9004309 Intermediate ring DM

B9004309

Intermediate ring DM Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together.

Supply 1 intermediate ring DM

Fechar

B9004309

Intermediate ring DM
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005

Accessory "carrying"

A9164001 Key ring

A9164001

Key ring Version: diameter = 20.5 mm.

Supply 1 key ring

Fechar

A9164001

Key ring
Produto adicionado a sua lista
Steel
nickel-plated
20,5mm
B9100063 Carrying strap, textile lanyard

B9100063

Carrying strap, textile lanyard Textile lanyard with loop attachment.

ATTTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!

Supply 1 lanyard

Fechar

B9100063

Carrying strap, textile lanyard
Produto adicionado a sua lista
black
860mm
B9100073 Carrying strap, textile lanyard

B9100073

Carrying strap, textile lanyard Textile lanyard with snap safety clip.

Supply 1 lanyard

Fechar

B9100073

Carrying strap, textile lanyard
Produto adicionado a sua lista
black
914x16mm

Customising options for B9004907

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações

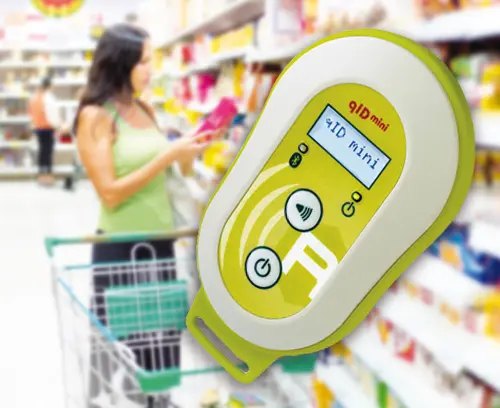

  • Exemplos de Aplicação
  • Purchasing Data
Colour
off-white RAL 9002
Length
70 mm
Width
44 mm
Height
16 mm
PCB length, base
50 mm
PCB width, base
38 mm
Keypad length
52,5 mm
Keypad width
23,7 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
9 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
