Handheld enclosures for large graphic displays
Four sizes: XS, S, M, L IP 65: XS, S with sealing kit and display window (acc.) DATEC-CONTROL M/L with plug-in battery packs 5xAA DATEC-CONTROL M/L enclosure and station with contacts (accessories) Station M/L (accessory) DATEC-CONTROL XS/S: secure storage on the table or at the wall DATEC-CONTROL XS/S: battery compartment for 2/3 AA or 9 V Protectors M/L with additional shoulder strap (acc.) Recessed top for a membrane keypad Handheld enclosures for large graphic displays

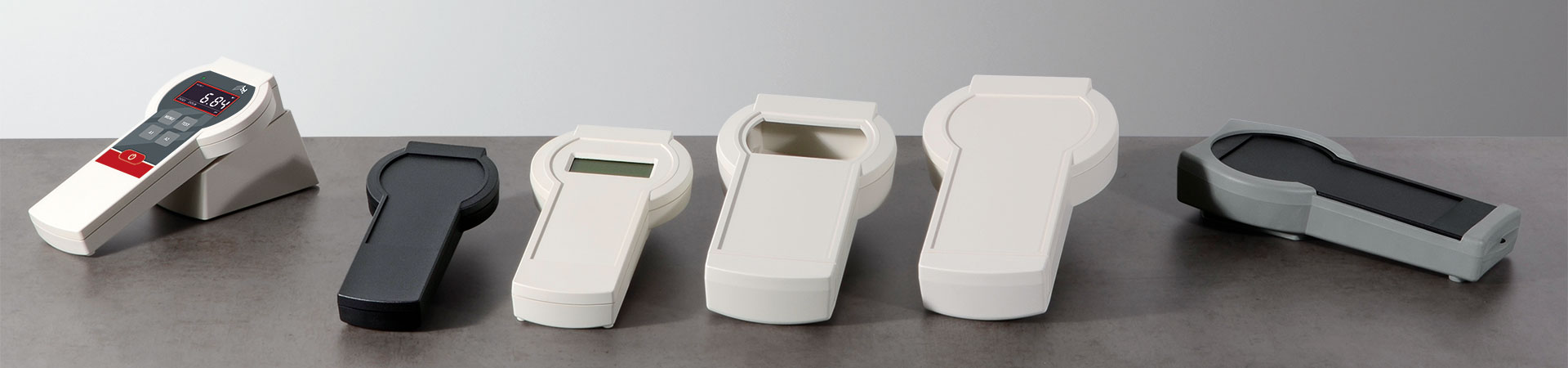

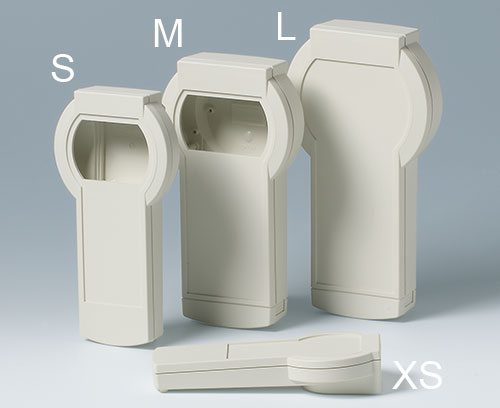

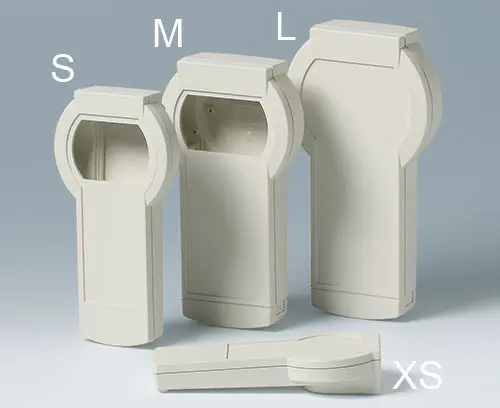

Four sizes: XS, S, M, L

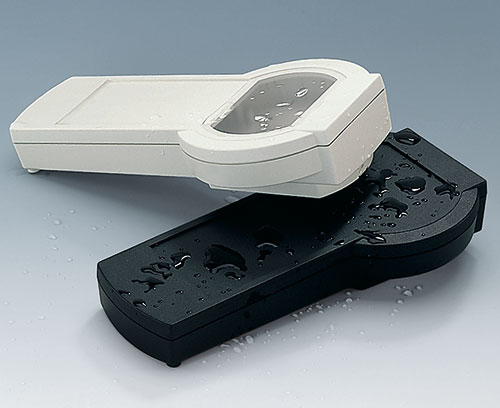

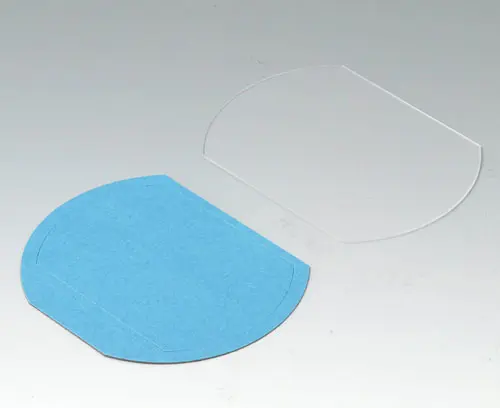

IP 65: XS, S with sealing kit and display window (acc.)

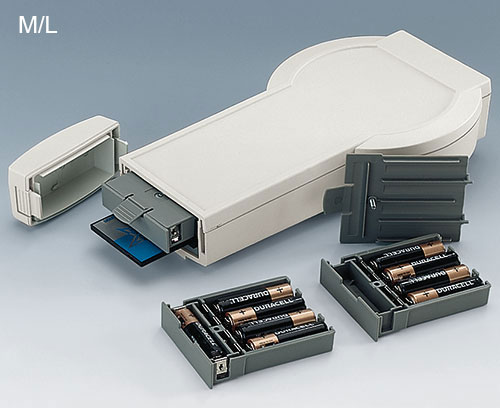

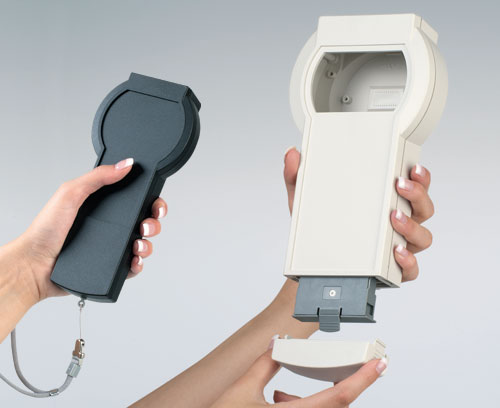

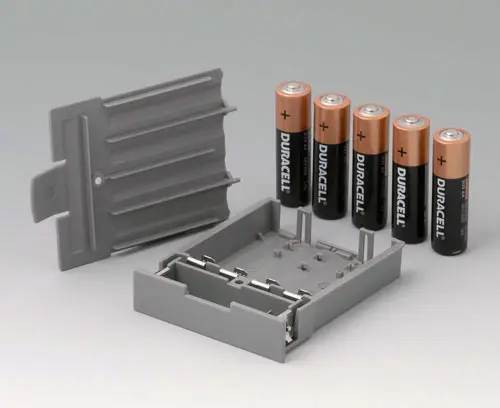

DATEC-CONTROL M/L with plug-in battery packs 5xAA

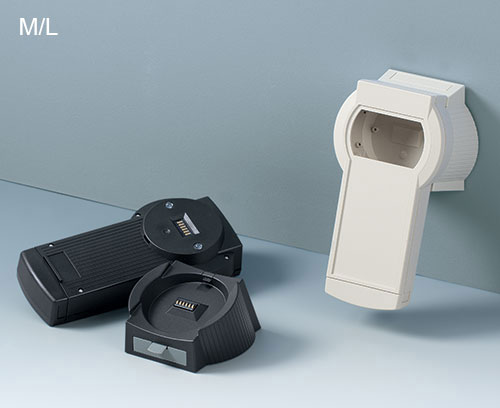

DATEC-CONTROL M/L enclosure and station with contacts (accessories)

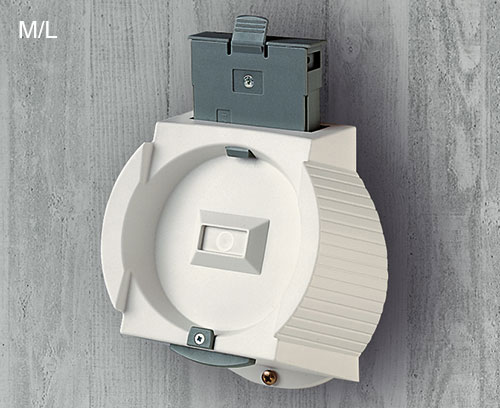

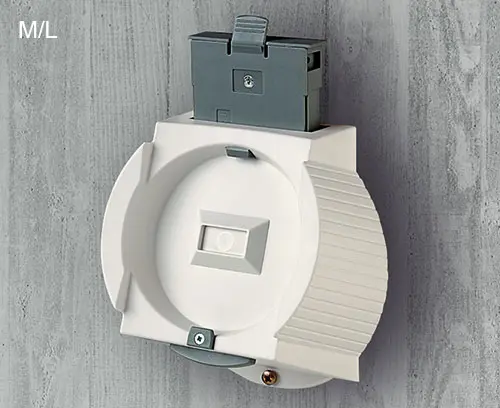

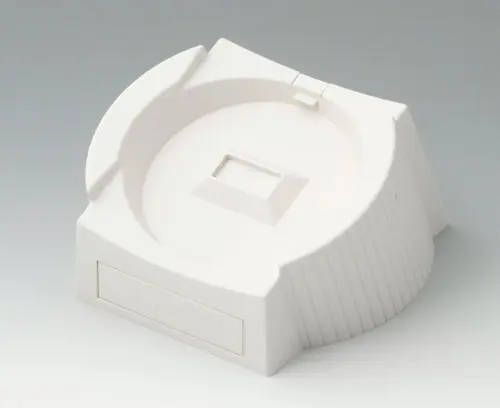

Station M/L (accessory)

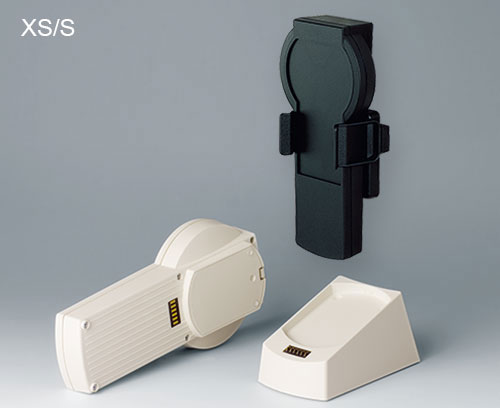

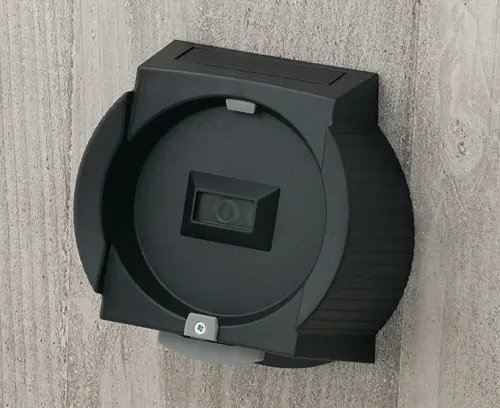

DATEC-CONTROL XS/S: secure storage on the table or at the wall

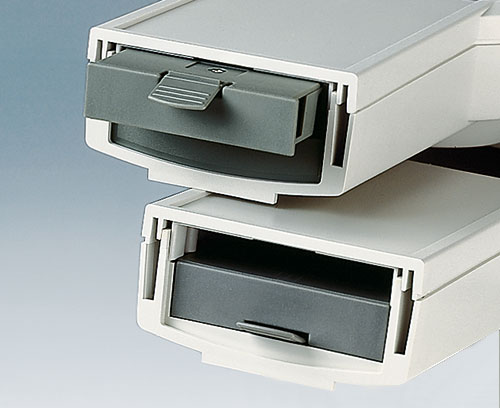

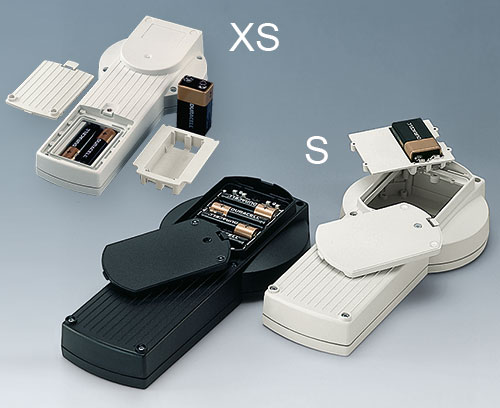

DATEC-CONTROL XS/S: battery compartment for 2/3 AA or 9 V

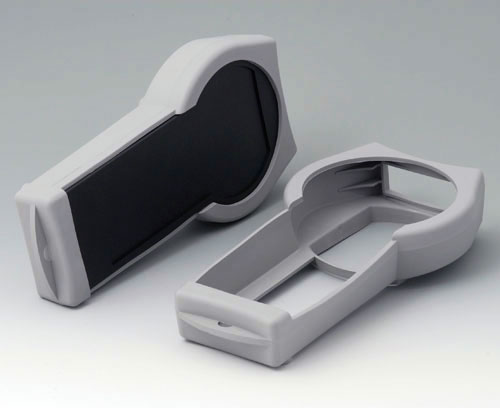

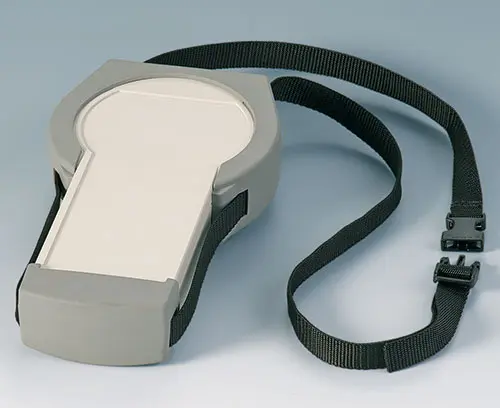

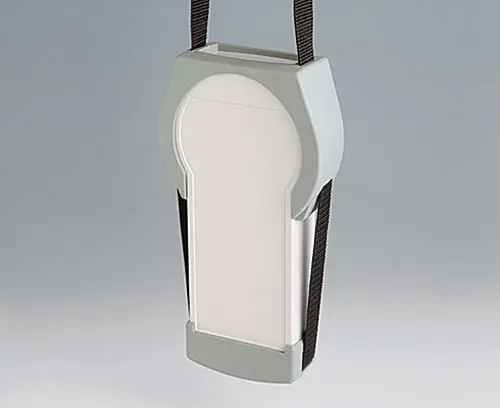

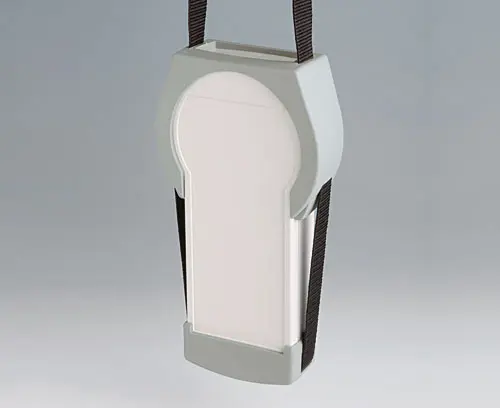

Protectors M/L with additional shoulder strap (acc.)

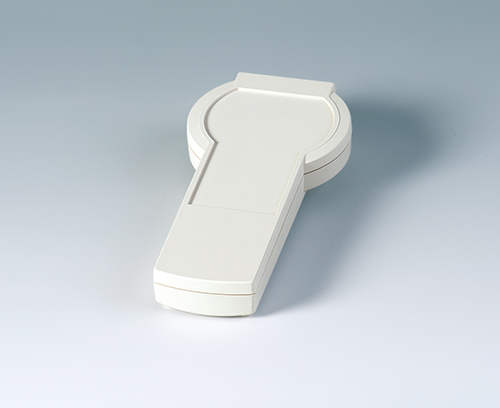

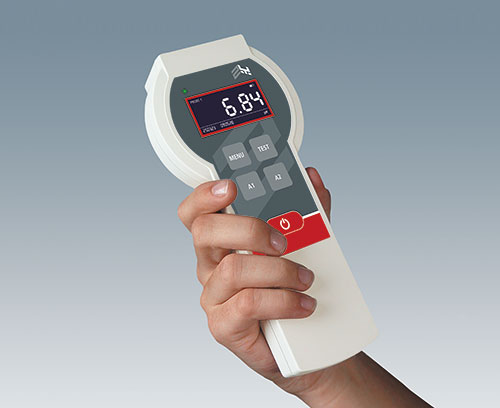

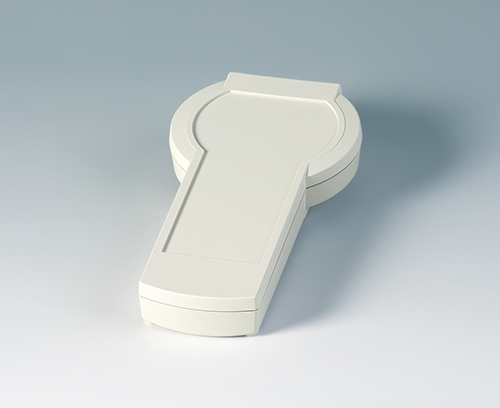

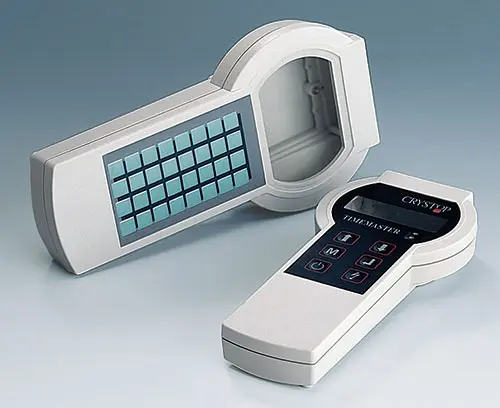

Recessed top for a membrane keypad
Handheld enclosures for large graphic displays

Datec-Control

Handheld Enclosures for Large Graphics Displays

These ergonomic enclosures have a large head section for installing bigger display modules with graphics capability.

  • installation of standard size LCDs and graphics display modules
  • narrow holding area for user comfort

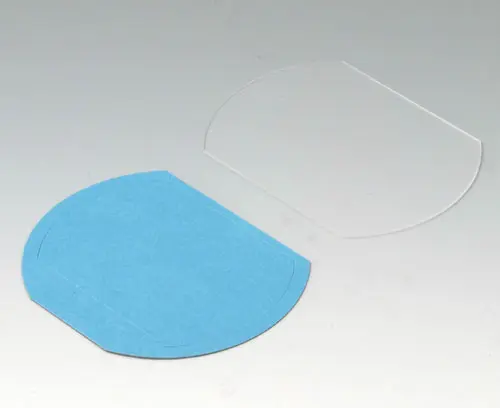

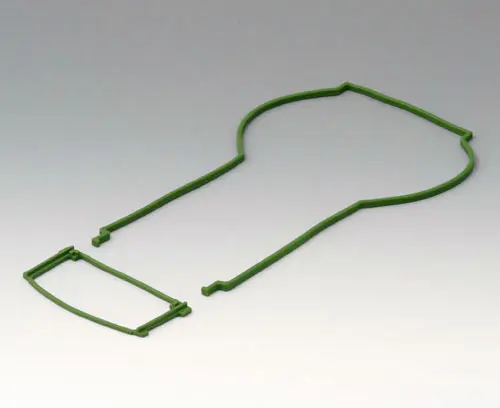

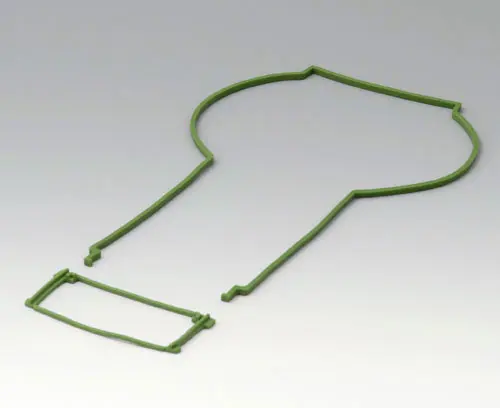

  • high protection class: IP 65 (XS, S) or IP 54 (M, L) when using the sealing kits and display windows (accessories)
  • four sizes each in two colours
  • DATEC-CONTROL XS

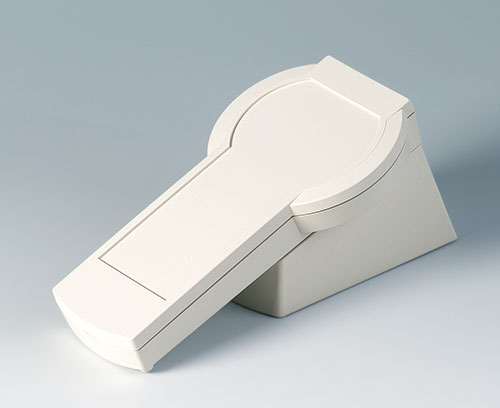

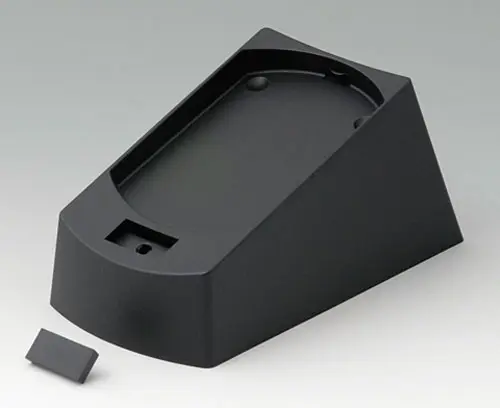

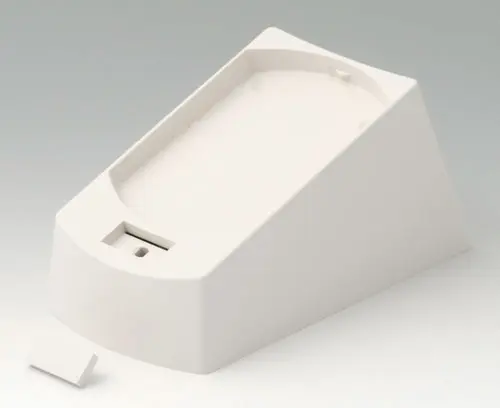

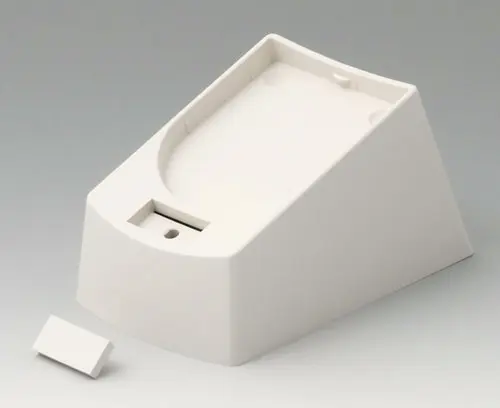

    with/without screw-in battery cradles, 2 x AA / 3 x AA cells; battery lid optionally with latch and/or fixed by screws; station for ergonomically inclined desk case applications
  • DATEC-CONTROL S
    with/without screw-in battery cradles, 4 x AA / 1 x 9 V cells; battery lid optionally with latch and/or fixed by screws; station for ergonomically inclined desk case applications
  • DATEC-CONTROL M, L

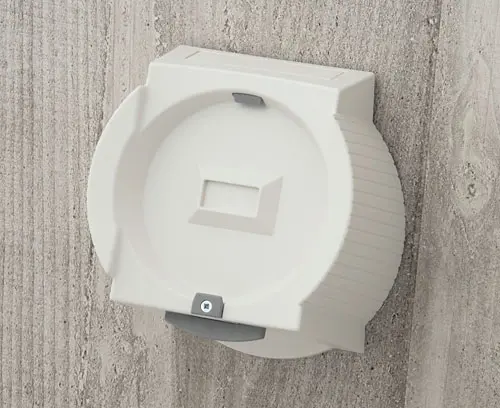

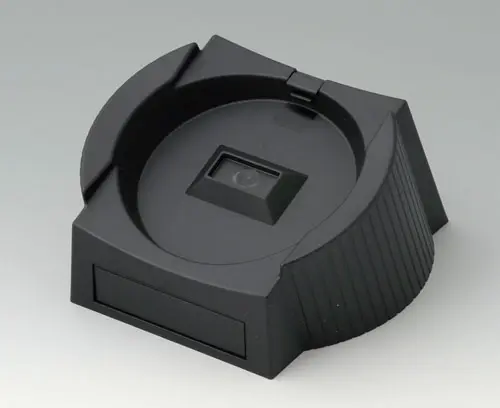

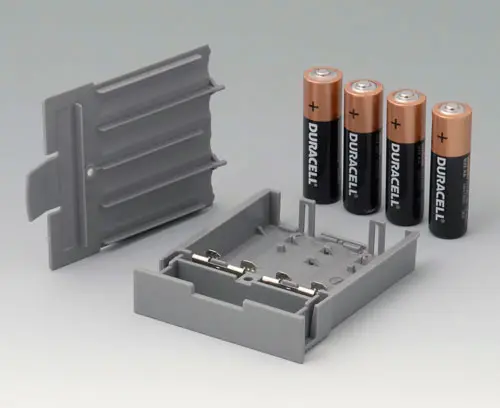

    with/without plug-in battery packs, up to 5 x AA cells; with mounting for PCMCIA holders; separate desk and wall stations for battery charging and/or data downloading
  • easy transmission of data and charging current, station and contacts as accessories

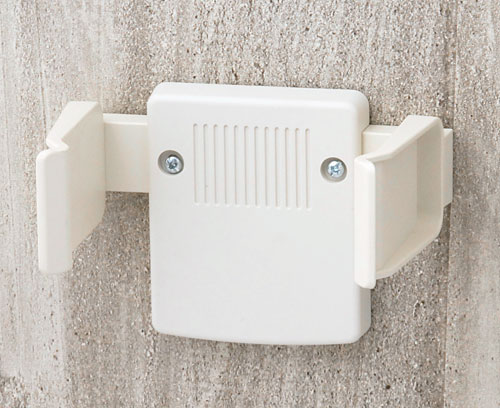

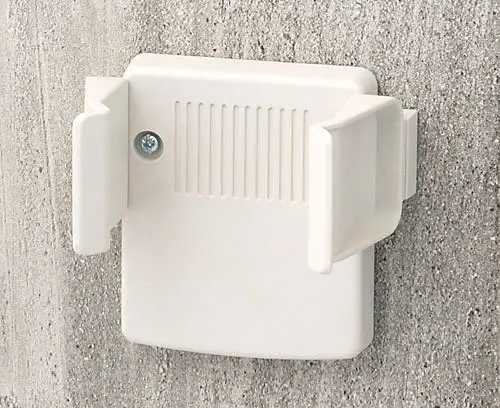

  • wall suspension element for secure storage of the enclosure (accessory)

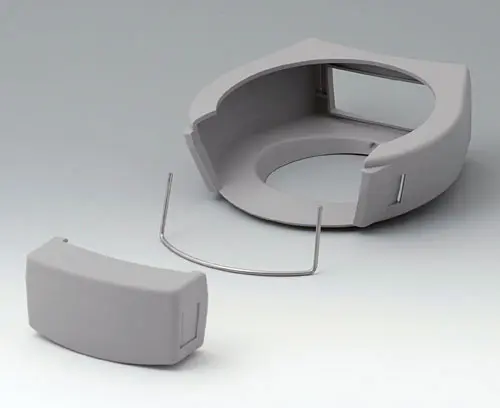

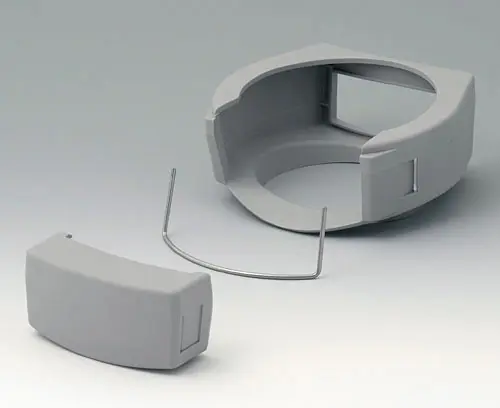

  • protectors absorb impacts and protect surfaces, sizes M and L additional with shoulder strap
  • recessed operating area for protecting the membrane keypad
  • internal fastening pillars for PCBs

Applications

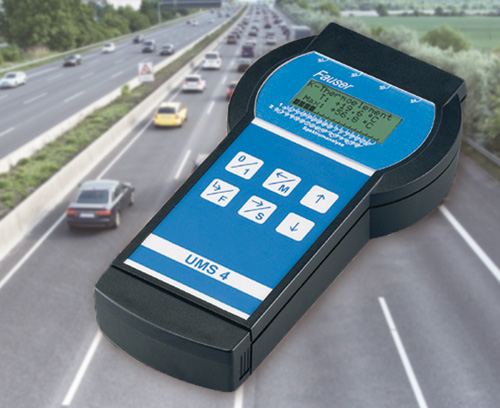

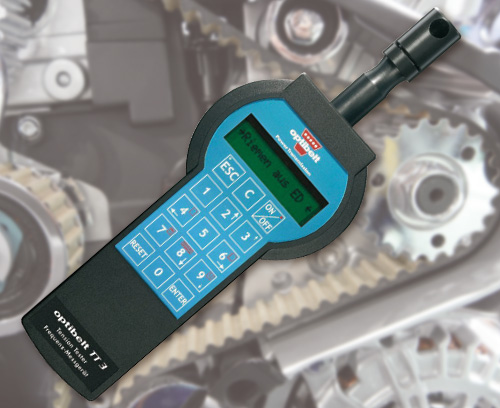

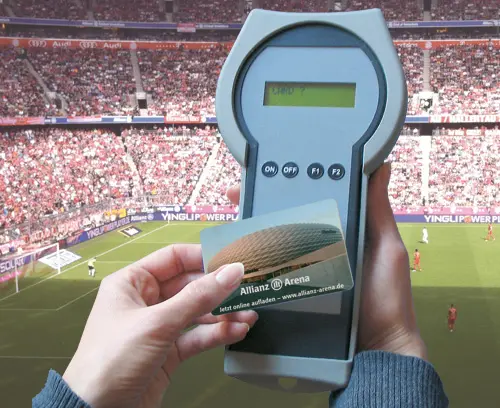

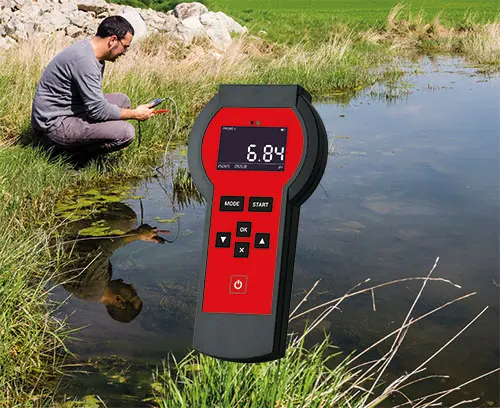

Mobile data collection and transfer via modem, ISDN or infra-red technology. Measuring and control technology. Digital control devices. Medical and wellness equipment.

  • Photo Gallery

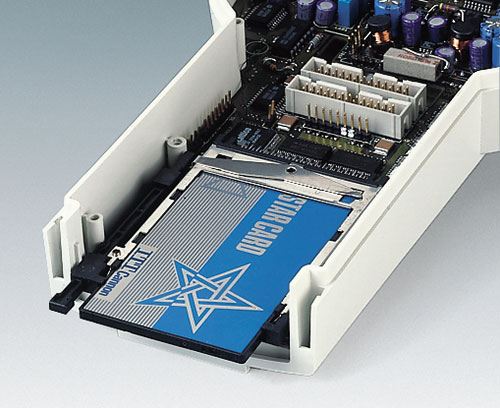

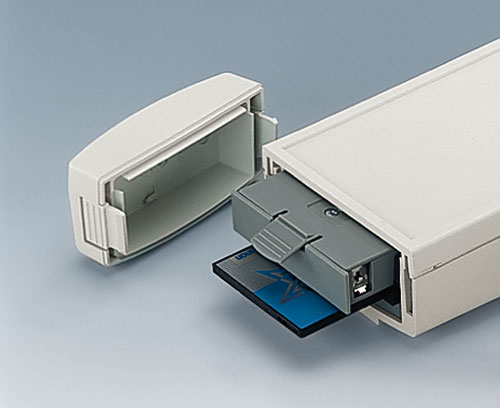

DATEC-CONTROL M/L with PCMCIA card and battery compartment

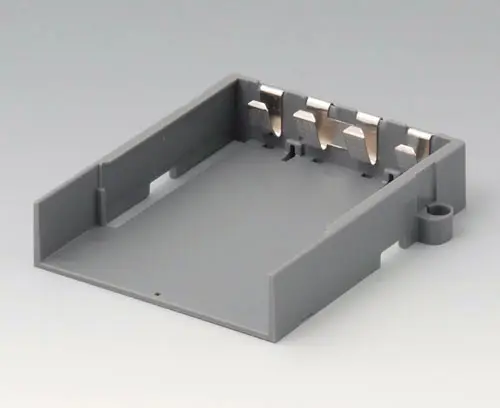

battery compartments S: 4 x AA, 1 x 9 V

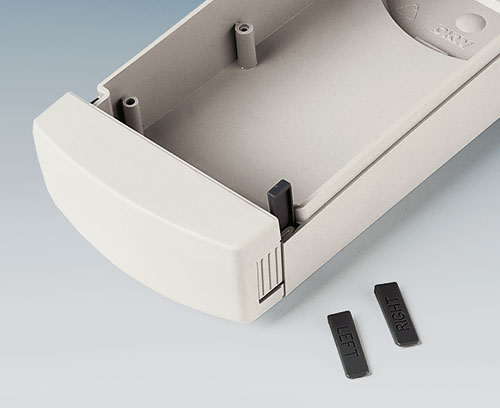

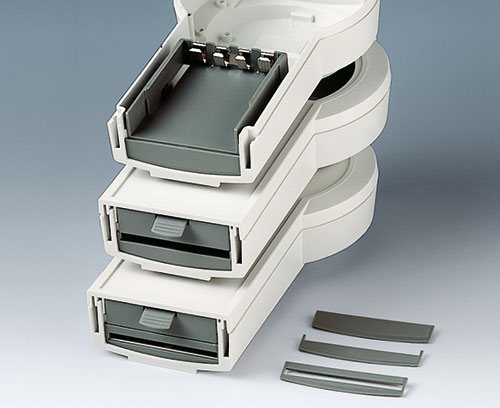

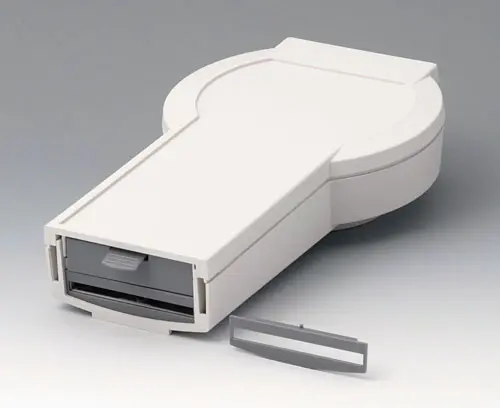

end plates for electronic area (M/L)

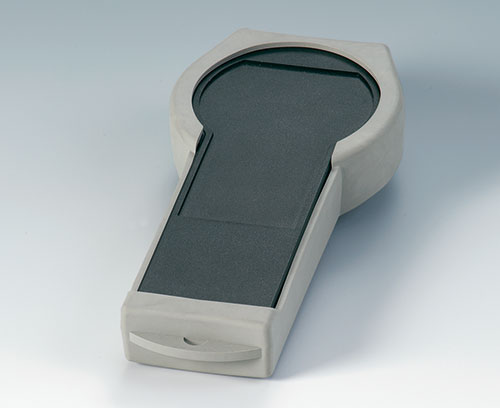

protector S

  • Select Versions
  • Catalog Documents
  • View Product Options

Select which version/size you want and click "select".

Variant XS
DATEC-CONTROL XS
Variant S
DATEC-CONTROL S
Variants M/L
DATEC-CONTROL M and L
