LUX CASE

Cajas Lux

Cajas para instrumentación de montaje rápido

El diseño único de nuestras CAJAS LUX proporciona gran flexibilidad en el montaje de PCBs y fácil acceso para componentes electrónicos.

  • Compuestas de 3 partes: superior, central e inferior.
  • Montaje vertical y horizontal de placas de circuito impreso – una ventaja característica de la gama de CAJAS LUX son sus guías móviles para tarjetas; las guías se encajan en la parte central y puede desplazarse horizontalmente en el raíl.
  • Las placas de circuito impreso pueden insertarse directamente desde la parte frontal; por esto, las PCBs se montan en el parte frontal.
  • Ensamblaje rápido mediante precisión; de forma opcional pueden emplearse tornillos.
  • 3 tipos:

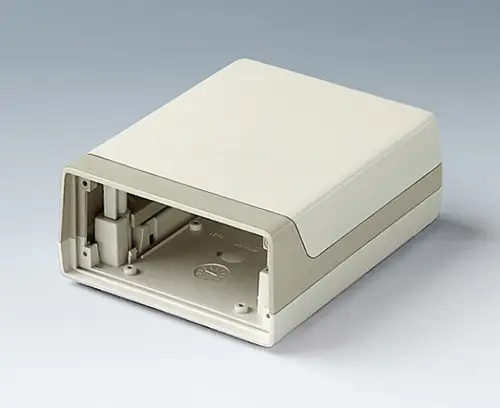

    CAJAS LUX 150 con o sin compartimiento para pilas 4 x AA o 1 x 9V
    CAJAS LUX 190 con o sin compartimiento para 4 x AA o 1 x 9V

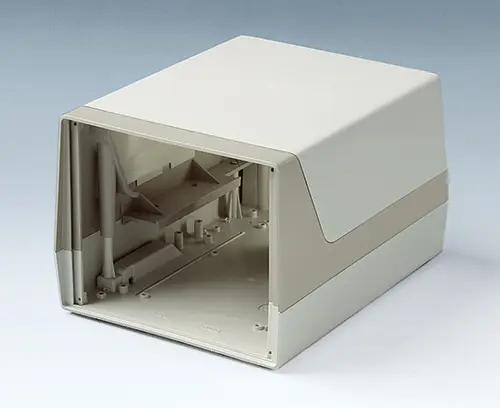

    CAJAS LUX 230 con o sin manillar y ranuras de ventilación.
  • Combinación de 2 colores: blanco roto/gris pálido; Bajo pedido, otros colores en sintonía con la imagen corporativa.
  • _______ de tensión de cable en los modelos sin compartimiento para pilas.
  • Patas antivuelco como accesorio para una inclinación ergonómica.
  • El volumen de entrega incluye 4 pies de goma para un apoyo seguro.
  • Panel frontal de aluminio accesorio disponibles en 2 versiones: montaje atornillado o deslizante.
  • Categoría de protección < IP 40
  • Cabezales de sujeción internos para placas de circuito impreso, etc..

Application fields

  • Dispositivos de medición en medicina y laboratorios
  • Dispositivos de mando y regulación
  • Periféricos informáticos
  • Dispositivos de almacenamiento
  • Selección de todos los artículos
  • Accesorios
  • Modificaciones específicas del cliente
A9912637 LUX CASE 150, Vers. I

A9912637

LUX CASE 150, Vers. I Three-piece case with secure snap-in mechanism. Additional screwing (assembly kit as accessory) possible if required. Fixing towers or card guide (accessory) for PCB assembly.

Version Without battery compartment, socket for cable strain relief

Supply 1 top, center section, base and assembly kit

Cerrar

A9912637

LUX CASE 150, Vers. I
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
118x150x57mm
A9912687 LUX CASE 150, Vers. II

A9912687

LUX CASE 150, Vers. II Three-piece case with secure snap-in mechanism.Additional screwing (assembly kit as accessory) possible if required.Fixing towers or card guide (accessory) for PCB assembly.

Version With battery compartment for 4 x 1.5 V mignon cells (AA), accessible from the outside, snap-in place cover

Supply 1 top, center section, base, battery compartment lid, assembly kit

Cerrar

A9912687

LUX CASE 150, Vers. II
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
118x150x57mm
A9915737 LUX CASE 190, Vers. I

A9915737

LUX CASE 190, Vers. I Three-piece case with secure snap-in mechanism. Additional screwing (assembly kit as accessory) possible if required. Fixing towers or card guide (accessory) for PCB assembly.

Version Without battery compartment, socket for cable strain relief

Supply 1 top, center section, base and assembly kit

Cerrar

A9915737

LUX CASE 190, Vers. I
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
148x190x67mm
A9915787 LUX CASE 190, Vers. II

A9915787

LUX CASE 190, Vers. II Three-piece case with secure snap-in mechanism. Additional screwing (assembly kit as accessory) possible if required. Fixing towers or card guide (accessory) for PCB assembly.

Version With battery compartment for 4 x 1.5 V mignon cells (AA), accessible from outside, snap-in place cover

Supply 1 top, center section, base, battery compartment lid, assembly kit

Cerrar

A9915787

LUX CASE 190, Vers. II
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
148x190x67mm
A9917837 LUX CASE 230, Vers. I

A9917837

LUX CASE 230, Vers. I Three-piece case with secure snap-in mechanism. Additional screwing (assembly kit as accessory) possible if required. Fixing towers or card guide (accessory) for PCB assembly.

Version Without ventilation slots, with pillars for strain relief

Supply 1 top, center section, base and assembly kit

Cerrar

A9917837

LUX CASE 230, Vers. I
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
173x230x136mm
A9917847 LUX CASE 230, Vers. II

A9917847

LUX CASE 230, Vers. II Three-piece case with secure snap-in mechanism. Additional screwing (assembly kit as accessory) possible if required. Fixing towers or card guide (accessory) for PCB assembly.

Version With ventilation slots, with pillars for strain relief

Supply 1 top, center section, base and assembly kit

Cerrar

A9917847

LUX CASE 230, Vers. II
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
173x230x136mm
A9917857 LUX CASE 230, Vers. III

A9917857

LUX CASE 230, Vers. III Three-piece case with handle. Push button mechanism with 30° indexing. Additional screwing (assembly kit as accessory) possible if required. Fixing towers or card guide (accessory) for PCB assembly.

Version Without ventilation slots and with handle, with pillars for strain relief

Supply 1 top, center section, base, handle and assembly kit

Cerrar

A9917857

LUX CASE 230, Vers. III
Producto añadido a su lista
ABS (UL 94 HB)
off white/pebble grey RAL 9002/7032
173x230x136mm
A9917877 LUX CASE 230, Vers. IV

A9917877

LUX CASE 230, Vers. IV Three-piece case with handle. Push button mechanism with 30° indexing. Additional screwing (assembly kit as accessory) possible if required. Fixing towers or card guide (accessory) for PCB assembly.

Version With ventilation slots and handle, with pillars for strain relief

Supply 1 top, center section, base, handle and assembly kit

Cerrar

A9917877

LUX CASE 230, Vers. IV
Producto añadido a su lista
ABS (UL 94 HB)
off white/pebble grey RAL 9002/7032
173x230x136mm
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Cerrar

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Producto añadido a su lista
A0350007 Tilt foot

A0350007

Tilt foot The tilt foot is used for canting the unit. It can be locked into the case bottom and is retractable.

Supply 1 tilt foot

Cerrar

A0350007

Tilt foot
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
A0350008 Tilt foot

A0350008

Tilt foot The tilt foot is used for canting the unit. It can be locked into the case bottom and is retractable.

Supply 1 tilt foot

Cerrar

A0350008

Tilt foot
Producto añadido a su lista
ABS (UL 94 HB)
pebble grey RAL 7032
A9190013 Set of battery clips, 4 x AA

A9190013

Set of battery clips, 4 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 2 double contact left, 1 single contact positive, 1 single contact negative

Cerrar

A9190013

Set of battery clips, 4 x AA
Producto añadido a su lista
Steel
nickel-plated
A9199000 Card guide

A9199000

Card guide Variable positioning for PCBs. Usable for all versions of LUX series. The card guide snaps in the middle section and is horizontally movable.

Supply 1 card guide

Cerrar

A9199000

Card guide
Producto añadido a su lista
ABS (UL 94 HB)
pebble grey RAL 7032
A9199003 Assembly kit

A9199003

Assembly kit Screws for case assembly (for additional locking).

Supply 4 screws

Cerrar

A9199003

Assembly kit
Producto añadido a su lista
A9199004 Assembly kit

A9199004

Assembly kit Screws for front panel (A9199122).

Supply 4 screws

Cerrar

A9199004

Assembly kit
Producto añadido a su lista
A9199005 Strain relief

A9199005

Strain relief Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.

Supply 1 strain relief device, 2 screws

Cerrar

A9199005

Strain relief
Producto añadido a su lista
PA 6
volcano
A9199006 Assembly kit

A9199006

Assembly kit Screws for front panel (A9199172).

Supply 4 screws

Cerrar

A9199006

Assembly kit
Producto añadido a su lista
A9199121 Front panel 150

A9199121

Front panel 150 Front panel for slide-in for LUX CASE 150.

Supply 1 front panel

Cerrar

A9199121

Front panel 150
Producto añadido a su lista
Aluminium
matt anodised
108x52,8x1,5mm
A9199122 Front panel 150

A9199122

Front panel 150 Front panel for screw fixing for LUX CASE 150.

Supply 1 front panel

Cerrar

A9199122

Front panel 150
Producto añadido a su lista
Aluminium
matt anodised
106,3x50,4x2mm
A9199151 Front panel 190

A9199151

Front panel 190 Front panel for slide-in for LUX CASE 190.

Supply 1 front panel

Cerrar

A9199151

Front panel 190
Producto añadido a su lista
Aluminium
matt anodised
134x62,5x1,5mm
A9199171 Front panel 230

A9199171

Front panel 230 Front panel for slide-in for LUX CASE 230.

Supply 1 front panel

Cerrar

A9199171

Front panel 230
Producto añadido a su lista
Aluminium
matt anodised
131,5x158,2x1,5mm
A9199172 Front panel 230

A9199172

Front panel 230 Front panel for screw fixing for LUX CASE 230.

Supply 1 front panel

Cerrar

A9199172

Front panel 230
Producto añadido a su lista
Aluminium
matt anodised
128,4x152,3x2mm
A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

Cerrar

A9250250

Battery spacer
Producto añadido a su lista
PE foam
50x25x4mm

Opciones de productos para Cajas Lux

¿Qué necesita en su producto personalizado? En caso necesario, le suministramos las cajas y botones giratorios listas para el montaje con todas las modificaciones y acabados precisos.
