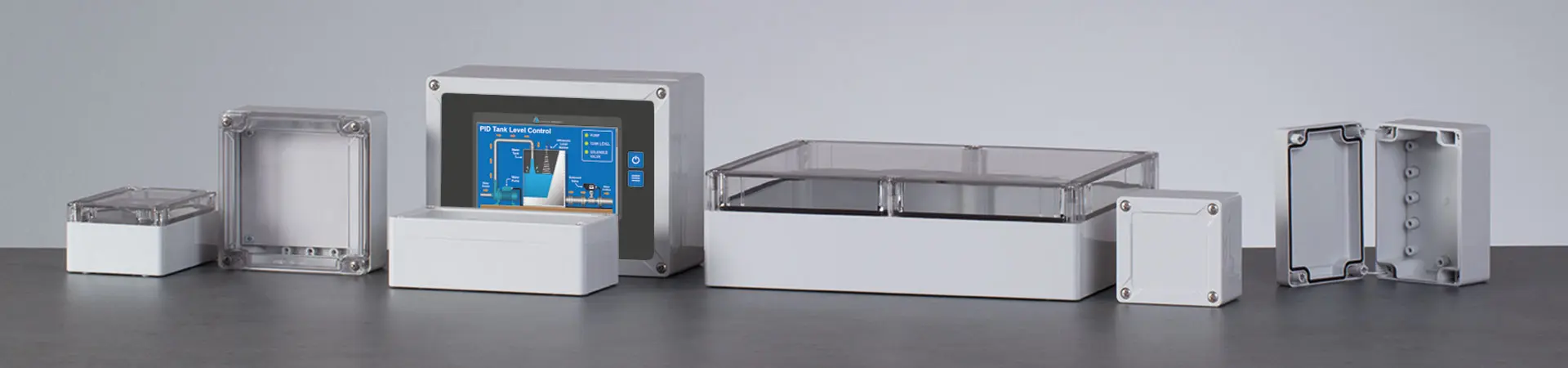

IN-BOX

Tough Industrial Enclosures

As enclosures for terminal installations, as well as for electronics equipment, the IN-BOX series offers versatile options for electrical and electronics engineers.

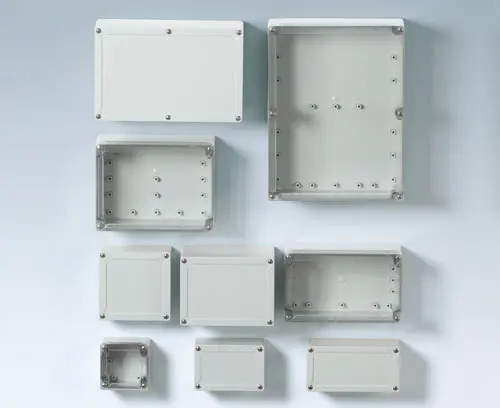

  • nine base enclosures with high gloss surfaces and different heights
  • two standard materials: ABS (UL 94 HB) or PC (V-2);
    the complete enclosures in PC comply with fire safety standard UL 94 5V (better than V-0), although the material only has the classification V-2
  • high protection classes IP 66/67; sealing gasket pre-foamed in the top
  • high impact strength IK07 (ABS) and IK08 (PC)
  • top parts in case colour or transparent

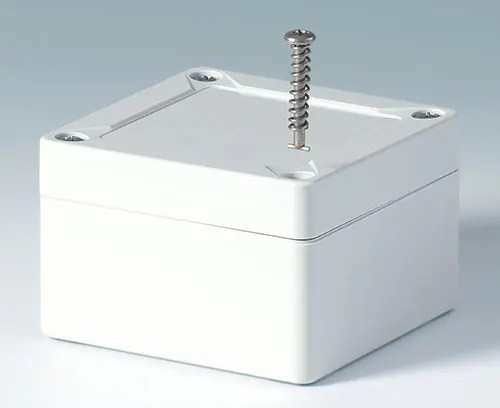

  • efficient quarter-turn lid screws in stainless steel

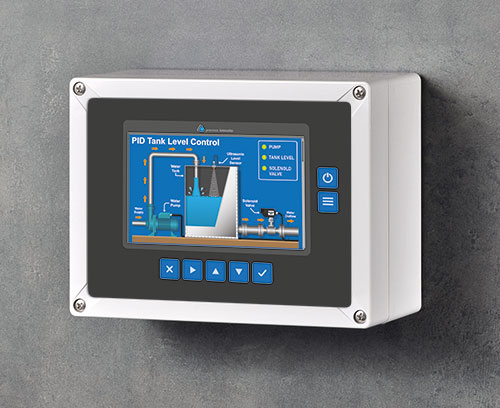

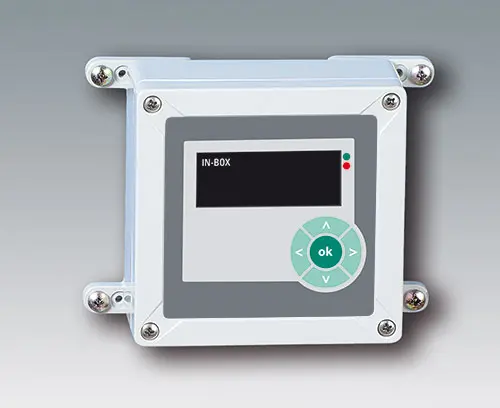

  • recessed operating area for protecting a membrane keypad or decorative foil/label

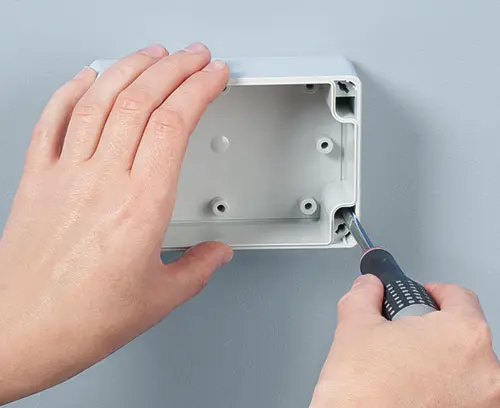

  • direct wall mounting or exterior wall mounting with wall mounting brackets; if required an internal hinge kit can be supplied as an accessory

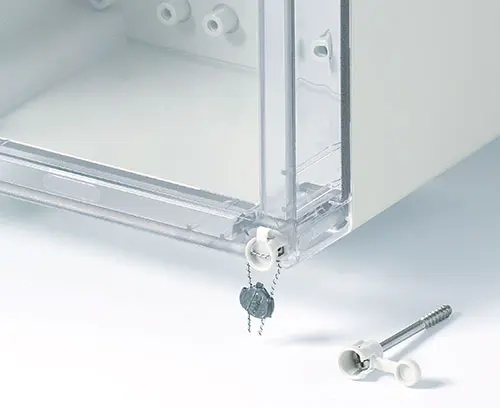

  • optional security kit for use with lead tags

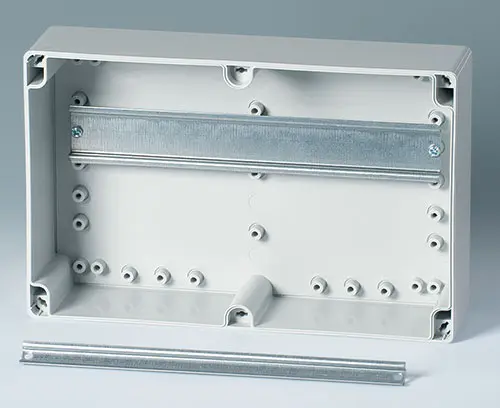

  • DIN rails and mounting plates for individual installation and configurations
  • internal screw pillars for PCBs, DIN rails and mounting plates

Applications

Ideal for industrial electronics such as digital and analogue instruments, sensors, interfaces and security systems. Also, for electrical applications such as heating, climate and ventilation systems, machine building and construction equipment.

  • Photo Gallery

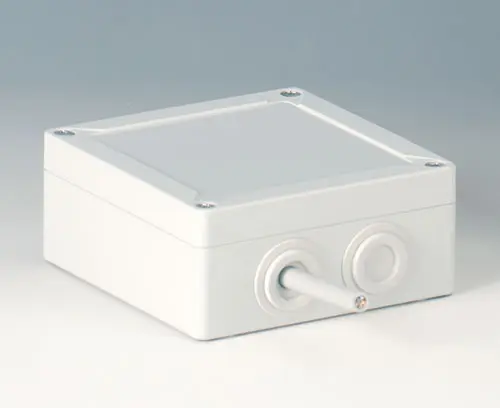

grommets (accessory)

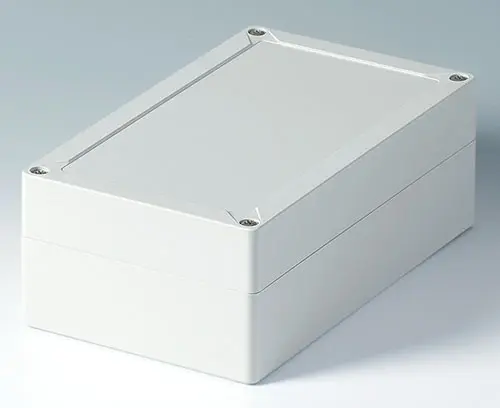

solid enclosure in ABS (UL 94 HB)

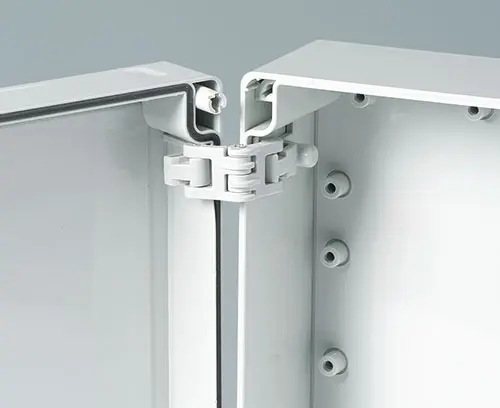

internal hinge kit (accessory)

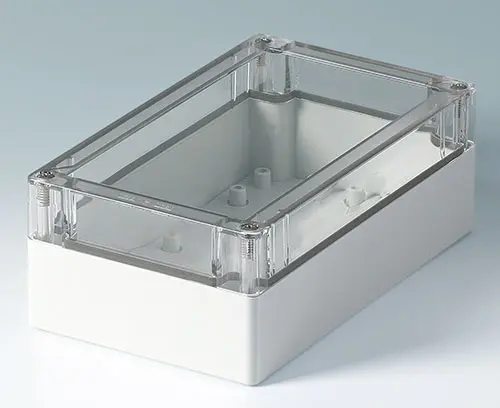

IN-BOX with transparent lid

  • Select Versions
  • Catalog Documents

Select which version/size you want and click "select".

ABS (UL 94 HB)
IN-BOX ABS
ABS/PC transparent lid
IN-BOX ABS/PC transparent
PC
IN-BOX PC
